PosiTest-HHD High voltage DC Pulse Holiday Detector

Made in USA
PosiTest HHD High voltage Holiday Detector
Click images to enlarge.

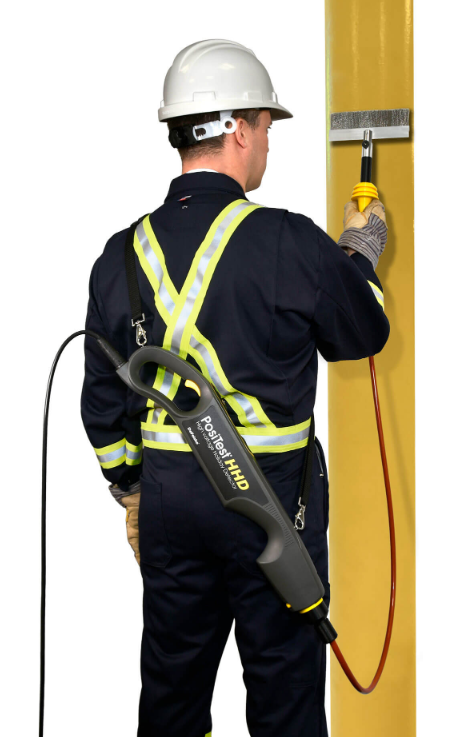

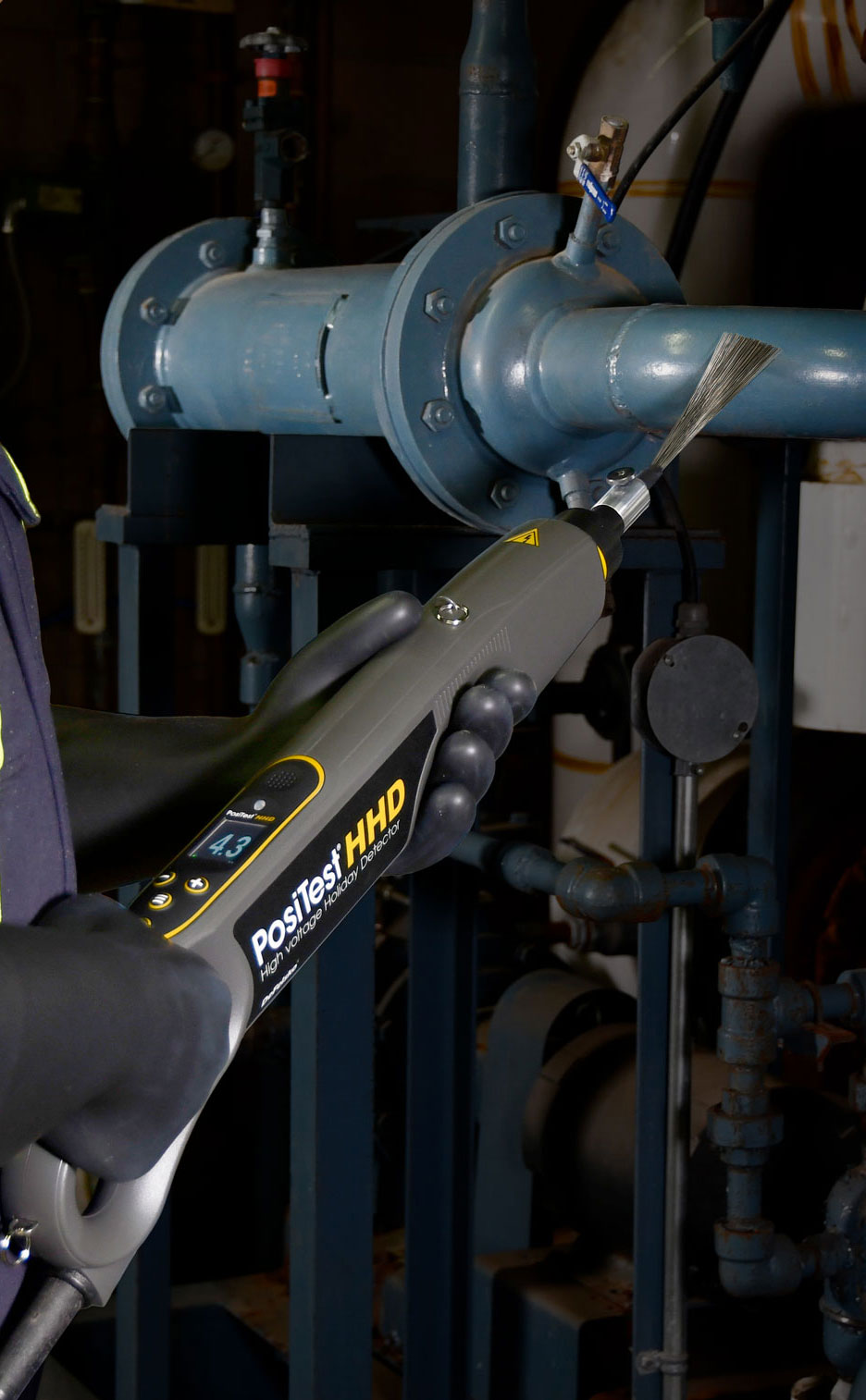

The PosiTest® HHD is a high-voltage DC Pulse Holiday Detector locate small defects and discontinuities (called “pinholes” or “holidays”) in a protective coating system applied to a conductive substrate. With adjustable output from 0.5-35kV the HHD can be used to inspect non-conductive coatings thicker than 500 μm (20 mils). Audible and visual alerts notify the operate when flaws are detected.

Features

  • Conforms to ASTM D4787/D5162/G62, ISO 29601, NACE SP0188/SP0274/SP0490, AS3894.1
  • Includes NIST Traceable Long Form Calibration Certificate
  • Lightweight, ergonomic design provides comfortable all-day use, reducing operator fatigue
  • Voltage calculator feature — choose one of 11 international standards, and input the coating thickness to automatically calculate the required test voltage

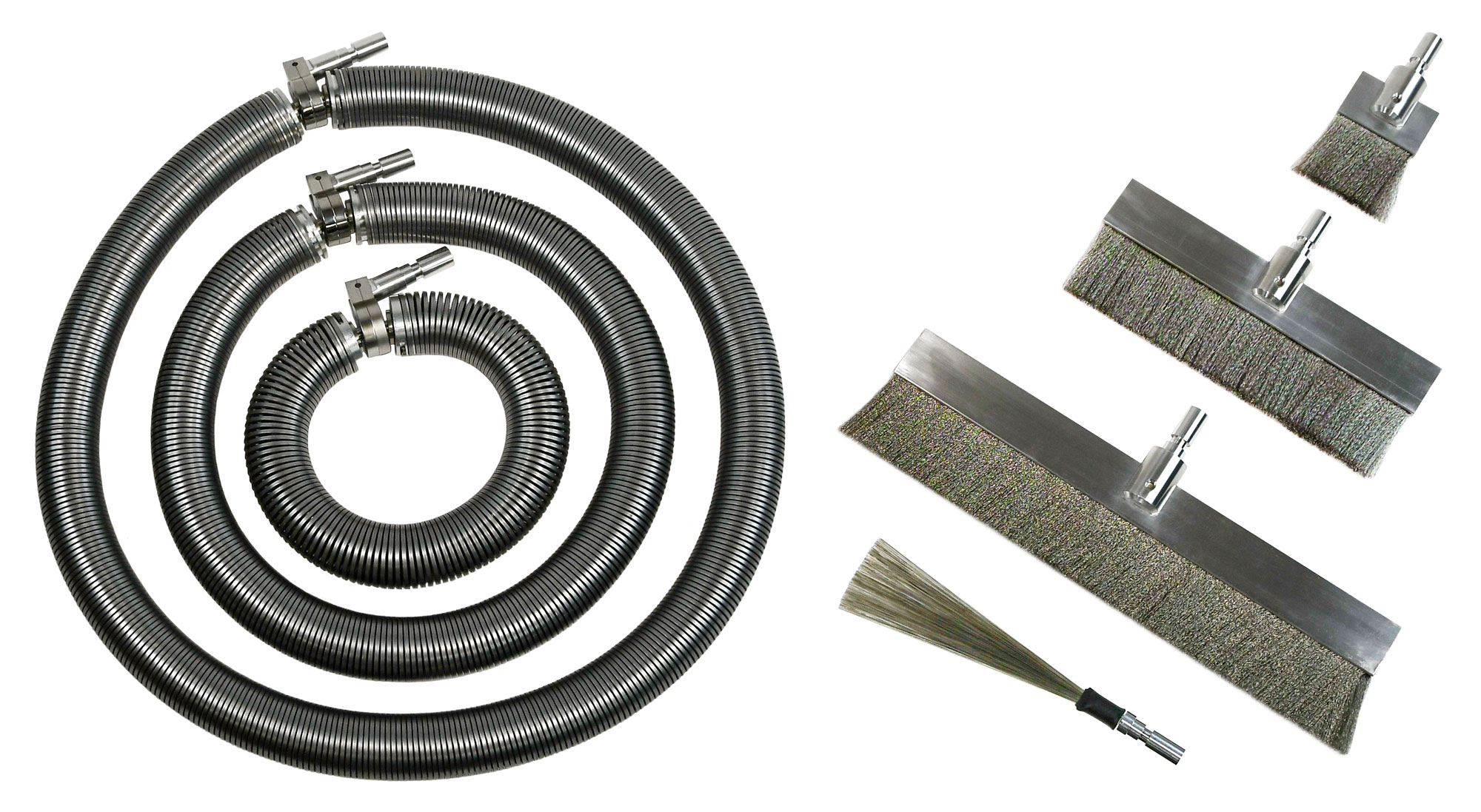

  • Choose from a wide range of rolling spring and flat wire brush electrodes or use electrodes from other manufacturers with optional adaptors — custom sizes available upon request

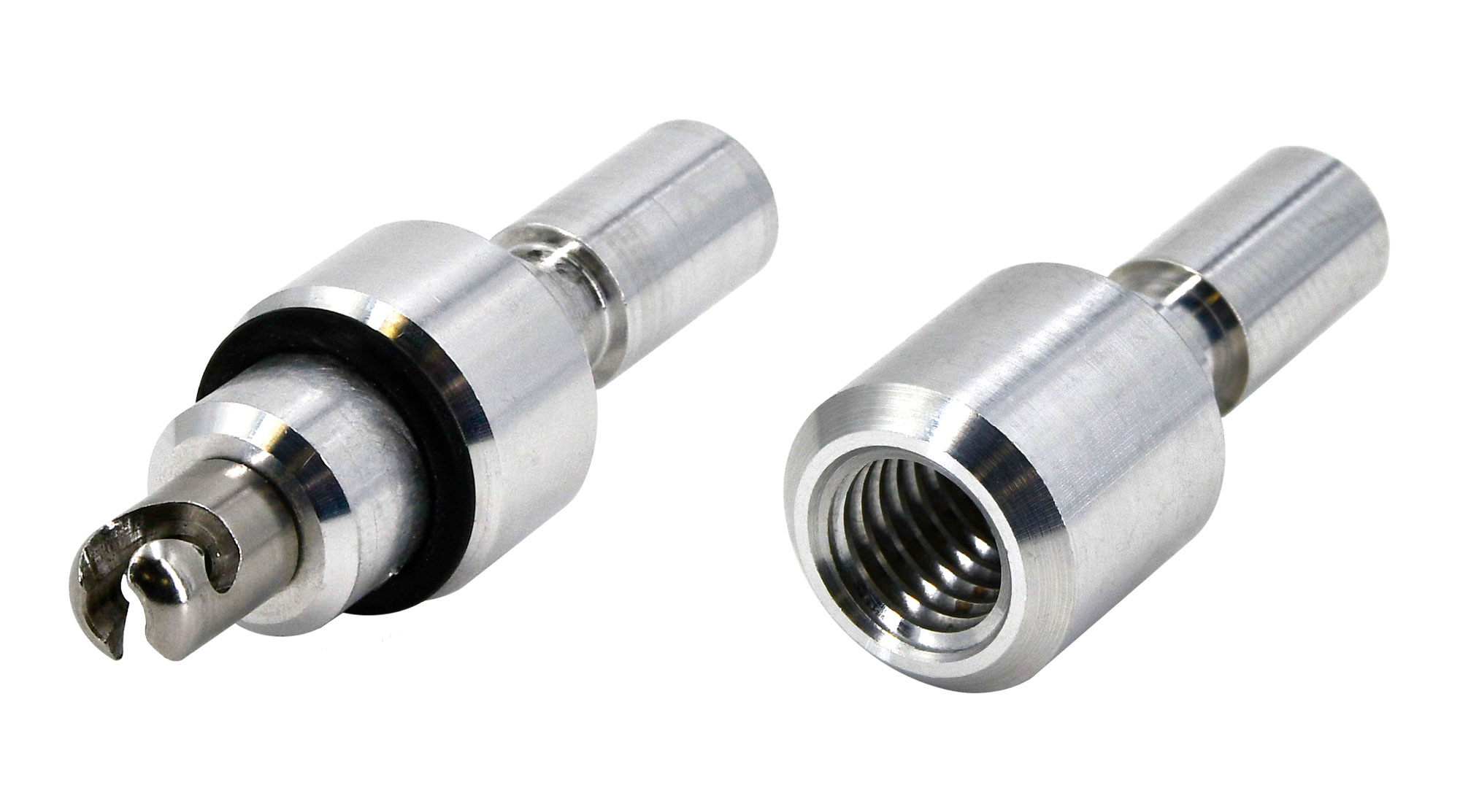

  • Industry-standard connectors and adaptors for compatibility with nearly all existing electrodes
  • Rugged, environmentally sealed ABS plastic enclosure is weatherproof, dustproof and shockproof
  • Included Pelican Storm case with custom foam inserts for superior protection
  • Two year warranty
  • Removable Smart lithium-ion battery provides power for up to 40 hours of continuous measurement
  • 7.6 m (25') ground (earth) cable with locking connector and spring clamp
  • Shock proof/creep proof — internally sealed to minimize creep distance to high voltage components. Designed in accordance with IEC 61010-1
  • Built-in certified voltmeter (crest meter, jeep meter) displays and regulates the voltage at the electrode

PosiTest HHD Video

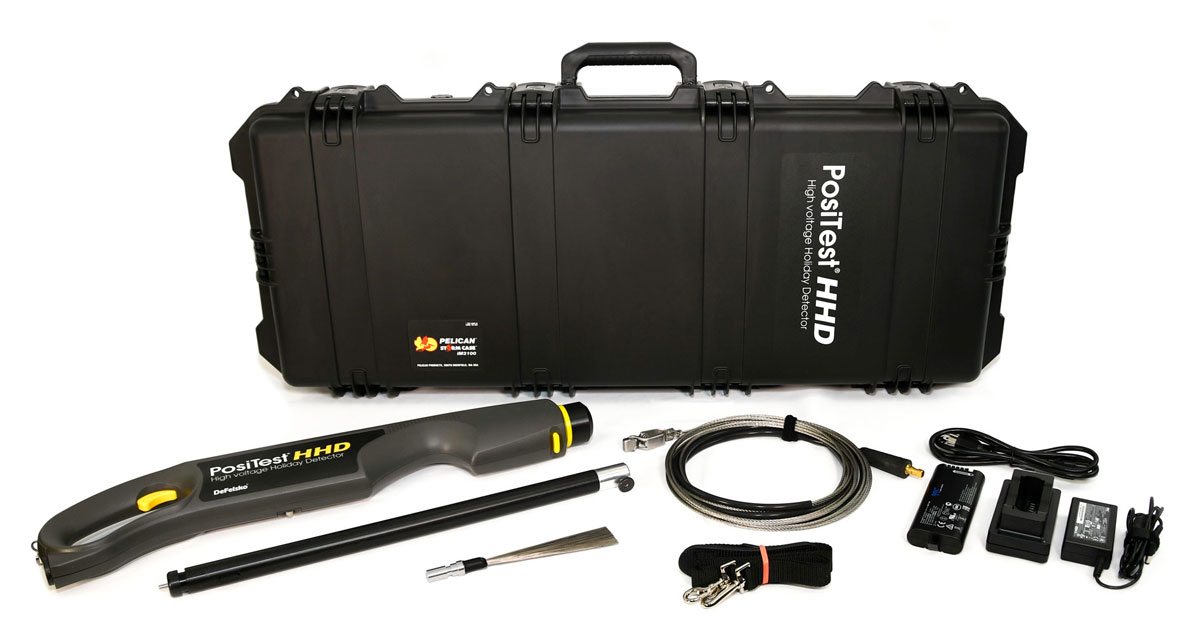

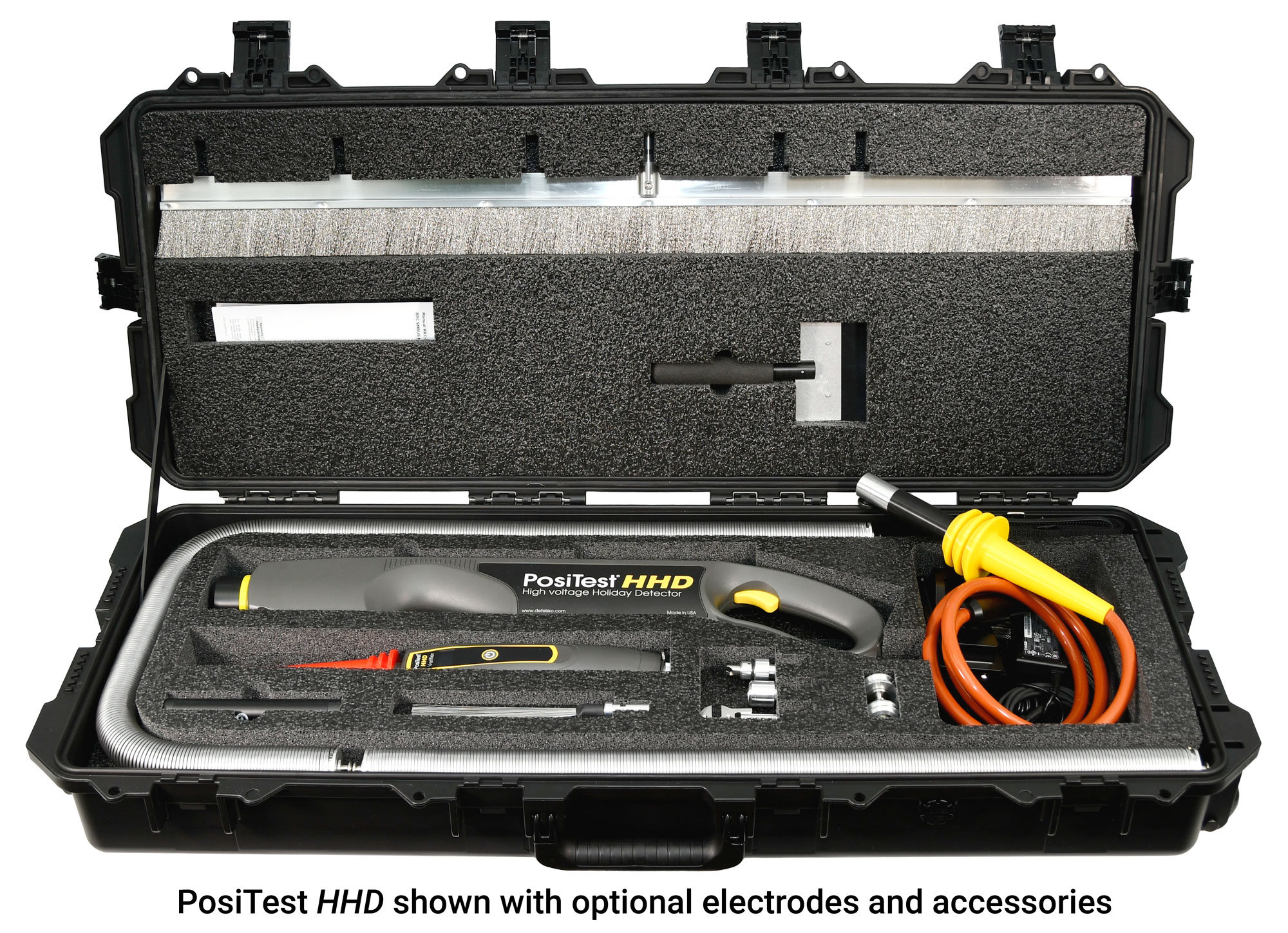

Complete Kit

PosiTest HHD is supplied as a complete kit including:
  • 7.6 m (25') ground (earth) cable with ground clip
  • Li-ion battery pack with built-in charge state indicator
  • Smart charger with universal AC voltage input
  • Stainless steel fan brush
  • 50 cm (20" ) extension rod with thumb screw
  • Shoulder strap
  • Instruction Manual
  • Durable Pelican Storm case
  • Long Form Certificate of Calibration traceable to NIST
  • Two year warranty

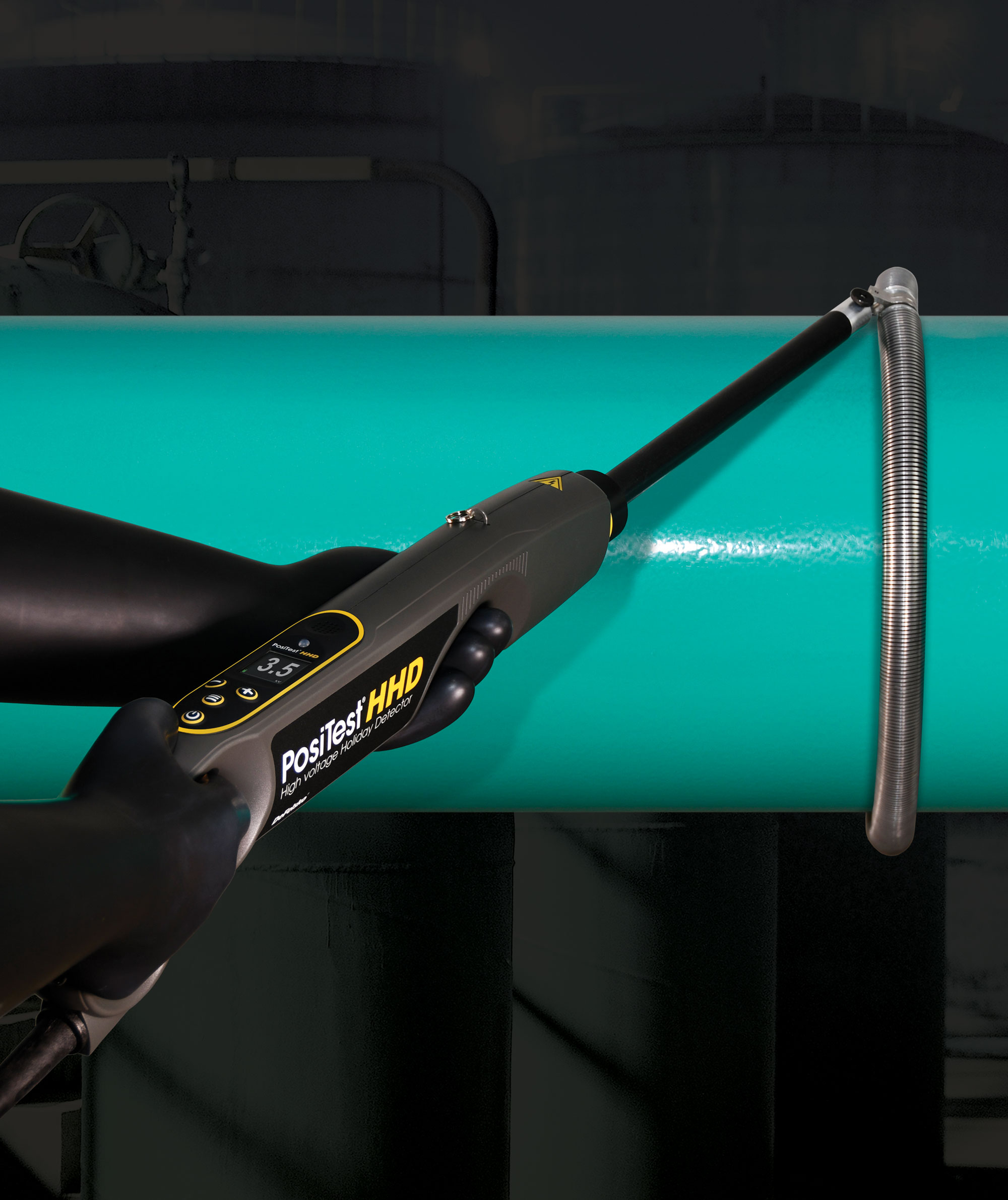

Coil Electrodes

PosiTector HHD Coils

Flat Wire Brush Electrodes

Flat Wire Brush Electrodes

Specifications

Output Voltage Range0.5 – 35 kV
Output Voltage Adjustment0.5 kV – 1 kV: 10 Volt Steps
1 kV – 35 kV: 100 Volt Steps
Output Accuracy+/-5%
Pulse Duration10 µs
Pulse Repetition Rate30 Hz
Coating Thickness Rangeup to 20 mm / 780 mils (Based on NACESP0274-2011 recommendations)
Typical Battery LifeBased on selected voltage and load
Ø 12” Rolling Spring @ 10kV, 40 hrs.
Ø 40” Rolling Spring @ 10kV, 30 hrs.
Operating Temperature-20° to 60°C (-4° to 140°F)

Downloads

Buy Now

Item Description Price
PosiTest HHD DC Pulse Holiday Detector Complete Kit
$3,595.00
Accessories
HHDWAND
Handheld Wand for PosiTest HHD DC Pulse Holiday Dector
$245.00
HHDBATTERY
Replacement Battery for PosiTest HHD DC Pulse Holiday Detector
$145.00
HHDPCWIADPT
PCWI Adaptor for PosiTest HHD DC Pulse Holiday Detector
$30.00
HHDTRADPT
Tinker & Rasor Adaptor for PosiTest HHD DC Pulse Holiday Detector
$50.00
HHDEXTRODS
Extension Rod 127mm/5" for PosiTest HHD DC Pulse Holiday Detector
$75.00
HHDTHMBSCR
Ext Rod Thumb Screw (3/pk) for PosiTest HHD DC Pulse Holiday Detector
$20.00
HHDGND25
Ground Cable 7.5m/25' for PosiTest HHD DC Pulse Holiday Detector
$95.00

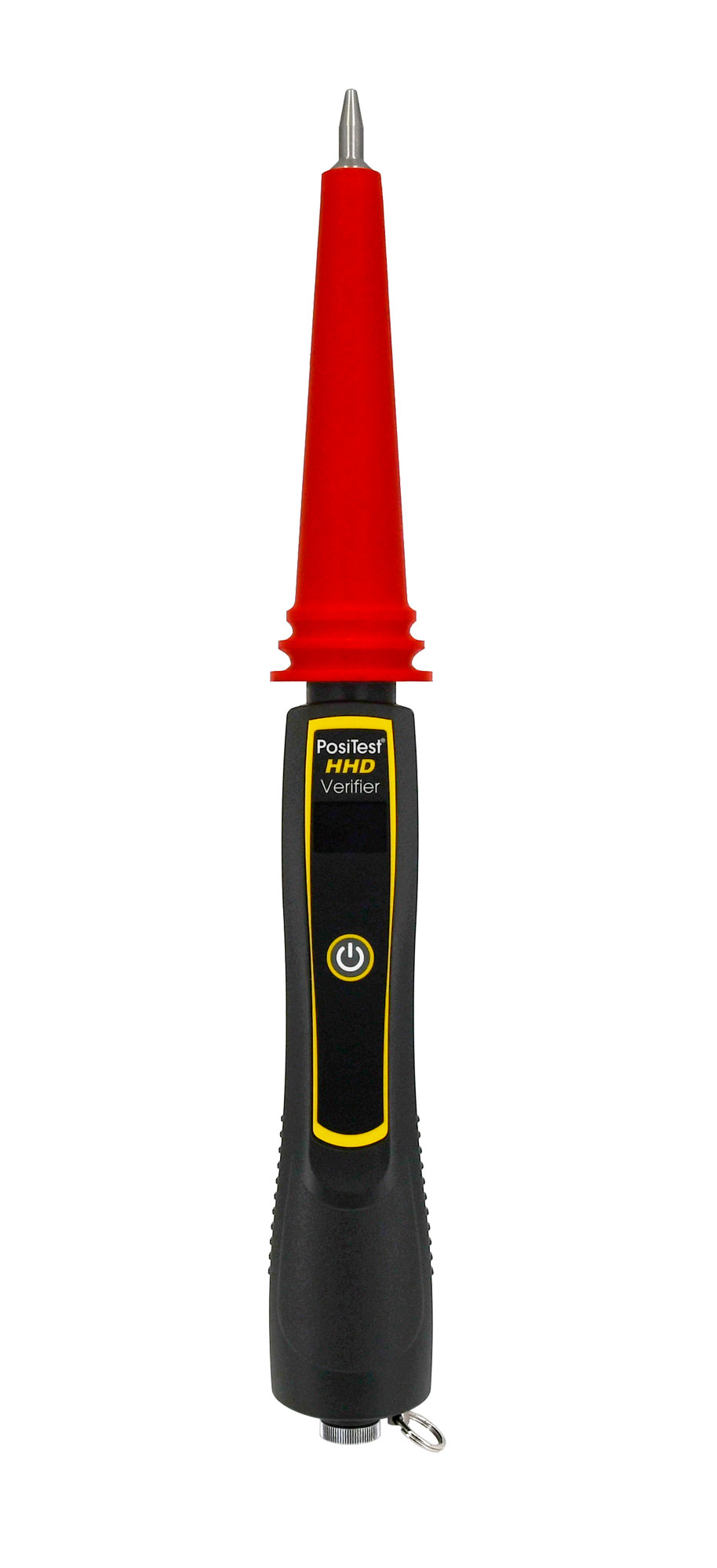

HHDVERIFY
PosiTest HHD Verifer for PosiTest HHD DC Pulse Holiday Detector
$595.00
ELECTRODES:
HHDFLTBRSH2
Flat Brush Electrode 51mm/2" for PosiTest HHD DC Pulse Holiday Detector
$75.00
HHDFLTBRSH6
Flat Brush Electrode 152mm/6" for PosiTest HHD DC Pulse Holiday Detector
$85.00
HHDFLTBRSH8
Flat Brush Electrode 203mm/8" for PosiTest HHD DC Pulse Holiday Detector
$110.00
HHDFLTBRSH12
Flat Brush Electrode 305mm/12" for PosiTest HHD DC Pulse Holiday Detector
$150.00
HHDFLTBRSH24
Flat Brush Electrode 610mm/24" for PosiTest HHD DC Pulse Holiday Detector
$300.00
HHDFLTBRSH36
Flat Brush Electrode 914mm/36" for PosiTest HHD DC Pulse Holiday Detector
$450.00
HHDFLTBRSH48
Flat Brush Electrode 1219mm/48" for PosiTest HHD DC Pulse Holiday Detector
$600.00
HHDFANBRSH
Fan Brush Electrode 541mm/2" for PosiTest HHD DC Pulse Holiday Dectector
$25.00
HHDPADDLE
Conductive Paddle Electrode 102mm/4" for PosiTest HHD DC Pulse Holiday Dectector
$75.00
HHDSPRING4
Rolling Spring Coil Electrode 102mm/4" for PosiTest HHD DC Pulse Holiday Dectector requires HHDCONNECT
$80.00
HHDSPRING6
Rolling Spring Coil Electrode 152mm/6" for PosiTest HHD DC Pulse Holiday Dectector requires HHDCONNECT
$90.00
HHDSPRING8
Rolling Spring Coil Electrode 203mm/8" for PosiTest HHD DC Pulse Holiday Dectector requires HHDCONNECT
$100.00
HHDSPRING12
Rolling Spring Coil Electrode 304mm/12" for PosiTest HHD DC Pulse Holiday Dectector requires HHDCONNECT
$120.00
HHDSPRING14
Rolling Spring Coil Electrode 356mm/14" for PosiTest HHD DC Pulse Holiday Dectector requires HHDCONNECT
$130.00
HHDSPRING16
Rolling Spring Coil Electrode 406mm/16" for PosiTest HHD DC Pulse Holiday Dectector requires HHDCONNECT
$140.00
HHDSPRING20
Rolling Spring Coil Electrode 508mm/20" for PosiTest HHD DC Pulse Holiday Dectector requires HHDCONNECT
$160.00
HHDSPRING24
Rolling Spring Coil Electrode 610mm/24" for PosiTest HHD DC Pulse Holiday Dectector requires HHDCONNECT
$180.00
HHDCONNECT
Spring Connector, for PosiTest HHD DC Pulse Holiday Dectector, required for SPRING COIL ELECTRODES
$95.00

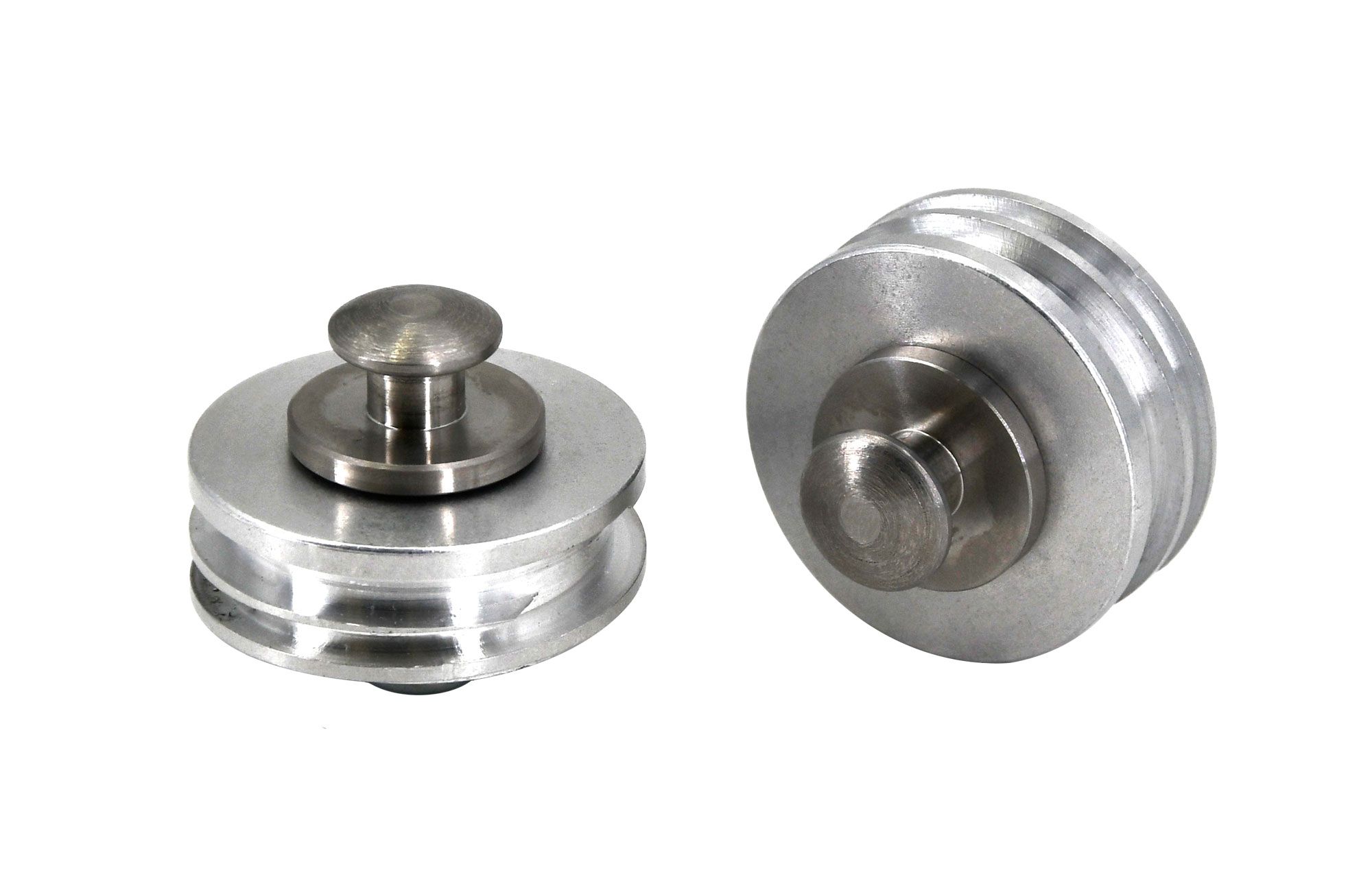

HHDCOUPLER
Spring Coupler, 2-pack replacement for PosiTest HHD DC Pulse Holiday Dectector
$60.00
