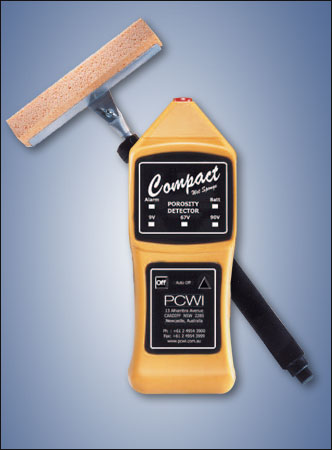

PHD Wet Sponge Pin Hole Detector

Click images to enlarge.
Measuring Ranges: 0 to 20 mils (0 to 500 µm)

Test Voltage: Selectable 9, 67.5 or 90V

Thin Film Porosity Testing.
These units are also known as wet sponge testers, low voltage holiday detectors, low voltage porosity detectors or pin hole detectors.

Features

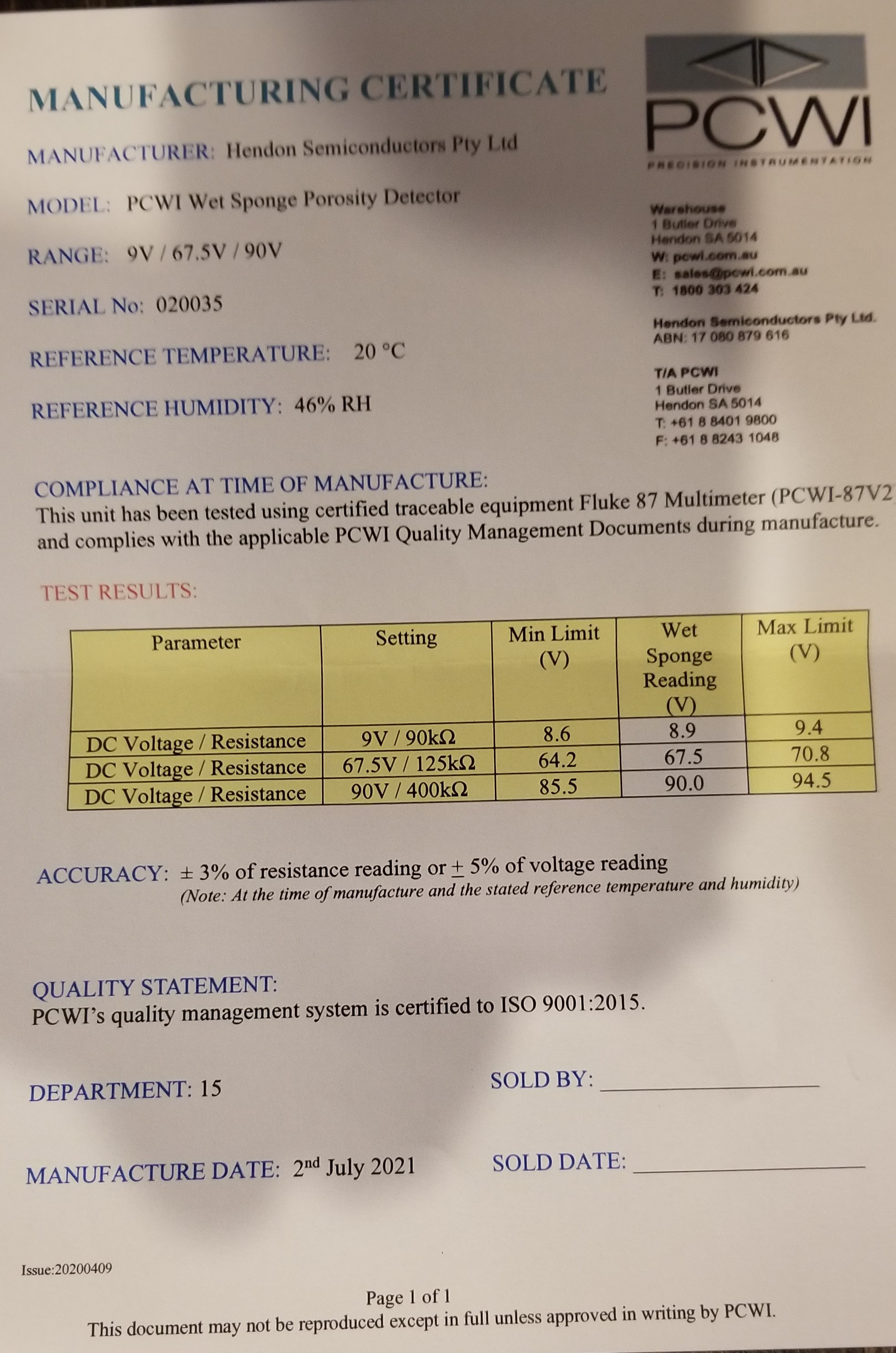

  • Manufacturing Certificate
  • LED display of voltage
  • Large probe head (9" x 1.57"/230 x 40mm) and wider sponge gives faster tests. Smaller probe heads available.
  • Low battery condition LED indicator
  • Internally mounted 9 Volt battery
  • The PCWI wet sponge tester comes with selectable 9, 67.5 or 90V test voltage
  • The PCWI wet sponge tester comes with selectable 9, 67.5 or 90V test voltage
  • Earphone jack to allow testing in noisy environments (earphone not supplied)

Specifications

Test Voltage: Selectable 9, 67.5 or 90V
Range: 0 - 20 mils (500µm)
Operatng Temperature: 32 to + 122°F (0 to +50°C)
Telescopic Probe Length: 14" to 47" (350 to 1200 mm)
Power Supply: 9V battery
Dimensions: 8.25" x 3" x 1.25" (210 x 75 x 35 mm)
Alarm: Audible and visual
Battery Condition: Low battery LED indicator
Weight: 13 oz (350g)

Complete Kit

The Thin Film (Wet Sponge) Pinhole Kit comprises the detector, telescopic probe handle with sponge, 23-feet (7m) Earth lead and clamp, carrying case, operating instructions with Conformance Certificate.

Related Products

Click image for more info
High Voltage Direct Current DC Holiday Detector
- Regulated DC voltage
- Voltage ranges of 0 to 15kV or 0 to 30kV, fully adjustable
- Constant test current
Click image for more info
High Voltage Pulse Holiday Detector
- 'Wet' or 'dry' condition sensitivity control on P20 and P40 porosity detectors
- Voltage ranges of 2000 to 20kV or 40kV, fully adjustable

Downloads

Buy Now

Item Description Price
Wet Sponge Tester Kit - 0789 - PHD
$473.00
Accessories
SPONGE4PK230MM
230mm Sponge only, pack of 4 Large - 0715
$53.00
SPONGEHOLD230MM
230mm Sponge, including aluminum holder - 0717
$100.00
