FTS-MG Force Test System

Made in USA
Click images to enlarge.

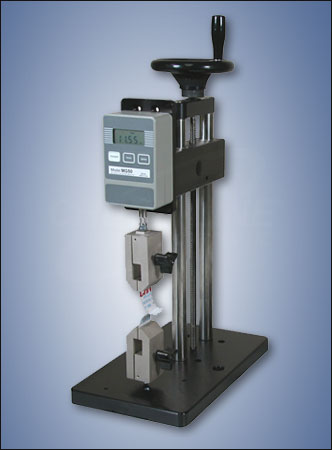

The FTS-MG is a complete Force Test System designed for compression and tensile testing of small samples. It precisely measures push pull forces as low as 0.002 lb with an accuracy of ± 0.5% full scale ±1 digit. The precision hand wheel allows fine control with greater consistency in testing results. An optional dial indicator kit displays up to 1" of displacement.

The FTS-MG consists of the MG Digital Force Gauge and ES20 Manual Hand-Wheel Test Stand.

*NOTE: Shown with optional attachments

Features

  • Mounting holes for bench mounting
  • Optional 1" [25.4mm] dial indicator travel kit
  • Display "real-time" or "peak" force
  • Push-button calibration
  • Battery life: 30 hours of continuous operation
  • Battery or AC operation
  • Large baseplate with 5 #10-32 UNF holes for fixture mounting
  • User-selected units of Pounds, Kilograms or Newtons
  • Includes NIST-Traceable calibration certificate
  • 3 Year Warranty

Force Ranges

ModelCapacityResolution
FTS-2MG2 lb
1 kg
10 N
0.002 lb
0.001 kg
0.01N
FTS-10MG10 lb
5 kg
50 N
0.01 lb
0.005 kg
0.05 N
FTS-50MG50 lb
25 kg
250 N
0.05 lb
0.02 kg
0.2 N
FTS-100MG100 lb
50 kg
500 N
0.1 lb
0.05 kg
0.5 N

Standard Attachments

Special Attachments


Dimensions

Related Products

Click image for more info
Dial Indicator / Distance Meter
- Displays up to 1" of displacement
- Resolution of 0.001"
Click image for more info
Digital Indictator / Distance Meter
- Displays up to 1" (25.4mm) of displacement
- Resolution of 0.0005" (0.01 mm)
MG force gauge
Click image for more info
MG
MG Mark-10 Digital Force Gauge
- User-selected units of Pounds, Kilograms or Newtons
es20 force test stand
Click image for more info
Mechanical Test Stand
- Mounting holes for bench mounting
- Optional 1" [25.4mm] dial indicator travel kit

Specifications

Capacity100 lb (45 kg)
Stroke9" (229mm)
Travel Rate0.06" (1.5mm) per revolution
Accuracy± 0.5% of full scale, ±1 least significant digit
Sampling Rate30 readings per second
Display4 1/2 digit LCD with .3" high characters. Indicators for low battery, units and mode of operation
PowerNon-rechargeable 9V battery or AC operation with included adapter
Battery Life30 hours of continuous use, LO BAT indicator
Sensor Deflection0.010" (0.25 mm) maximum deflection at full load
Overload Protection150% or higher
Accessories IncludedHook and Flat head
Warranty3 years

Special Attachments

* When ordering a FTS-MG test system and most grips, the G1039 coupler or any length extension rod is required in order to provide adequate clearance between the load cell shaft and the grip. Other gauge series do not require a coupler or extension rod.
