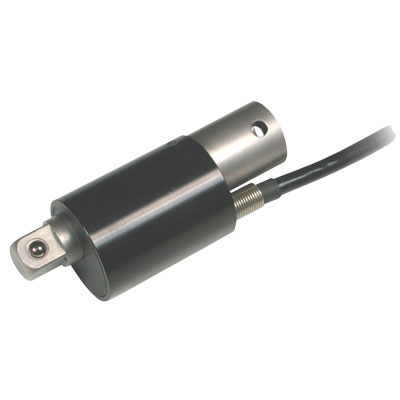

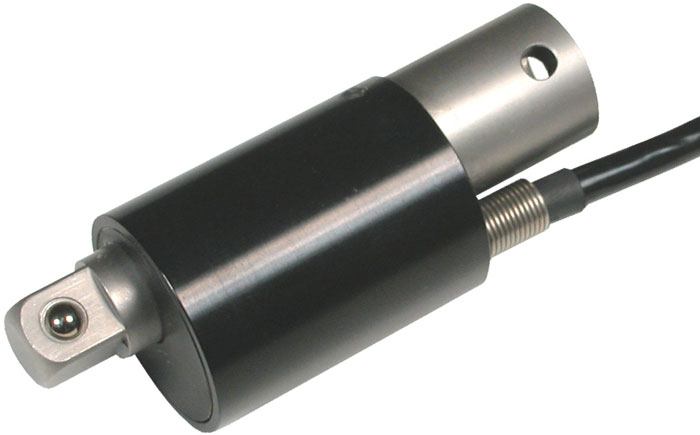

R54 Wrench Extension Torque Sensor

Made in USA
Click images to enlarge.
Note: Series R54 sensors will be gradually discontinued as inventory is depleted.
The replacement series is Series R55.

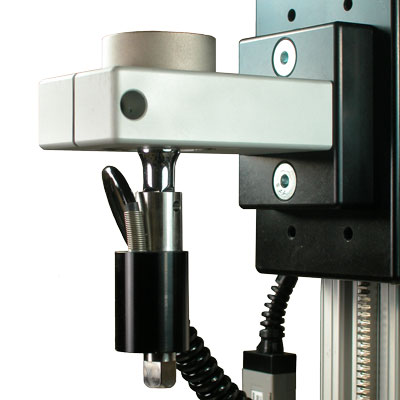

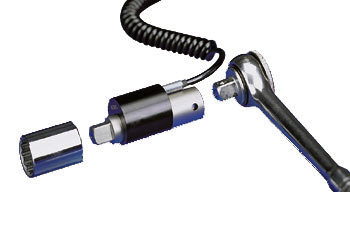

Convert any wrench to a torque tool with this sensor, or use it as a component of a torque testing system.

Features

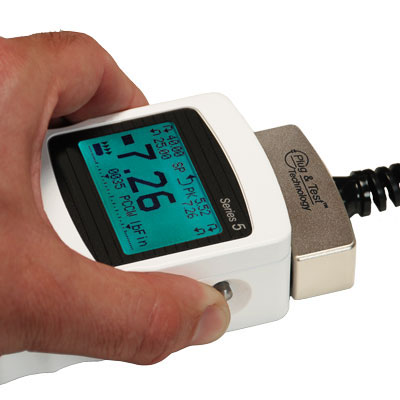

  • Compatible with the 7i, 5i and 3i digital indicators
  • Stainless steel and aluminum construction

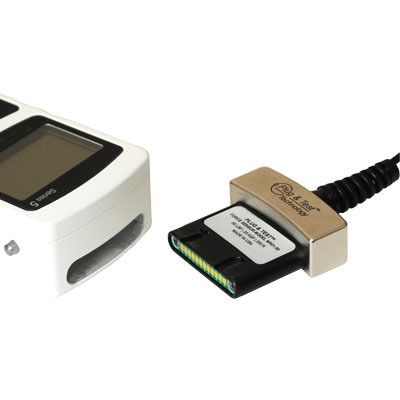

  • Unique Plug & TestTM connector holds all calibration and configuration data
  • NIST-traceable certificate of calibration included

Torque Ranges - capacity/resolution

Show with:
Model lbFin lbFft kgFmm Ncm Nm
MR54-20 20
0.02
20
0.02
1.5
0.002
N/A
230
0.2
230
0.2
220
0.2
220
0.2
2
0.002
N/A
MR54-50 50
0.05
50
0.05
4
0.005
N/A
580
0.5
580
0.5
570
0.5
570
0.5
5.7
0.005
N/A
MR54-100 100
0.1
100
0.1
8
0.01
N/A
1150
1
1150
1
1150
1
1150
1
11.5
0.01
N/A
MR54-200 200
0.2
200
0.2
16
0.02
N/A
2300
2
2300
2
2200
2
2200
2
22
0.02
N/A
MR54-400 400
0.5
400
0.5
32
0.05
N/A
4600
5
4600
5
4500
5
4500
5
45
0.05
N/A
MR54-1000 1000
1
1000
1
80
0.1
N/A
11500
10
11500
10
11000
10
11000
10
110
0.1
N/A
MR54-5000 5000
5
5000
5
400
0.5
N/A
55 kgFm
0.05 kgFm
55 kgFm
0.05 kgFm
55000
50
-
550
0.5
550
0.5
N/A = Gauge is unable to display these units

Related Products

M3i digital force indicator
Click image for more info
Force and Torque Indicator
- Interchangeable force and torque sensors through Plug & Test™technology
- USB data output
Click image for more info
Advanced Force/Torque Indicator
- 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs

Specifications

Accuracy± 0.6% of full scale ±1 digit + indicator
WeightFrom 0.6 lbs (0.27 kg) to 2 lbs (0.9 kg)
Warranty3 years
