R04 Miniature S-Beam Force Sensor

MR04 Force Sensor
Click images to enlarge.

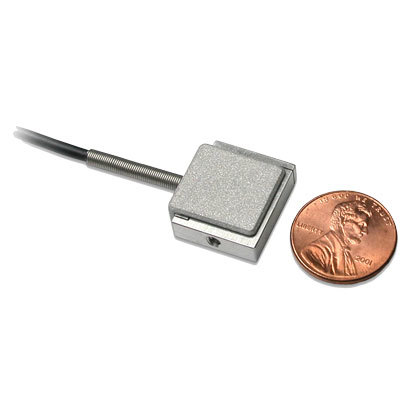

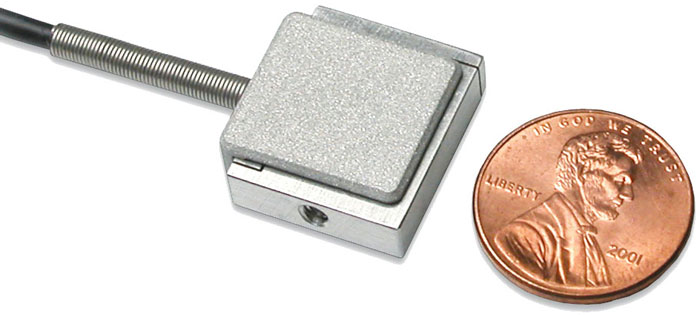

Extremely compact force measurement sensor for tensile and compressive loads in applications with limited space. The R04 is available in capacities from 0.25 lb to 100 lb (1 N to 500 N). Every capacity has the same miniature dimensions: 0.85" x 0.30" x 0.75" (21.6 mm x 7.6 mm x 19.1 mm). The sensors feature outstanding mechanical overload protection of up to 1,000% percent of full scale for most applications and threaded holes on two sides for the mounting of attachments or implements.

Features

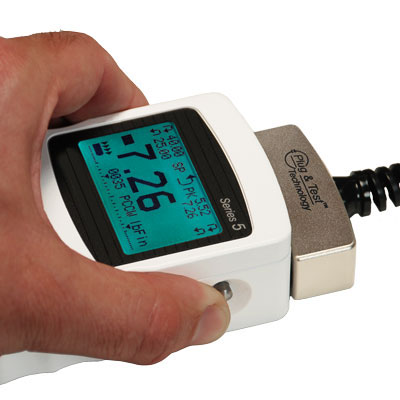

  • Compatible with the 7i, 5i and 3i digital indicators
  • Ultra-compact size
  • NIST-traceable certificate of calibration included

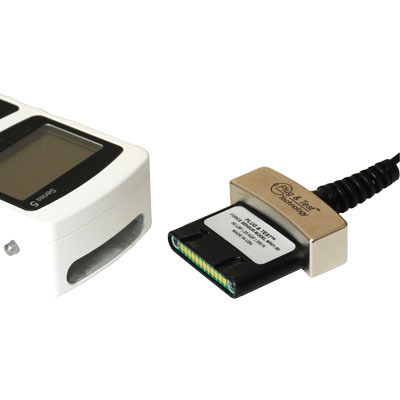

  • Unique Plug & TestTM connector holds all calibration and configuration data

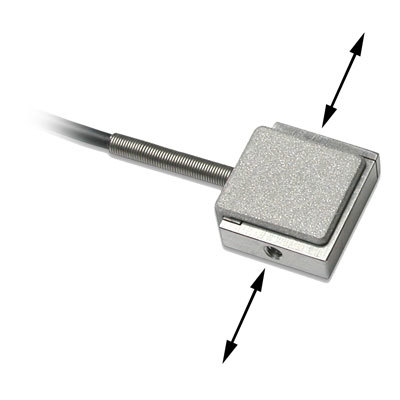

  • Measures tensile and compressive forces
  • 3 Year Warranty

Force Ranges - capacity/resolution

Show with:
Model lbf ozf gf kgf N mN
MR04-25 0.25
0.0001
0.25
0.0002
4
0.002
N/A
100
0.05
100
0.1
-- 1
0.0005
1
0.001
1000
0.5
N/A
MR04-05 0.5
0.0002
0.5
0.0005
8
0.005
N/A
250
0.1
250
0.2
-- 2.5
0.001
2.5
0.002
2500
1
N/A
MR04-2 2
0.001
2
0.002
32
0.02
N/A
1000
0.5
-
1
0.0005
1
0.001
10
0.005
10
0.01
-N/A
MR04-5 5
0.002
5
0.005
80
0.05
N/A
2500
1
-
2.5
0.001
2.5
0.002
25
0.01
25
0.02
-N/A
MR04-10 10
0.005
10
0.01
160
0.1
N/A
5000
2
-
5
0.002
5
0.005
50
0.02
50
0.05
-N/A
MR04-20 20
0.01
20
0.02
320
0.2
N/A
10000
5
-
10
0.005
10
0.01
100
0.05
100
0.1
-N/A
MR04-50 50
0.02
50
0.05
800
0.5
N/A
25000
10
-
25
0.01
25
0.02
250
0.1
250
0.2
-N/A
MR04-100 100
0.05
100
0.1
1600
1
N/A
50000
20
-
50
0.02
50
0.05
500
0.2
500
0.5
-N/A
N/A = Series 3i is unable to display these units

Related Products

M3i digital force indicator
Click image for more info
Force and Torque Indicator
- Interchangeable force and torque sensors through Plug & Test™technology
- USB data output
Click image for more info
Advanced Force/Torque Indicator
- 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
Click image for more info
Professional Force and Torque Indicator
- Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC

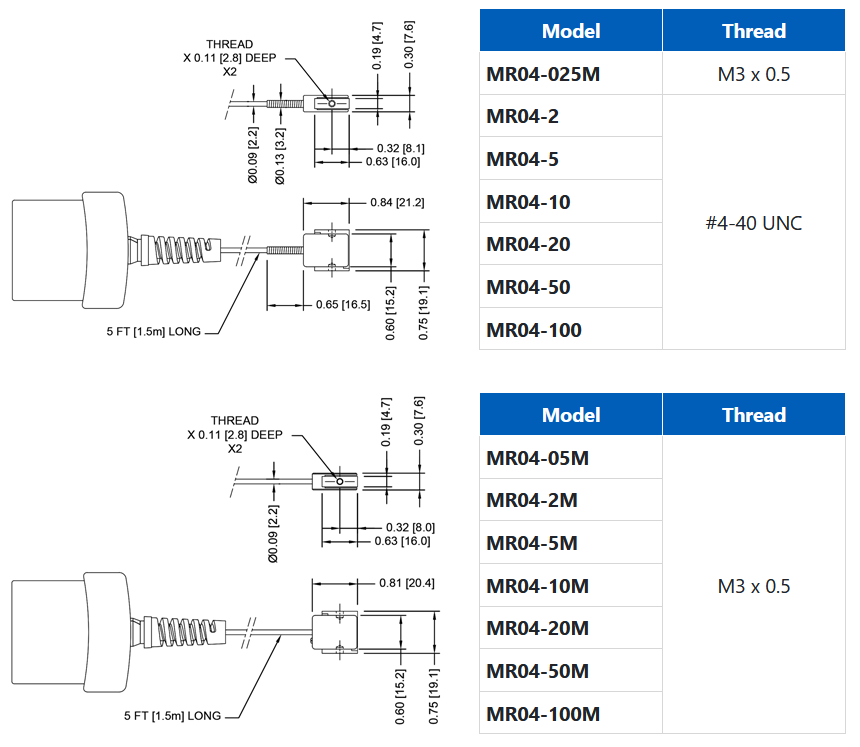

Dimensions

Specifications

Accuracy± 0.2% of full scale ±1 digit + indicator
Weight0.015 lbs (0.007 kg)
Warranty3 years

Downloads

Buy Now

Item Description Price
Force sensor, miniature, 0.25 lbF
$995.00
Force sensor, miniature, 0.5 lbF
$995.00
Force sensor, miniature, 2 lbF
$995.00
Force sensor, miniature, 5 lbF
$995.00
Force sensor, miniature, 10 lbF
$995.00
Force sensor, miniature, 20 lbF
$995.00
Force sensor, miniature, 50 lbF
$995.00
Force sensor, miniature, 100 lbF
$995.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
