R03 Tension and Compression Force Sensor

Made in USA
R03 Force Sensor
Click images to enlarge.

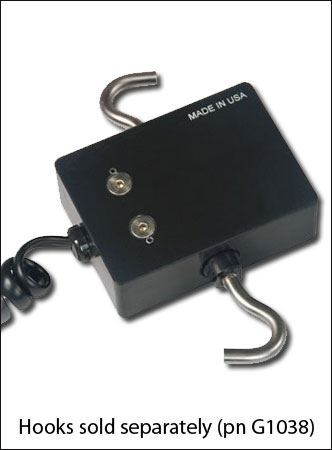

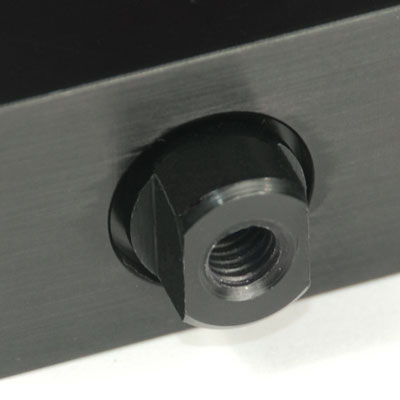

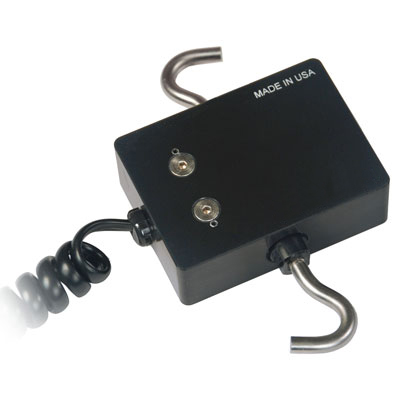

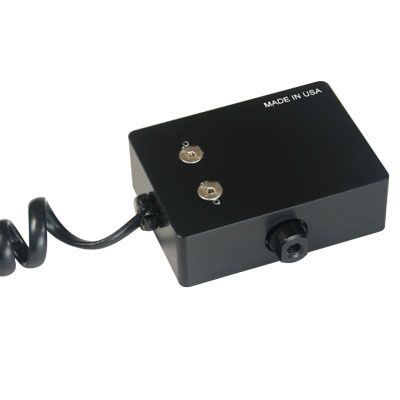

Series R03 smart sensors are designed for tension and compression measurement applications in virtually every industry. Threaded holes on two sides can accept a variety of hooks and implements, making this sensor particularly well suited for inline tests.

A shortened cable is available for mounting to an ESM1500LC test stand*. Capacities available from 0.25 to 100 lbF [1 to 500 N]. Compatible with indicators (sold separately) through unique Plug & TestTM technology.

Features

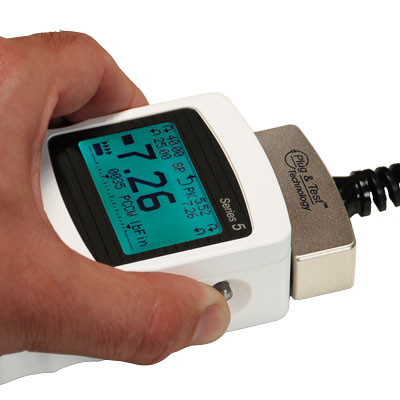

  • Compatible with the 7i, 5i and 3i digital indicators
  • Rugged aluminum housing
  • NIST-traceable certificate of calibration included

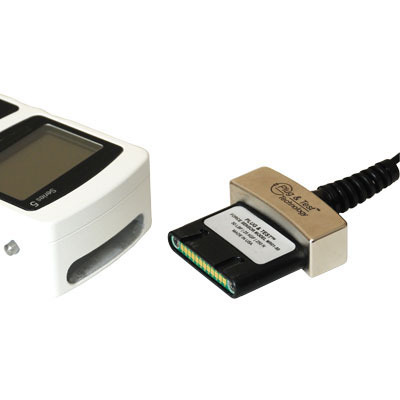

  • Unique Plug & TestTM connector holds all calibration and configuration data
  • Measures tensile and compressive forces
  • 3 Year Warranty

Force Ranges - capacity/resolution

Show with:
Model lbf ozf gf kgf N mN
MR03-25 0.25
0.0001
0.25
0.0002
4
0.002
N/A
100
0.05
100
0.1
-- 1
0.0005
1
0.001
1000
0.5
N/A
MR03-05 0.5
0.0002
0.5
0.0005
8
0.005
N/A
250
0.1
250
0.2
-- 2.5
0.001
2.5
0.002
2500
1
N/A
MR03-2 2
0.001
2
0.002
32
0.02
N/A
1000
0.5
-
1
0.0005
1
0.001
10
0.005
10
0.01
-N/A
MR03-5 5
0.002
5
0.005
80
0.05
N/A
2500
1
-
2.5
0.001
2.5
0.002
25
0.01
25
0.02
-N/A
MR03-10 10
0.005
10
0.01
160
0.1
N/A
5000
2
-
5
0.002
5
0.005
50
0.02
50
0.05
-N/A
MR03-20 20
0.01
20
0.02
320
0.2
N/A
10000
5
-
10
0.005
10
0.01
100
0.05
100
0.1
-N/A
MR03-50 50
0.02
50
0.05
800
0.5
N/A
25000
10
-
25
0.01
25
0.02
250
0.1
250
0.2
-N/A
MR03-100 100
0.05
100
0.1
1600
1
N/A
50000
20
-
50
0.02
50
0.05
500
0.2
500
0.5
-N/A
N/A = Series 3i is unable to display these units

Related Products

M3i digital force indicator
Click image for more info
Force and Torque Indicator
- Interchangeable force and torque sensors through Plug & Test™technology
- USB data output
Click image for more info
Advanced Force/Torque Indicator
- 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
Click image for more info
Professional Force and Torque Indicator
- Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC

Specifications

Accuracy± 0.15% of full scale ±1 digit + indicator
Weight0.4 lbs (0.2 kg)
Warranty3 years

Downloads

Buy Now

Item Description Price
Force sensor, inline, 0.25 lbF
$775.00
S-Beam Force sensor, Capacity 0.5 lb / 2.5N / 250 grams
$775.00
Force sensor, inline, 2 lbF
$650.00
Force sensor, inline, 5 lbF
$650.00
Force sensor, inline, 10 lbF
$650.00
Force sensor, inline, 20 lbF
$650.00
Force sensor, inline, 50 lbF
$650.00
Force sensor, inline, 100 lbF
$650.00
Accessories
AC1018
Mounting kit SS TS-Series test stands
$100.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable

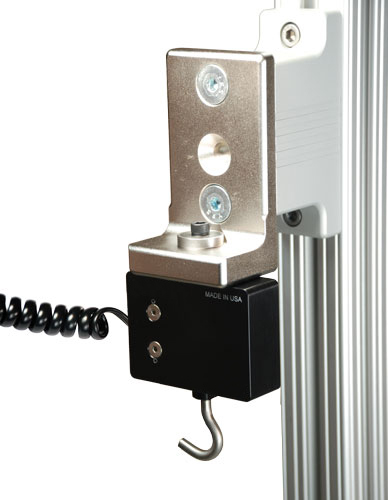

* Add suffix “-1” for shortened cable, for use on the ESM1500LC test stand. Ex: MR03-100-1.

“-1” sensors include hardware for mounting to the ESM1500LC's crosshead.
