FS06 Force Sensors for F105, F305, F505, and F505H test frames

Made in USA

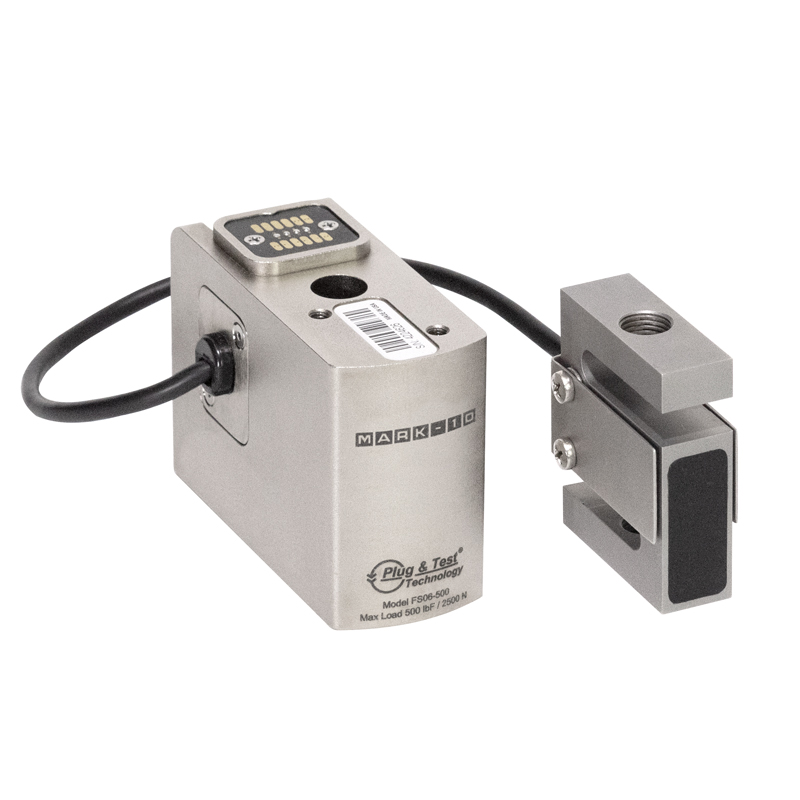

FS06 force sensor
Click images to enlarge.

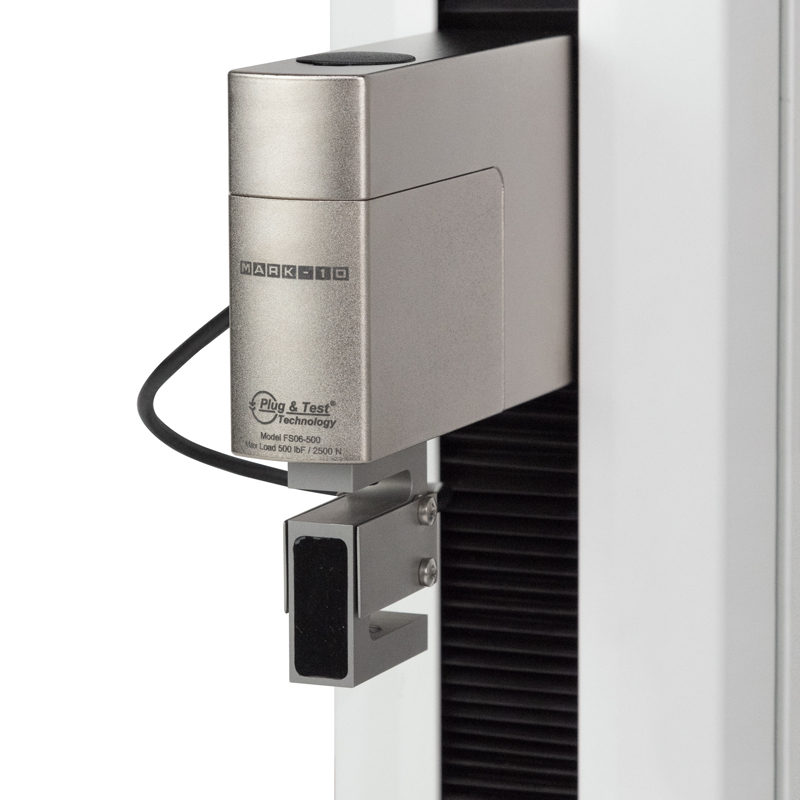

Series FS06 force sensors measure tension and compression forces. Designed to accommodate bulkier grips and fixtures, they are compatible with Series F test frame models up to 500 lbF / 2.2 kN.

With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter AC1083 required).

Ranges are available from 50 to 500 lbF [250 N to 2.5 kN].

Compatible with Models F105, F305, F505, and F505H.

Features

  • Measure tension and compression force

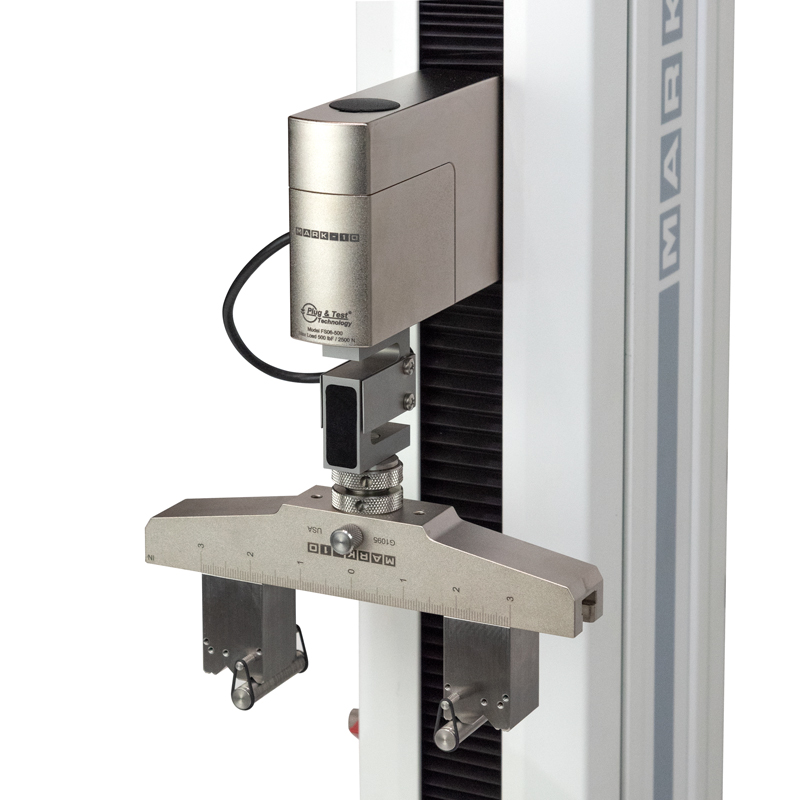

  • Suitable for larger and heavier grips and fixtures
  • Compatible with Model F105, F305, F505, and F505H test frames
  • Member of the Plug & Test® family of interchangeable sensors and indicators (optional adapter AC1083 required)
  • NIST-traceable certificate of calibration with data is included
  • Warranty: 3 years

Specifications

Accuracy± 0.15% of full scale + indicator or test frame
Safe Overload150% of full scale
WeightFS06-50 – FS06-200: 1.7 lb [0.8 kg]
FS06-300 – FS06-500: 1.9 lb [0.9 kg]
Shipping weightFS06-50 – FS06-200: 2.5 lb [1.1 kg]
FS06-300 – FS06-500: 2.7 lb [1.2 kg]

Related Products

Series FS05 Sensor
Click image for more info
Tension and Compression Force Sensors
- Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables
S-Beam Force Sensor - R07
Click image for more info
R07
S-Beam Force Sensor
- Compatible with Models F755, F755S, F1505, and F1505S test frames
Mark-10 EasyMESUR Test Frame
Click image for more info
EasyMESUR Tension and Compression Test Frame - High Range
EasyMESUR Test Frame
Click image for more info
EasyMESUR Tension and Compression Test Frame - Low Range
Mark-10 Series F Test Stand
Click image for more info
F105 / F305 / F505 / F505H IntelliMESUR Force Test Frame
Mark-10 Series F
Click image for more info
F755 / F755S / F1505 / F1505S Mark-10 IntelliMESUR Test Frame

Buy Now

Item Description Price
Force sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N
$1,350.00
Force sensor, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N
$1,350.00
Force sensor, 200 lbF / 3200 ozF / 100 kgF / 1000 N / 1 kN
$1,350.00
Force sensor, 300 lbF / 4800 ozF / 150 kgF / 1500 N / 1.5 kN
$1,350.00
Force sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN
$1,350.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
