G1103 Wire / Rope Grip, Medium

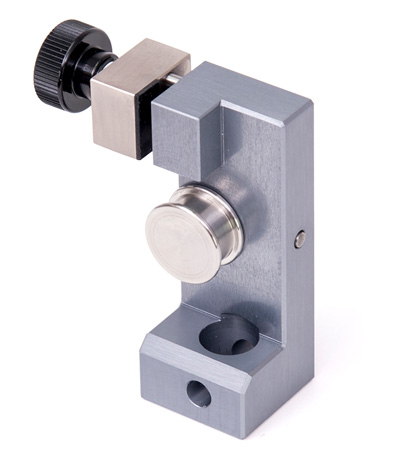

G1103 Wire / Rope Grip
Click images to enlarge.
Designed for wire, rope, and yarn pull testing applications. Secures the free end of the sample via a bollard and vise.

Includes integrated eye end mounting, and requires an eye end adapter to mount to force gauges or force sensors, and test stands.

Specifications

Capacity200 lbF (1,000 N)
Weight0.6 lb (0.3 kg)

Dimensions

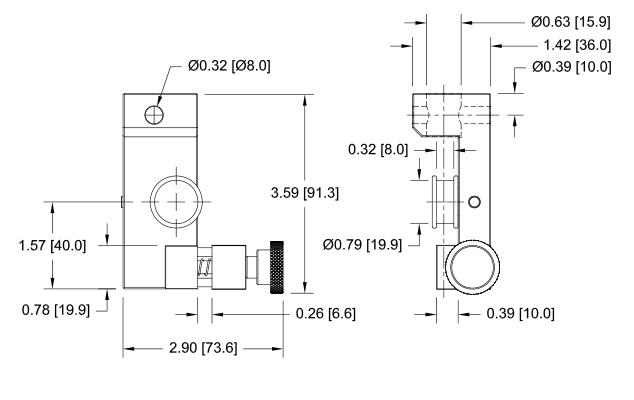

G1103 Wire / Rope Grip Dimensional Drawing
IN [MM]

Buy Now

Item Description Price
Wire / rope grip, medium, eye end
$375.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
