G1095-G1096-G1097 3-point and 4-point Bend Fixtures

Made in USA
G1095-G1097 Bend Fixtures
Click images to enlarge.

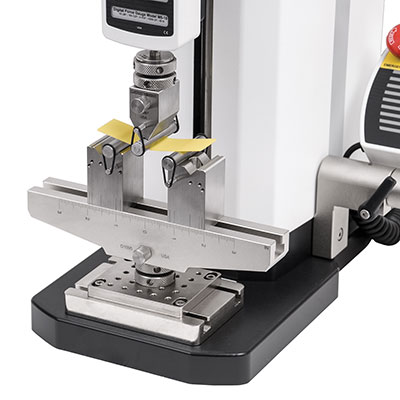

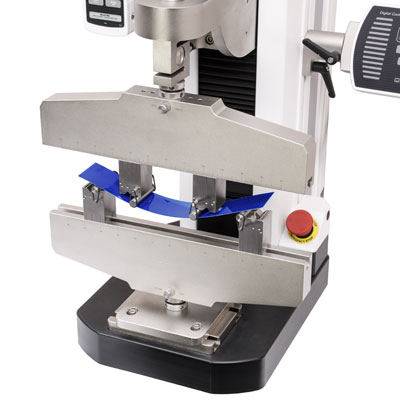

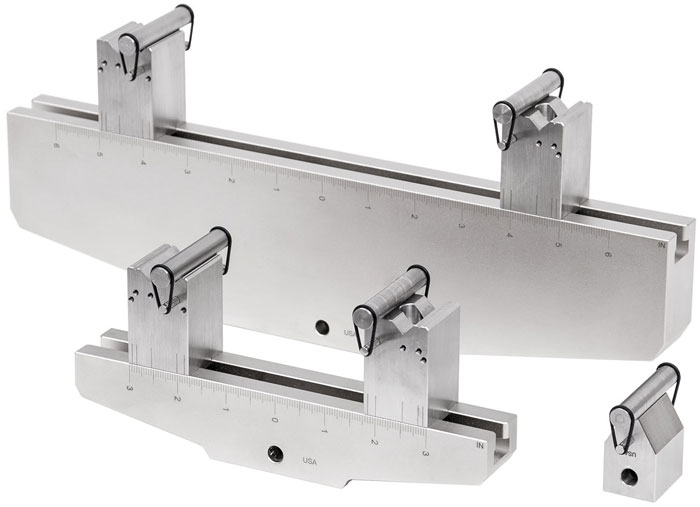

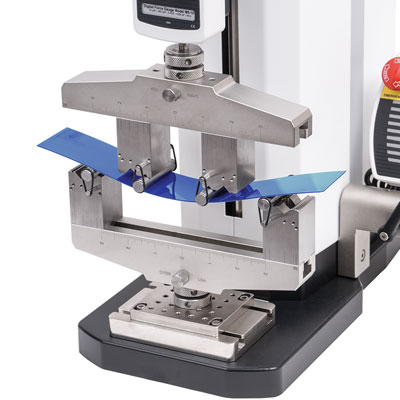

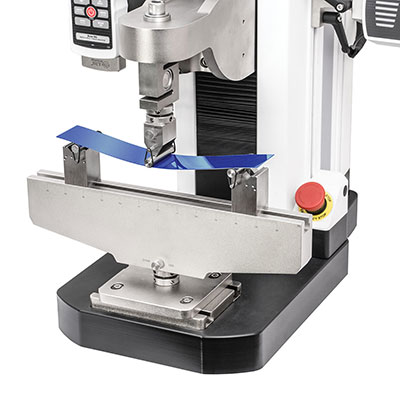

Our new bend fixtures are designed for 3 and 4 point bend testing of plastics, metals, ceramics, tubing, and many other materials. Two base sizes are available, along with an upper anvil, and optional roller diameters. Use a base-anvil combination for 3-point bend testing or two bases for 4-point bend testing.

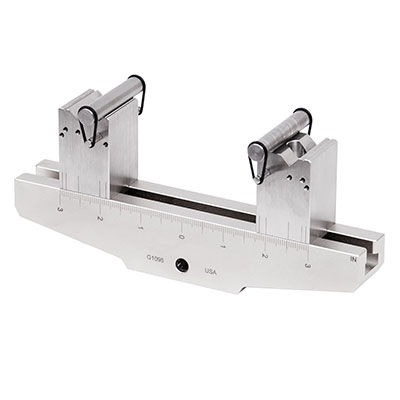

Bases feature movable blocks with multiple V-grooves to accept several roller diameters. 10 mm dia. rollers are included, and other sizes are available.

The bases feature engraved rulers, dual-graduated with an inch scale on one side and mm scale on the other. Integrated eye end receptacles facilitate mounting to load cells, force gauges, and test stands. The bases also include thru-holes and mounting screws for direct mounting to certain test stands.

Features

  • Designed for 3-point and 4-point bend testing
  • Accommodate a broad sample size range
  • Rugged design
  • Dual graduated rulers - in and mm
  • May be used with eye end adapters or mounted to test stands with mounting screws (except anvil - eye end mounting only).

Dimensions

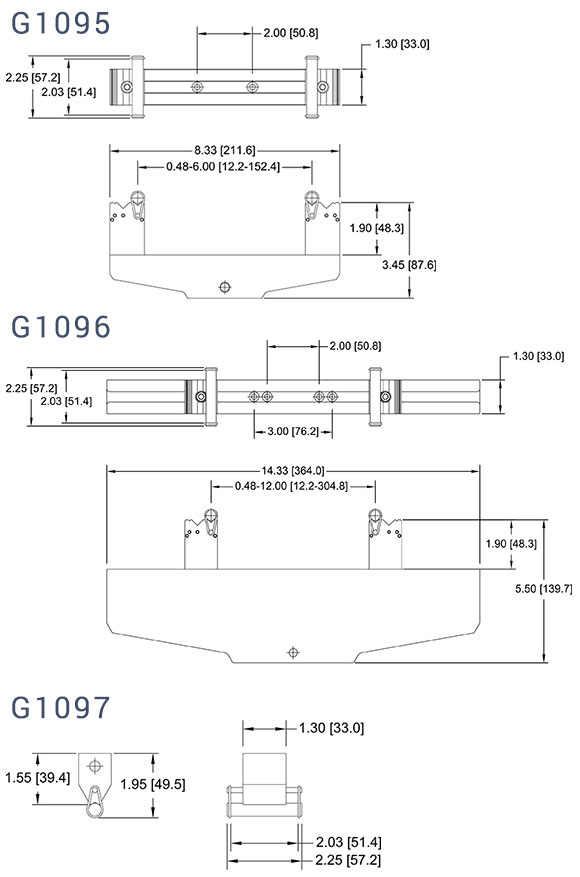

G1095-G1097 Dimensional Drawing
in [mm]

Specifications

ModelCapacity
lbF[kN]
Weight*
lb[kg]
Housing MaterialBlock MaterialRoller MaterialIncludes
G1095500[2.5]3[1.3]2024 Al303 SS416 SS, hardenedScrews for test stand mounting, two 10 mm dia. rollers and o-rings
G10962,000[10]7.1[3.2]2024 Al303 SS416 SS, hardenedScrews for test stand mounting, two 10 mm dia. rollers and o-rings
G10972,000[10]0.5[0.2]303 SS-416 SS, hardened10 mm. dia. roller and o-rings
* including two blocks and 10 mm dia. rollers

Related Products

ESM303 Motorized Test Stand
Click image for more info
High Performance Motorized Test Stand, 300lb Capacity
- Adjustable Travel Speed, Standard - 0.5 - 13 in/min (13 - 330 mm/min), Optional - 0.02 - 45 in/min (0.5 - 1,100 mm/min)
- USB output of force vs. time or force vs. travel (with optional travel measurement)
Click image for more info
For Mounting of Grips to Gauge and Test Stands
- Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.

Buy Now

Item Description Price
Bend fixture base, 500 lbF, includes 2 anvils
$950.00

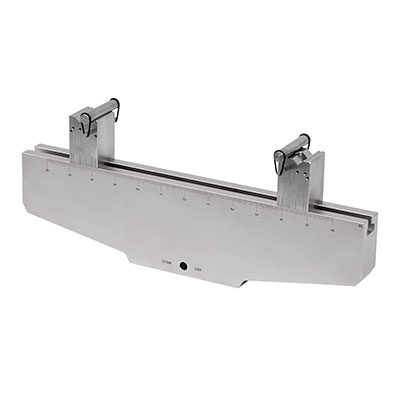

Bend fixture base, 2,000 lbF, includes 2 anvils
$1,300.00

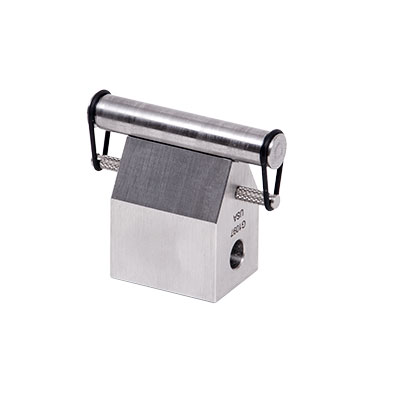

Upper anvil for bend fixture bases, 2,000 lbF
$180.00
Accessories
AC1067
Rollers for bend fixtures, 1 mm dia., set of 4
$90.00
AC1067-1
Rollers for bend fixtures, 2 mm dia., set of 4
$90.00
AC1067-2
Rollers for bend fixtures, 5 mm dia., set of 4
$85.00
AC1067-3
Rollers for bend fixtures, 10 mm, set of 4
$90.00
Base eye end kit, 5/16-18
$85.00
AC1045
Eye end kit, force gauge, #10-32F
$105.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
