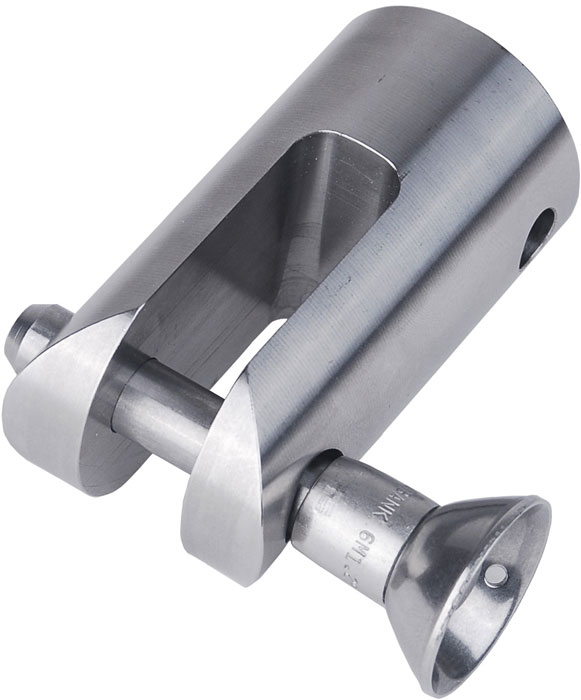

G1090 High Capacity Clevis Grip

Click images to enlarge.

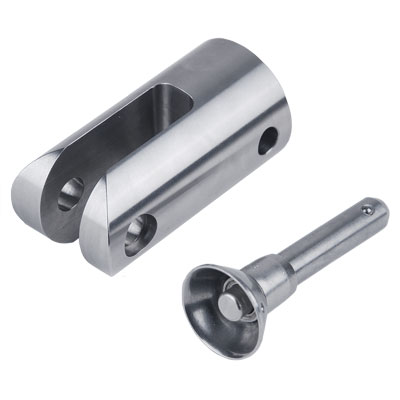

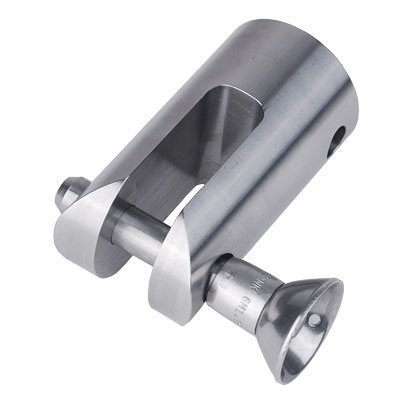

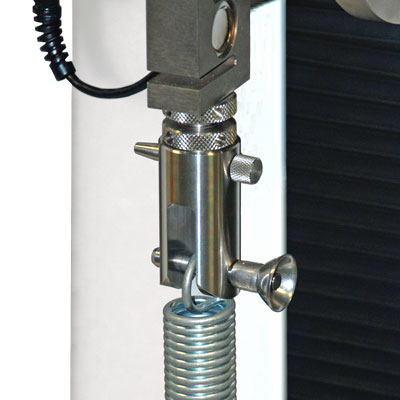

This grip is designed for various pull testing applications, including extension spring testing, chain link break force testing, and other applications. A spring loaded pin with ball plunger locks into place, for added safety during testing. Includes an integrated eye end.

Pin Diameter: 0.375

Force Ranges

ModelCapacityWeight
G10902,000 lbF (9 kN)0.78 lb (0.35 kg)

Dimensions

A B C ⌀D E F ⌀G ⌀H
2.77"
(70.4 mm)
1.80"
(45.7 mm)
0.55"
(14.0 mm)
1.40"
(35.6 mm)
2.32"
(58.9 mm)
0.87"
(22.1 mm)
0.63"
(15.9 mm)
0.32"
(8.0 mm)

Related Products

Click image for more info
For Mounting of Grips to Gauge and Test Stands
- Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.

Buy Now

Item Description Price
High Capacity Clevis Grip
$325.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
