G1072 Opening Force Fixture

Click images to enlarge.

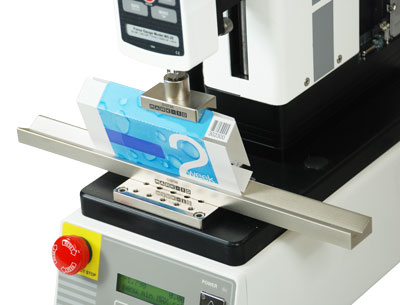

Used to determine the opening force of flat folded cartons along their score lines. Ideal for numerous applications in the packaging, food and beverage, medical device, consumer products, and many other industries.

Upper and lower fixtures are easily removable.

Use this grip with a choice of test stand and force gauge to create a complete opening force testing system.

Mounts directly to the following test stands: ESM, ESM301, ES30, TSC1000, TSF, TSFM500, ES10/ES20 (when ordered with optional 14-1068 mounting plate). A motorized test stand is recommended.

Features

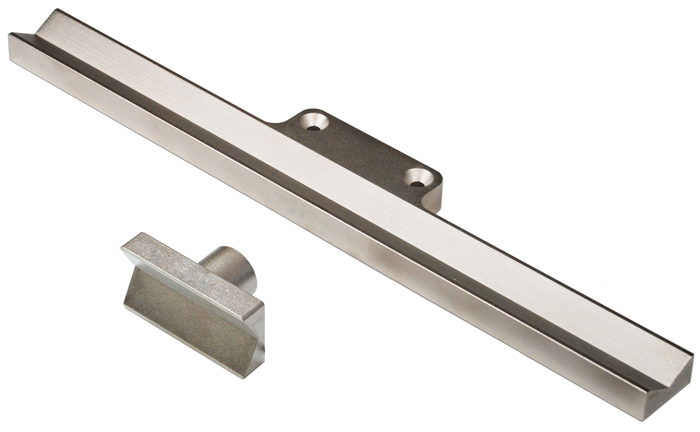

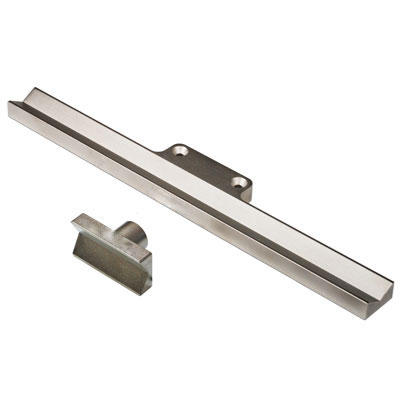

  • Set of upper lower dies provided to accommodate various sized packaging materials
  • Fixtures are easily removable
  • Maximum force: 50 lbF (250 N)
  • Weight:
    Upper die:0.10 lb [0.05 kg]
    Lowe die:0.06 lb [0.03 kg]

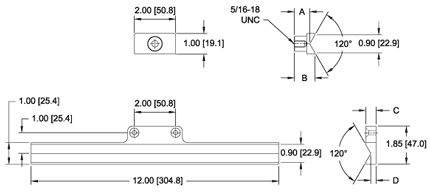

Dimensions

Buy Now

Item Description Price
Opening force fixture set
$400.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
