G1058 Universal Cap Grip

Made in USA
G1058 Universal Cap Grip
Click images to enlarge.

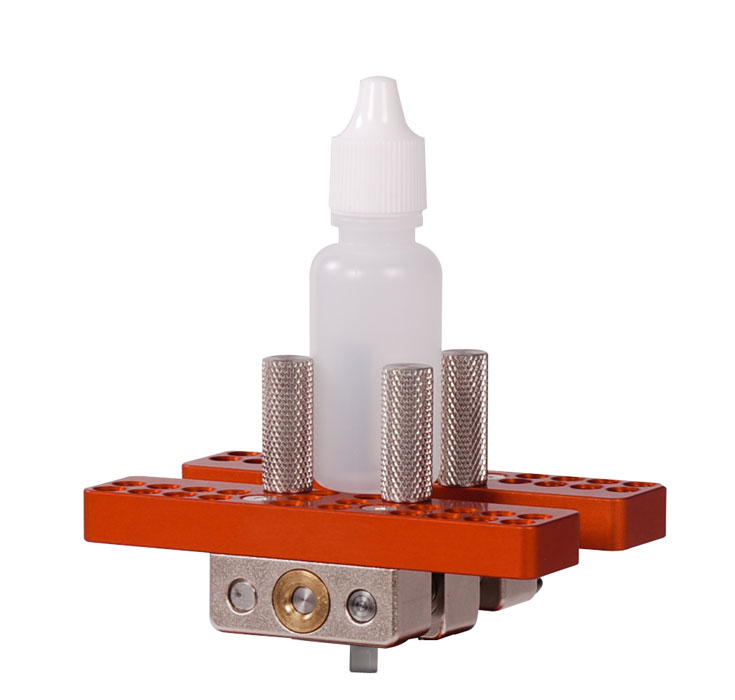

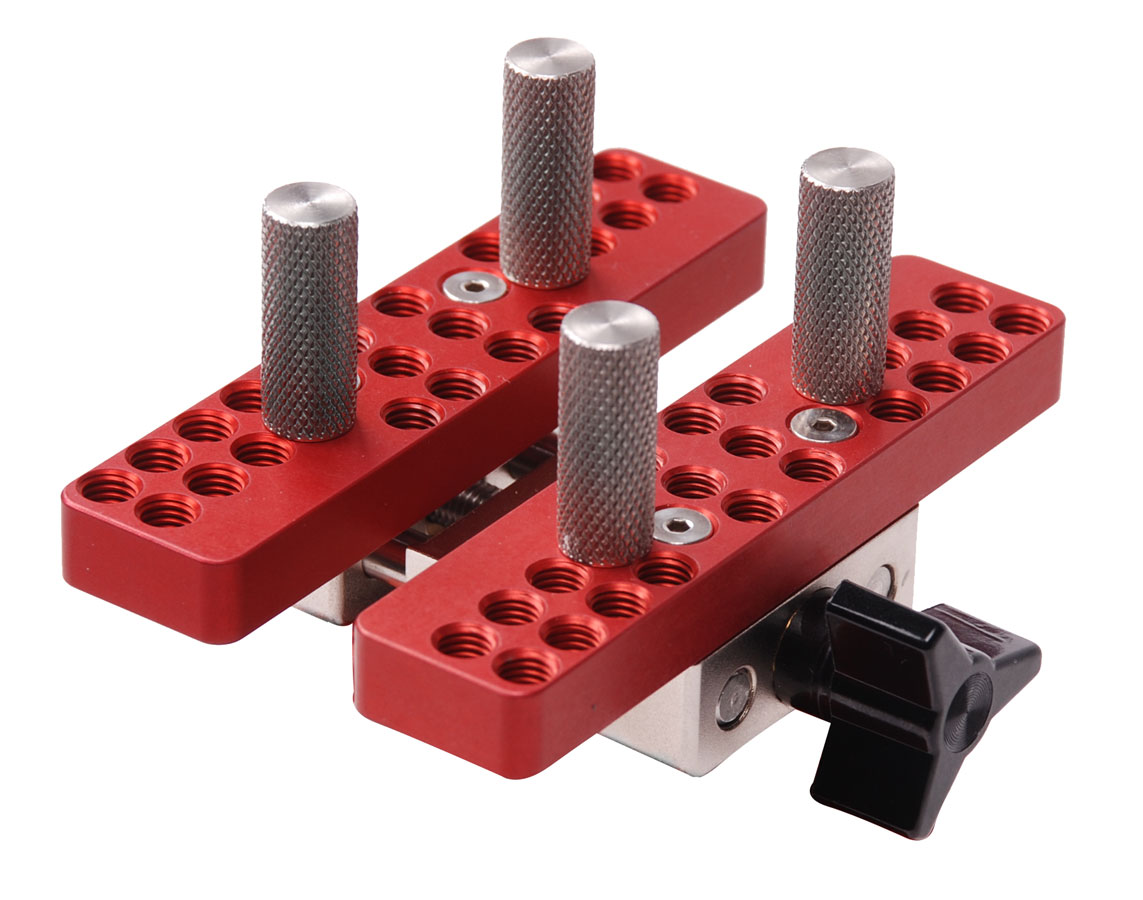

G1058 GripThis unique grip is designed to effectively secure samples for torque and pull tests. Typical applications include bottle cap torque testing, lid pull-off testing, and other tests. A matrix of threaded holes allows the serrated steel posts to be placed in positions specific to the test sample, with a broad diameter range of 0.2 - 3.5 in (5.1 - 89.0 mm).

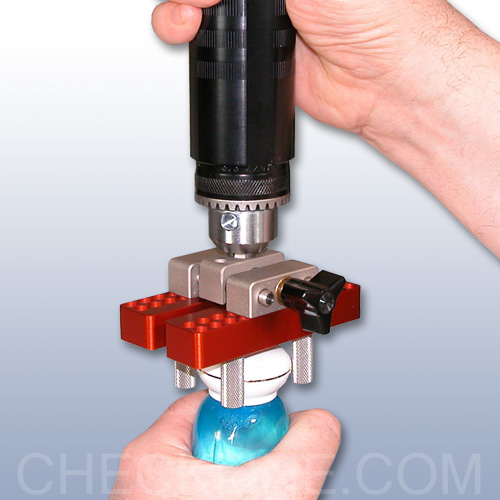

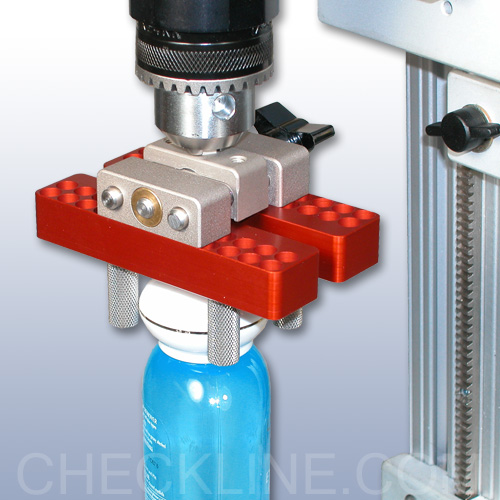

For torque applications, this grip can be used either manually with an STJ torque sensor or MGT torque gauge, or in test stand controlled applications. A typical torque test stand-based application will also typically require our G1023 bottle grip. For force applications, the grip can be mounted to a force gauge or test stand.

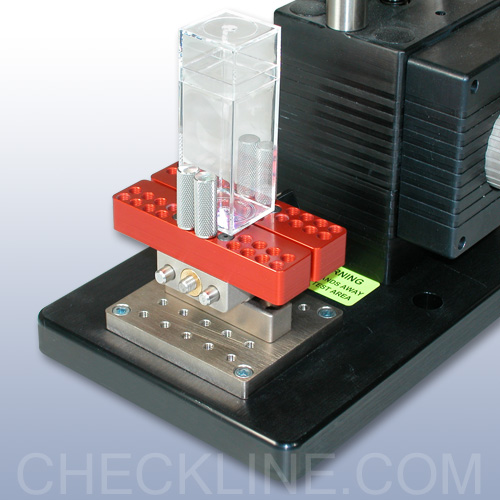

The grip has a hex tail with internal thread to permit use in a chuck or for mounting to a force gauge or force test stand. An optional adapter is available to more securely mount the G1058 grip to the base of a force test stand.

Related Products

Click image for more info
Cap Grip
Click image for more info
Axial compensator

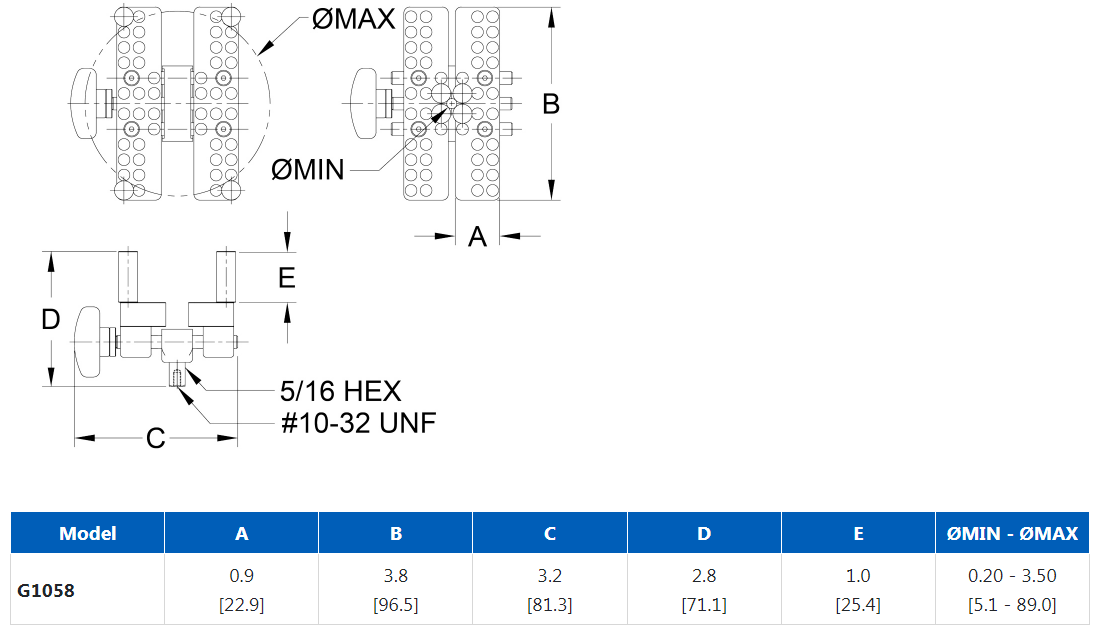

Dimensions

Buy Now

Item Description Price
Cap Grip with diameter, range: 0.2 - 3.5in / 5.1 - 89.0mm
$395.00
Cap Grip with diameter, range: 0.2 - 3.5in / 5.1 - 89.0mm - 1/4 Male Sq Dr
$495.00
Accessories
G1055
G1055 Adapter, G1053 to stand
$50.00
Axial compensator
$195.00
CT004
Set of 4 rubber-edged pegs, 1.25"
$150.00
CT005
Set of 4 rubber-edged pegs, 2.5"
$175.00
CT006
Set of 4 rubber-edged posts, 4"
$200.00
