G1008-G1015 ASTM F88 / D1876 Film and Paper Grips

Made in USA

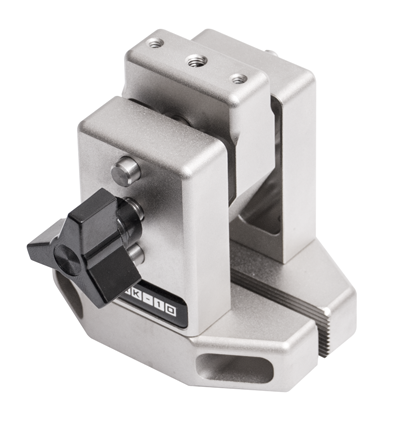

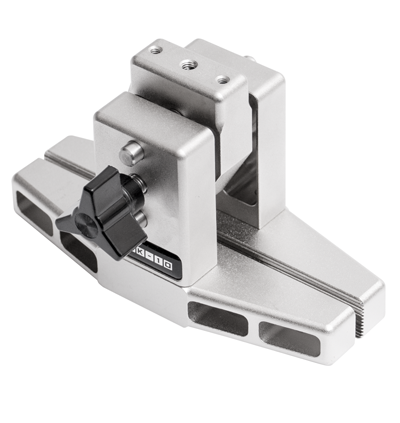

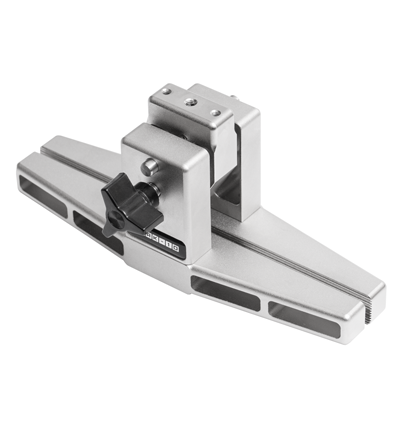

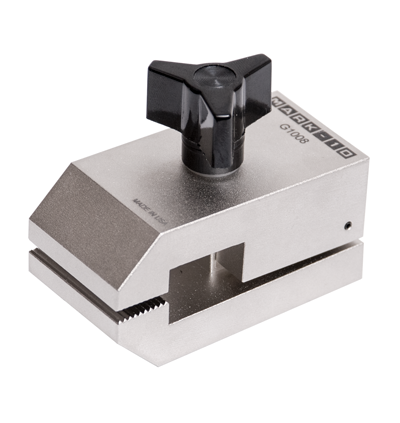

G1008 / G1015 Peel Film and Paper Pull Grip
Click images to enlarge.

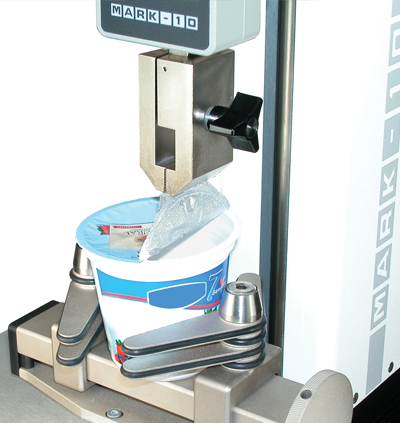

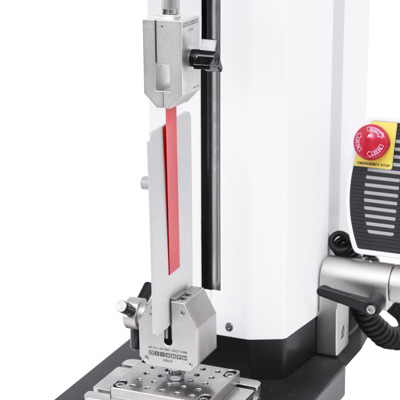

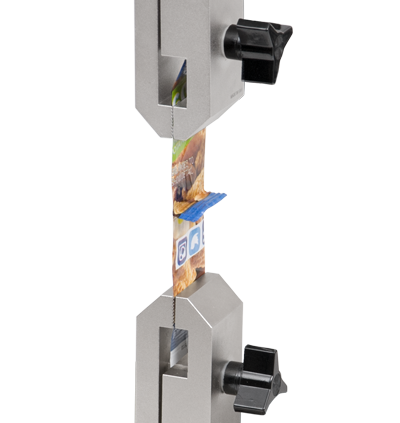

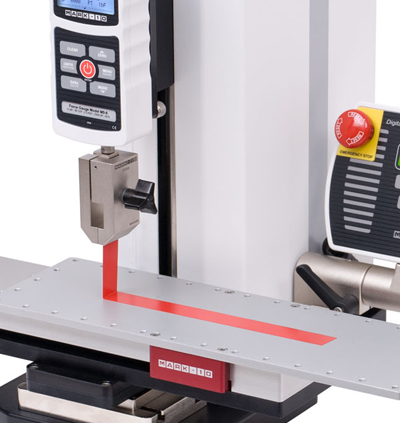

These grips are designed for gripping film, paper, labels, packaging, and other thin materials for tensile and peel testing. Adjustable serrated interlocking jaws effectively grip the samples for up to 100 lb of force. The grips are available in four sizes: 1", 3", 5", and 7". Use them with a force gauge and a test stand to create a complete testing system. Often used for ASTM F88 / D1876 testing application.

Ranges

ModelCapacityWeightThreadSample Size
G1008100 lbF (500 N)0.31 lbs (0.14 kg)#10-32 UNF1.25" wide
G1015-1100 lbF (500 N)0.57 lbs (0.26 kg)#10-32 UNF3.00" wide
G1015-2100 lbF (500 N)0.67 lbs (0.30 kg)#10-32 UNF5.00" wide
G1015-3100 lbF (500 N)0.77 lbs (0.35 kg)#10-32 UNF7.00" wide
All grips include a #10-32 M/M stud with jam nuts

Dimensions

G1008 / G1015 / ASTM F88 / D1876 Film and Paper Grips Dimensional Drawing
Model A B C D
G1008 1.25" (31.8 mm) 2.50" (63.5 mm) 1.20" (30.5 mm) 0 - 0.15" (0 - 3.8 mm)
G1015-1 3.00" (76.2 mm) 3.00" (76.2 mm) 1.90" (48.3 mm) 0 - 0.50" (0 - 12.7 mm)
G1015-2 5.00" (127.0 mm) 3.00" (76.2 mm) 1.90" (48.3 mm) 0 - 0.50" (0 - 12.7 mm)
G1015-3 7.00" (177.8 mm) 3.00" (76.2 mm) 1.90" (48.3 mm) 0 - 0.50" (0 - 12.7 mm)

Related Products

Click image for more info

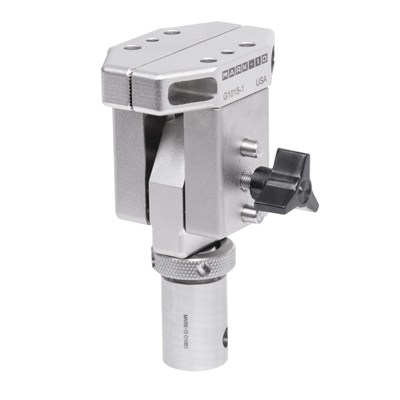

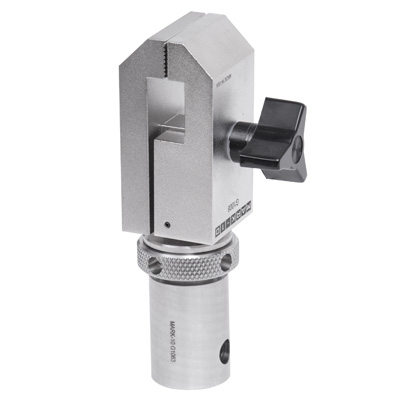

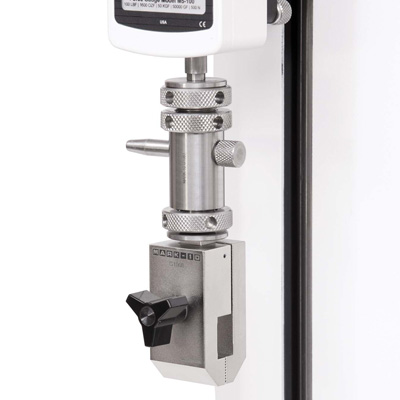

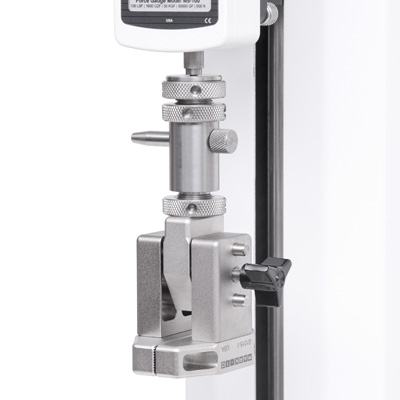

For Mounting of Grips to Gauge and Test Stands
- Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.

Buy Now

Item Description Price
Film and Paper Grip, 1.25" Width, 100 Lb Capacity
$250.00
Film and Paper Grip, 3.00" Width, 100 Lb Capacity
$310.00
Film and Paper Grip, 5.00" Width, 100 Lb Capacity
$330.00
Film and Paper Grip, 7.00" Width, 100 Lb Capacity
$350.00
Accessories
Swivel adapter, #10-32
$65.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
