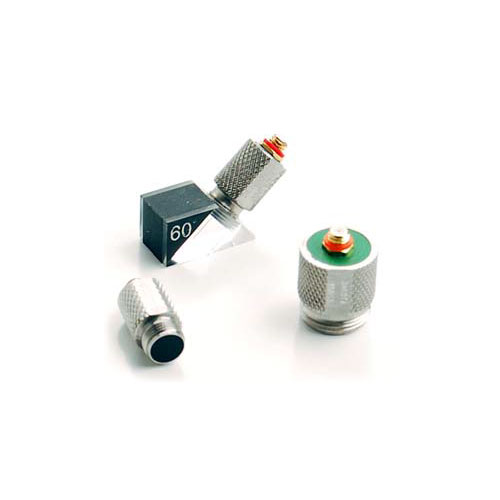

QC-SW Quick Change Shear Wave Transducer

Click images to enlarge.
Threaded shear wave transducers for quickly interchanging between wedges. Ideal for limited access and curved surfaces.

Used for general weld inspection.

Models

Use the options below to filter the table to find the transducer you need. Clicking on the model will highlight the item in the Buy Now.

Reset
Model Element Size Frequency Damping Composite Connector Connector Entry
PQC251 0.250" ⌀ 1.0 Mhz None Yes Microdot Top
PQC371 0.375" ⌀ 1.0 Mhz None Yes Microdot Top
PQC501 0.500" ⌀ 1.0 Mhz None Yes Microdot Top
T-5025-1845 0.250" ⌀ 2.25 Mhz High Gain No Microdot Top
T-5025-1855 0.250" ⌀ 2.25 Mhz Resolution No Microdot Top
T-5035-1845 0.375" ⌀ 2.25 Mhz High Gain No Microdot Top
T-5035-1855 0.375" ⌀ 2.25 Mhz Resolution No Microdot Top
T-5045-1845 0.500" ⌀ 2.25 Mhz High Gain No Microdot Top
T-5045-1855 0.500" ⌀ 2.25 Mhz Resolution No Microdot Top
T-5025-1865 0.250" ⌀ 2.25 Mhz None Yes Microdot Top
T-5035-1865 0.375" ⌀ 2.25 Mhz None Yes Microdot Top
T-5045-1865 0.500" ⌀ 2.25 Mhz None Yes Microdot Top
T-5045-9865 0.500" ⌀ 3.5 Mhz None Yes Microdot Top
T-5025-2845 0.250" ⌀ 5.0 Mhz High Gain No Microdot Top
T-5025-2855 0.250" ⌀ 5.0 Mhz Resolution No Microdot Top
T-5035-2845 0.375" ⌀ 5.0 Mhz High Gain No Microdot Top
T-5035-2855 0.375" ⌀ 5.0 Mhz Resolution No Microdot Top
T-5045-2845 0.500" ⌀ 5.0 Mhz High Gain No Microdot Top
T-5045-2855 0.500" ⌀ 5.0 Mhz Resolution No Microdot Top
T-5025-2865 0.250" ⌀ 5.0 Mhz None Yes Microdot Top
T-5035-2865 0.375" ⌀ 5.0 Mhz None Yes Microdot Top
T-5045-2865 0.500" ⌀ 5.0 Mhz None Yes Microdot Top
T-5025-4845 0.250" ⌀ 10.0 Mhz High Gain No Microdot Top
T-5025-4855 0.250" ⌀ 10.0 Mhz Resolution No Microdot Top
T-5035-4845 0.375" ⌀ 10.0 Mhz High Gain No Microdot Top
T-5035-4855 0.375" ⌀ 10.0 Mhz Resolution No Microdot Top
T-5045-4845 0.500" ⌀ 10.0 Mhz High Gain No Microdot Top
T-5045-4855 0.500" ⌀ 10.0 Mhz Resolution No Microdot Top
PQC2510 0.250" ⌀ 10.0 Mhz None Yes Microdot Top

Buy Now

Item Description Price
0.250", 1.0 Mhz, Top, Microdot, Comp
$340.00
0.375", 1.0 Mhz, Top, Microdot, Comp
$340.00
0.500", 1.0 Mhz, Top, Microdot, Comp
$340.00
0.250", 2.25 Mhz, Top, Microdot, High Gain (QCG2525)
$320.00
0.250", 2.25 Mhz, Top, Microdot, Resolution (QCR2525)
$290.00
0.375", 2.25 Mhz, Top, Microdot, High Gain (QCG3725)
$290.00
0.375", 2.25 Mhz, Top, Microdot, Resolution (QCR3725)
$290.00
0.500", 2.25 Mhz, Top, Microdot, High Gain (QCG5025)
$320.00
0.500", 2.25 Mhz, Top, Microdot, Resolution (QCR5025)
$290.00
0.250", 2.25 Mhz, Top, Microdot, Comp
$340.00
0.375", 2.25 Mhz, Top, Microdot, Comp
$340.00
0.500", 2.25 Mhz, Top, Microdot, Comp
$340.00
0.500", 3.5 Mhz, Top, Microdot, Comp (PQC5035)
$340.00
0.250", 5.0 Mhz, Top, Microdot, High Gain (QCG-2550)
$0.00
0.250", 5.0 Mhz, Top, Microdot, Resolution (QCR2550)
$290.00
0.375", 5.0 Mhz, Top, Microdot, High Gain (QCG3750)
$290.00
0.375", 5.0 Mhz, Top, Microdot, Resolution (QCR3750)
$290.00
0.500", 5.0 Mhz, Top, Microdot, High Gain (QCG5050)
$320.00
0.500", 5.0 Mhz, Top, Microdot, Resolution (QCR5050)
$290.00
0.250", 5.0 Mhz, Top, Microdot, Comp
$340.00
0.375", 5.0 Mhz, Top, Microdot, Comp
$340.00
0.500", 5.0 Mhz, Top, Microdot, Comp
$340.00
0.250", 10.0 Mhz, Top, Microdot, High Gain (QCG2510)
$0.00
0.250", 10.0 Mhz, Top, Microdot, Resolution (QCR2510)
$325.00
0.375", 10.0 Mhz, Top, Microdot, High Gain (QCG3710)
$325.00
0.375", 10.0 Mhz, Top, Microdot, Resolution (QCR3710)
$325.00
0.500", 10.0 Mhz, Top, Microdot, High Gain (QCG5010)
$325.00
0.500", 10.0 Mhz, Top, Microdot, Resolution (QCR5010)
$325.00
0.250", 10.0 Mhz, Top, Microdot, Comp., Quick Change Shear Wave Transducer
$340.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
