ETMX - ETMPX Replaced by ETX

Made in Germany
ETMX - ETMPX Data Logging Limited Access Digital Tension Meter
Click images to enlarge.
3 Ranges
0.5 - 100, 2 - 200, 2 - 500 (g or cN)

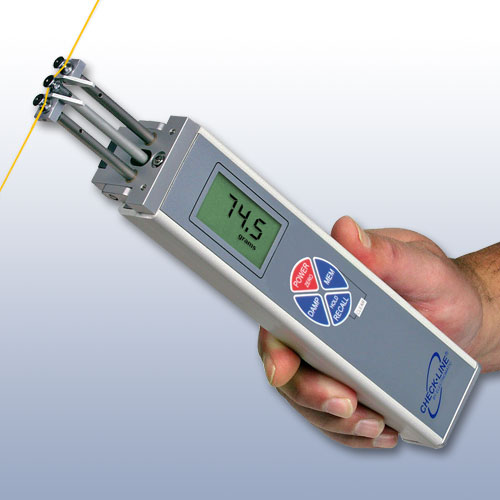

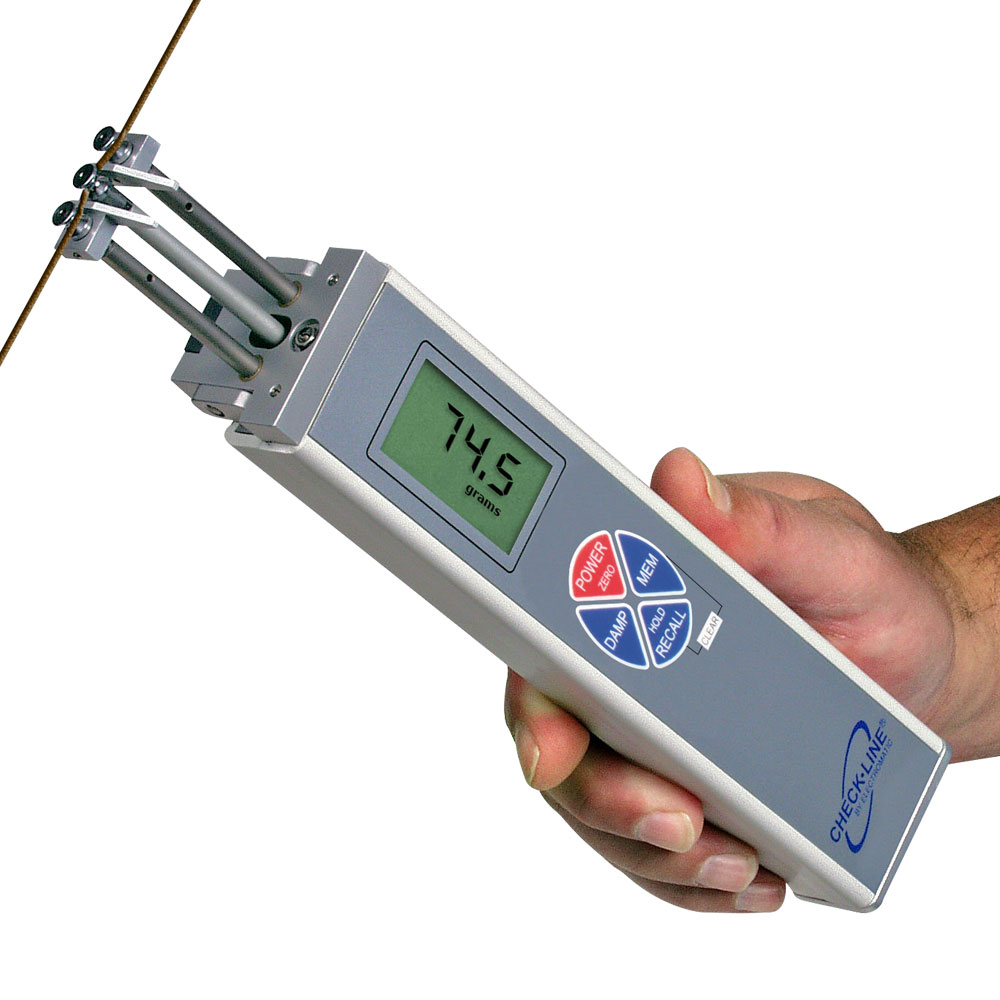

Three long, closely-spaced slender shafts with precision guide rollers or pins at their ends combine with the latest in microprocessor technology to make this instrument top choice for all limited-access, tension measuring applications.

Store up to 4000 displayed tension values in memory and statistics (Last, AVG, MIN, MAX, MIN-PEAK, MAX-PEAK), which can be transmitted using the serial output port.

ETMX models feature miniature, high speed rollers for filament speeds up to 2000 m/min. ETMPX models features non-rotating, ceramic pins for speeds to 6000 m/min.

Reversible display for right or left-hand operation

Features

  • User Selectable Units Grams or Centinewtons
  • New filament guide for easy acquisition of material
  • Adjustable damping for easier readings when tension fluctuates
  • Backlit LCD Display

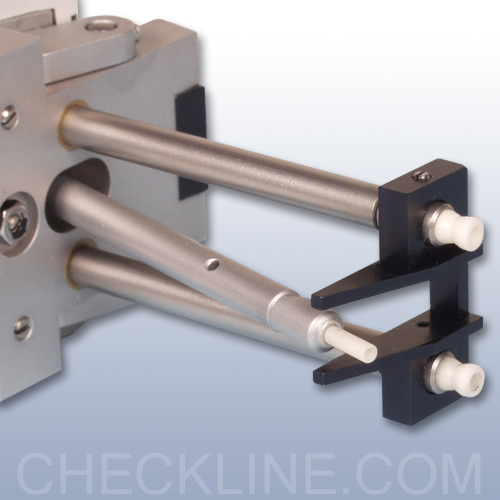

  • Chrome-plated steel ball-bearing mounted rollers for material speeds up to 2000 m/min
  • USB output for batch download or real-time data transfer to TensionInspect Software for Windows

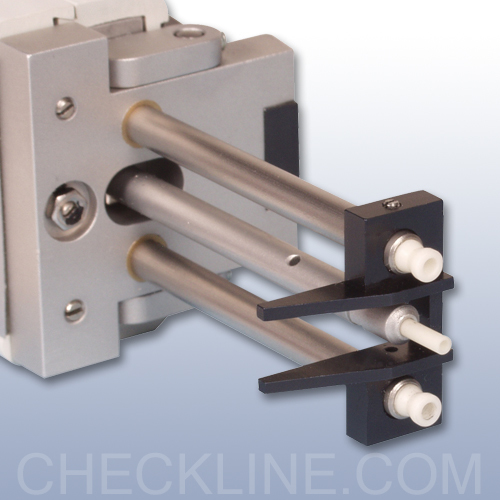

  • Non-rotating Ceramic Thread Guides suggested for material speeds over 2000 meters/min
  • Powered by rechargeable Lithium Polymer battery, 60 hr battery life w/ Universal voltage AC-Charger supplied
  • Built-in memory stores Last, average, MAX, MIN, MAX-PEAK, MIN-PEAK plus 4000 values
  • Continuous, automatic Zero Setting (independent to measuring position)

Tension Ranges

ModelRangeResolutionRollers or Pins
ETMX-1000.5-100.00.1Rollers
ETMX-2002-2001Rollers
ETMX-5002-5001Rollers
ETMPX-1000.5-100.00.1Ceramic Pins
ETMPX-2002-2001Ceramic Pins
ETMPX-5002-5001Ceramic Pins
Selectable Units: Grams or Centinewtons

Outer Roller Spacing 24mm

Standard Calibration Material 0.20 mm Polyamide Monofilament

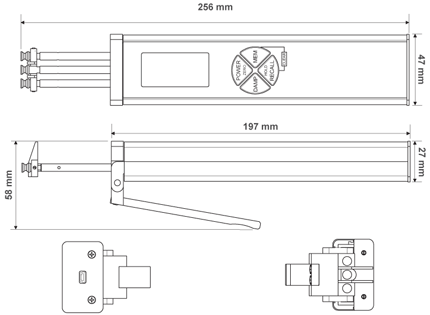

Dimensions

Related Products

Click image for more info
Data Transfer & Analysis Program
- Data can be viewed and analyzed in TensionInspect or transferred to Excel
- Selectable sample rates up to 200 Hz and scalable trend graph "x" and "y" axis

Complete Kit

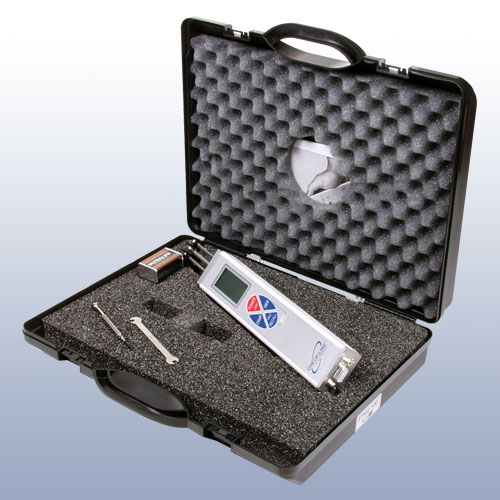

The ETMX / ETMPX is supplied as a complete kit including tension meter, long life 9V lithium battery, universal voltage charger, USB Data Transfer Cable & TensionInspect PC Software and instruction manual in a foam-fitted plastic carrying case

Specifications

Accuracy±1 % full scale ±1 digit or better
(typical ±0.5 % full scale)
Factory Calibration Material0.20 mm Ø Polyamid Monofilament
Minimum Access Space Required3/4" x 1" (20 x 26mm)
Guide Roller / Pin MaterialRollers, chrome-plated steel, std : 2000 m/min
Ceramic pins, optional : 6000 m/min
Measuring PrincipleStrain-gauge bridge
Maximum Sensing-Roller Displacement0.5mm
Scanning Frequency100 / sec., except 40/sec. in PEAK mode
Display Update0.5 sec. (2 times per second)
Data OutputUSB, 100 Hz max
MemoryLast, average, MAX, MIN, MAX-PEAK, MIN-PEAK plus data 4000
Thermal Drift0.25% full scale per degree C
Natural Frequency250 Hz
Over Range10% FS, without accuracy guarantee
Overload Protection200%
Temperature Limits50-115° F (10-45° C)
Automatic Zero± 20% of range
Rel. Humidity Limit85%
Battery/Life3.6 volt, Lithium-Polymer rechargeable / Approx. 60 hrs Life (3.5 Hr recharge), PN E08710
Battery Charger100...240 V AC with plug adapters (EU/USA/UK)
Low Battery Voltage IndicatorLO BAT, or equivalent display
Weight (net/gross)12 oz. (340 g) / 2.75 Lbs (1250 g)
Dimensions13" x 1-3/4" x 1" (330 x 45 x 25mm)
Housing MaterialAluminium frame profile with plastic outer casing (PVC)
Complete KitTension Meter, Battery, Recharger, CD-Software, Transfer Cable & instructions, all supplied in a foam-fitted carrying case. all supplied in a foam-fitted carrying case.
Set of Ceramic Pins540020 (for ETMPX)
Warranty1 year
