5 Ranges
0.5 - 100, 2 - 200, 2 - 500 (g or cN)
0.5 - 100, 2 - 200, 2 - 500 (g or cN)

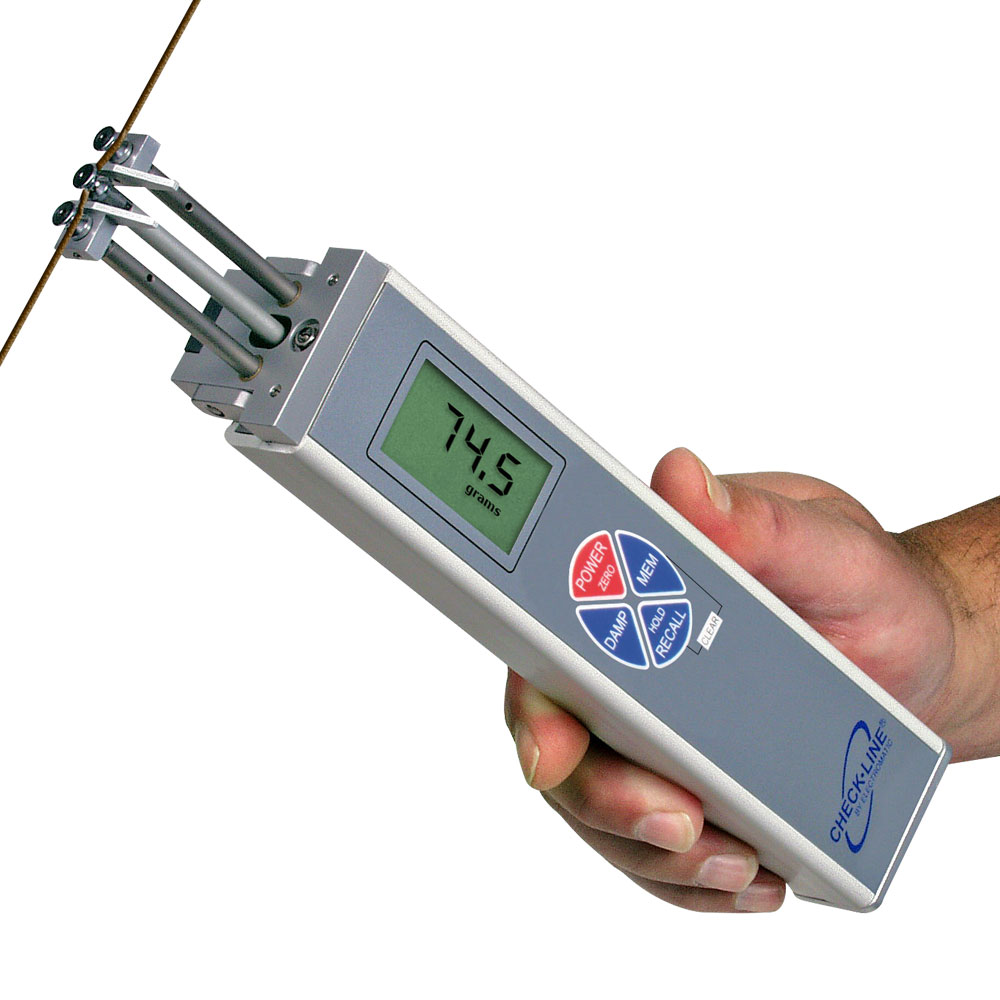

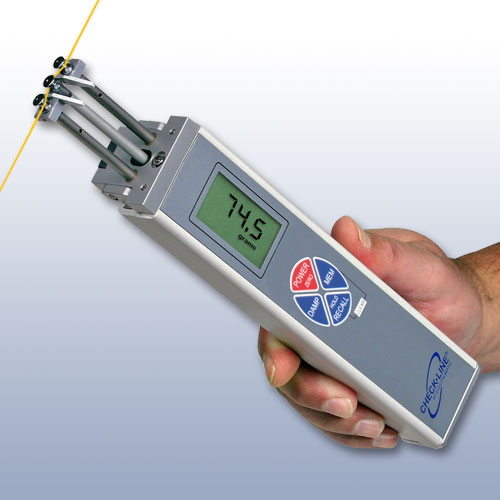

Three long, closely-spaced slender shafts with precision guide rollers or pins at their ends combine with the latest in microprocessor technology to make this instrument top choice for all limited-access, tension measuring applications.
ETMB models feature miniature, high speed rollers for filament speeds up to 2000 m/min. ETMPB models features non-rotating, ceramic pins for speeds to 6000 m/min.
Reversible display for right or left-hand operation
- User Selectable Units Grams or Centinewtons
- New filament guide for easy acquisition of material
- Adjustable damping for easier readings when tension fluctuates
- Backlit LCD Display
- Stores AVG, MIN, MAX and PEAK tension values which can be recalled in the display
- Powered by rechargeable Lithium Polymer battery, 60 hr battery life w/ Universal voltage AC-Charger supplied
- Continuous, automatic Zero Setting (independent to measuring position)
- Chrome-plated steel ball-bearing mounted rollers for material speeds up to 2000 m/min

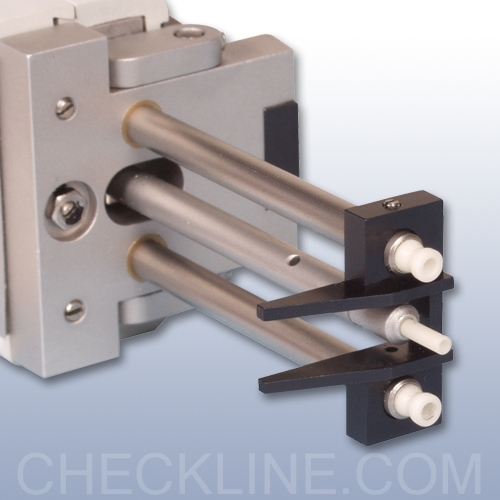

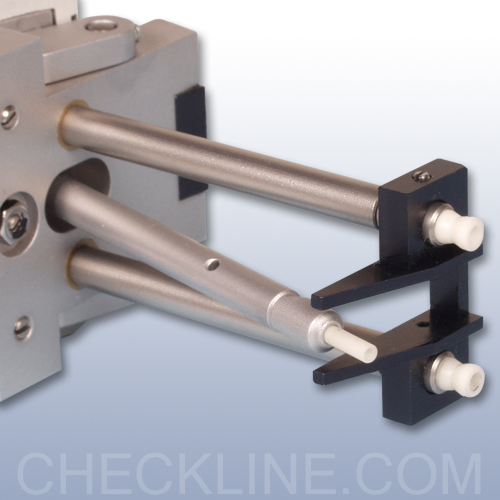

- Non-rotating Ceramic Thread Guides suggested for material speeds over 2000 meters/min
| Model | Range | Resolution | Rollers or Pins |
|---|---|---|---|
| ETMB-100 | 0.5-100.0 | 0.1 | Rollers |
| ETMB-200 | 2-200 | 1 | Rollers |
| ETMB-500 | 2-500 | 1 | Rollers |
| ETMPB-100 | 0.5-100.0 | 0.1 | Ceramic Pins |
| ETMPB-200 | 2-200 | 1 | Ceramic Pins |
| ETMPB-500 | 2-500 | 1 | Ceramic Pins |
Selectable Units: Grams or Centinewtons
Outer Roller Spacing 24mm
Standard Calibration Material 0.20 mm Polyamide Monofilament
Standard Guide Roller Nr. R10017Aluminium hard chromed for line speeds up to max. 2000 m/min
Reorder P/N R50017

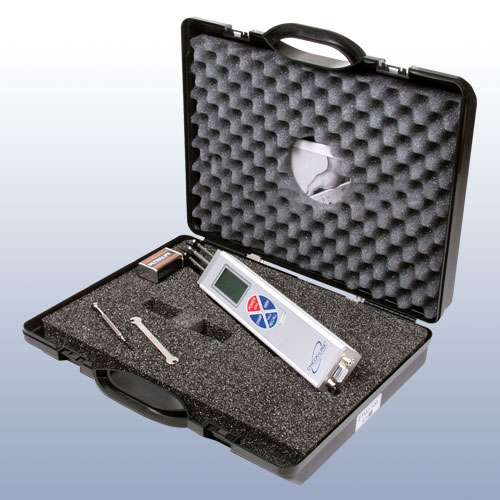

The ETMB / ETMPB is supplied as a complete kit including tension meter, long life 9V lithium battery, universal voltage charger and instruction manual in a foam-fitted plastic carrying case
| Accuracy | ±1 % full scale ±1 digit or better (typical ±0.5 % full scale) |
| Factory Calibration Material | 0.20 mm Ø Polyamid Monofilament |
| Minimum Access Space Required | 3/4" x 1" (20 x 26mm) |
| Guide Roller / Pin Material | Rollers, chrome-plated steel, std : 2000 m/min Ceramic pins, optional : 6000 m/min |
| Measuring Principle | Strain-gauge bridge |
| Maximum Sensing-Roller Displacement | 0.5mm |
| Scanning Frequency | 100 / sec., except 40/sec. in PEAK mode |
| Display Update | 0.5 sec. (2 times per second) |
| Thermal Drift | 0.25% full scale per degree C |
| Natural Frequency | 250 Hz |
| Over Range | 10% FS, without accuracy guarantee |
| Overload Protection | 200% |
| Temperature Limits | 50-115° F (10-45° C) |
| Automatic Zero | ± 20% of range |
| Rel. Humidity Limit | 85% |
| Battery/Life | 3.6 volt, Lithium-Polymer rechargeable / Approx. 60 hrs Life (3.5 Hr recharge) |
| Battery Part# | E08710-ET |
| Battery Charger | 100...240 V AC with plug adapters (EU/USA/UK) |
| Low Battery Voltage Indicator | LO BAT, or equivalent display |
| Weight (net/gross) | 12 oz. (340 g) / 2.75 lbs (1250 g) |

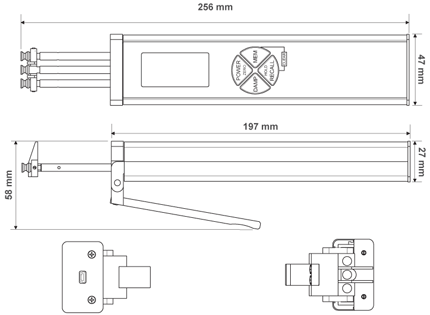

| Dimensions | 13" x 1-3/4" x 1" (330 x 45 x 25mm) |
| Complete Kit | Tension Meter, Battery, Recharger and instructions, all supplied in a foam-fitted carrying case. |
| Housing Material | Aluminium frame profile with plastic outer casing (PVC) |
| Set of Ceramic Pins | 540020 (for ETMPB) |
| New Model | Replaced by ETB |
