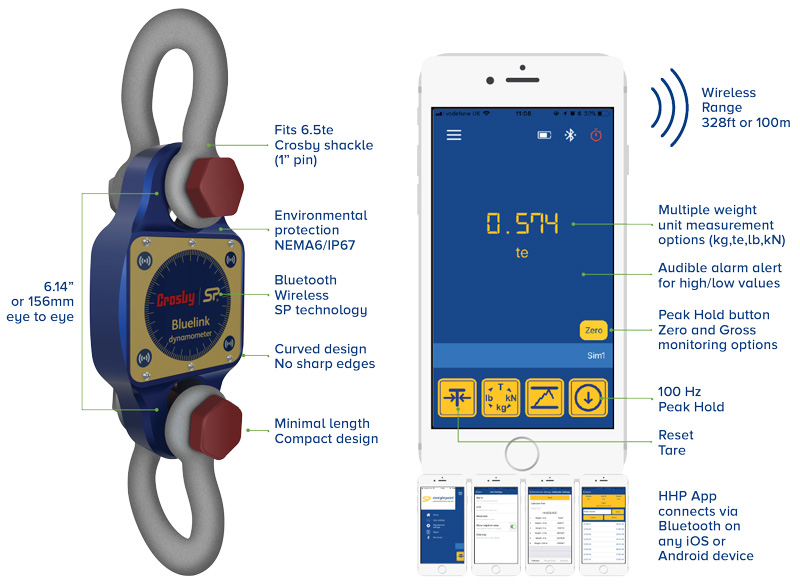

The long range Bluetooth signal connects to any iOS or Android device that has our free HHP app installed, providing the operator with a wireless range of up to 328ft / 100m. This allows them to stand in a safe position away from the load, with no requirement to read directly from the dyanometer. The app will also allow the operator to log data versus time, or on events such as over or underload. An adjustable alarm will alert the operator on their smartphone if any overload is occurring.

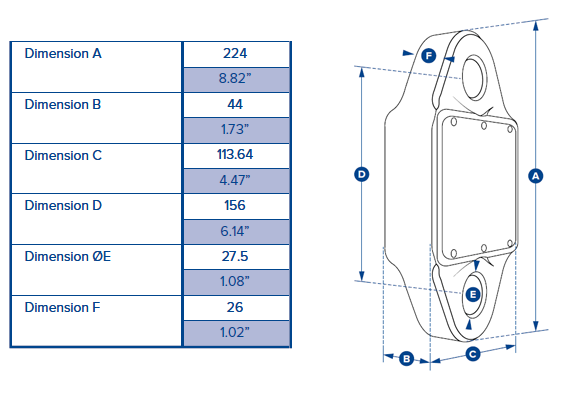

Rigged using industry standard shackles such as Crosby G2130, the BlueLink has been designed to minimize headroom (6.14” or 156mm from eye to eye). With a safety factor of over 500%, its compact lightweight design does not sacrifice on strength.
Constructed from high-quality aerospace grade aluminium, which is then hard-anodized, it features an advanced internal design structure. This design provides the product with an unrivaled strength to weight ratio. The use of a separate internal sealed enclosure administers the load cell's electronic components with IP67 or NEMA6 environmental protection, even with the battery cover plate missing. All these features makes it an industry-leading compact dynamometer, even more suitable for use in the harshest industrial or leisure environments.
The BlueLink is powered by four standard AA alkaline batteries that provide in excess of 500 hours transmission time. Its internal antennae ensures safe transmissions of loads to an accuracy of ±0.2% FS.
- Includes Calibration Certificate
- Wireless Range 328 ft / 100 m
- NEMA 6 / IP67 Rated Protection
- Selectable Measuring Units (kg,te,lb,kN)
- Works with free HPP App for iOS or Android
|Capacity||6.5 tonnes / 14,300 lbs|
|Resolution||0.001 tonnes / 2 lbs|
|Accuracy||± 0.2% of full scale|
|Weight||1.5 kg / 3.3 lbs|
|Power||4x AA Batteries|
|Battery Life||500 Hours|
|Operating Temperature||-10°C to +50°C or 14°F to 122°F|
|Wireless Range||328 feet / 100 m|
|Data Rate||3 Hz|
|Protection||IP67 / NEMA6|

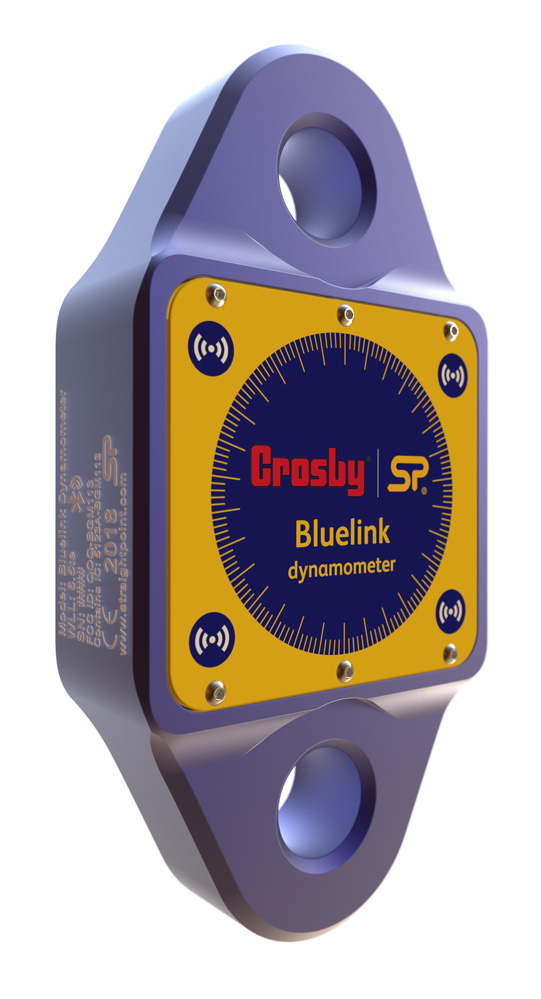

BlueLink Bluetooth Dynamometer, 6.5te / 14,300 lb WITHOUT SHACKLES - 2789218

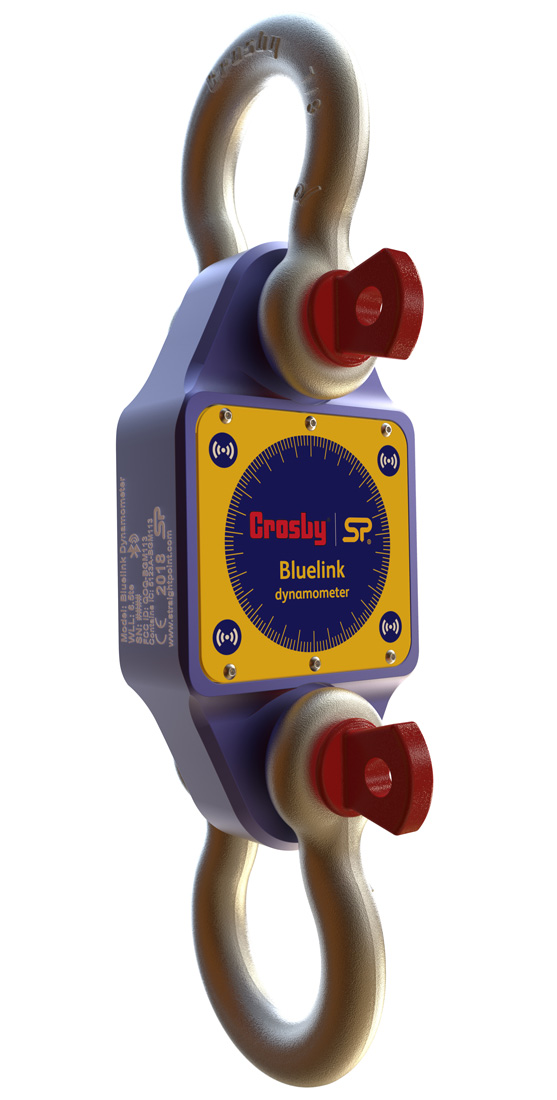

BlueLink Bluetooth Dynamometer, 6.5te / 14,300 lb with 2 Crosby G2130 Shackles - 2789218 / 1019533 (x2)
Bluetooth App for Force Monitoring and Recording. For use with Android & iOS devices
