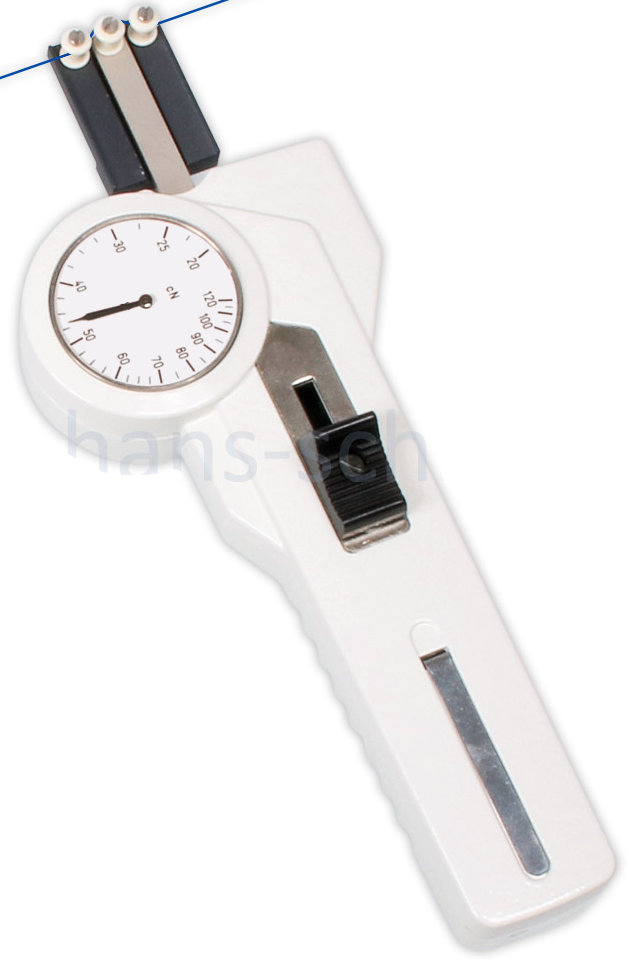

DX2FP Limited Access Tension Meter with Ceramic Pins

Made in Germany
Click images to enlarge.

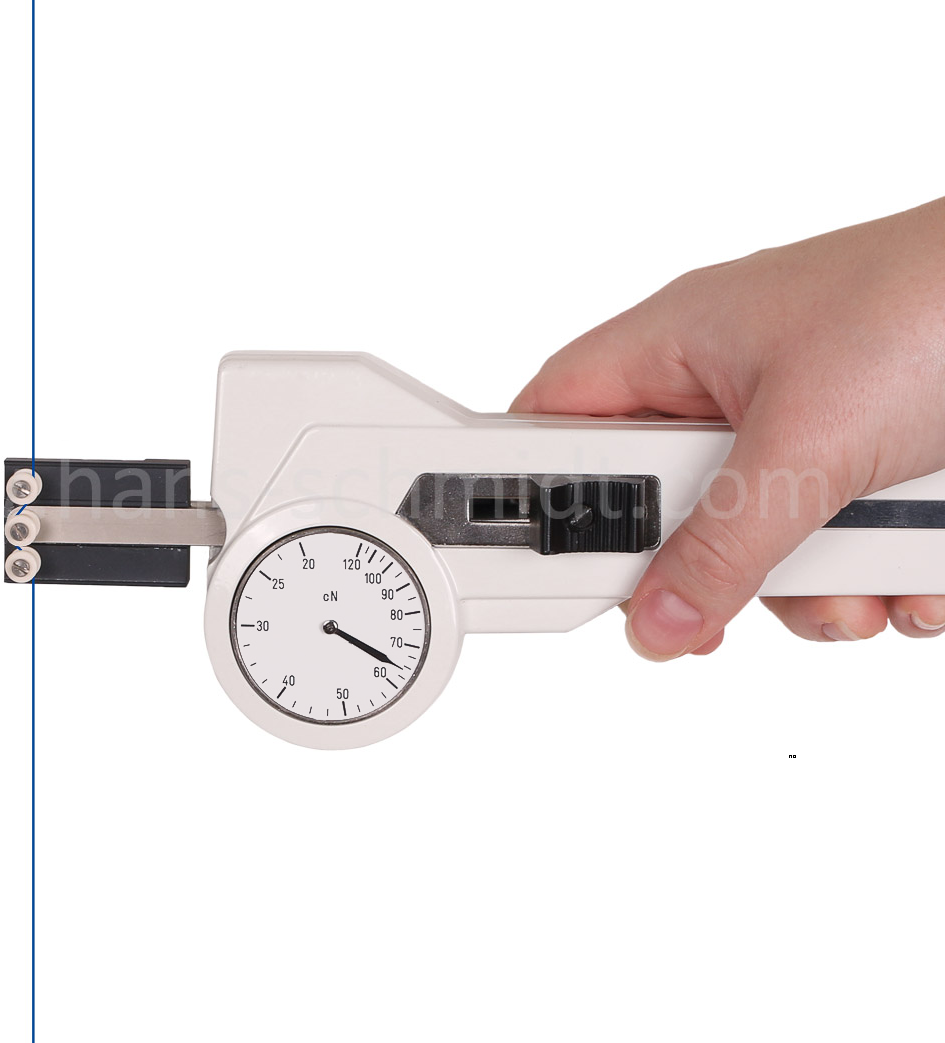

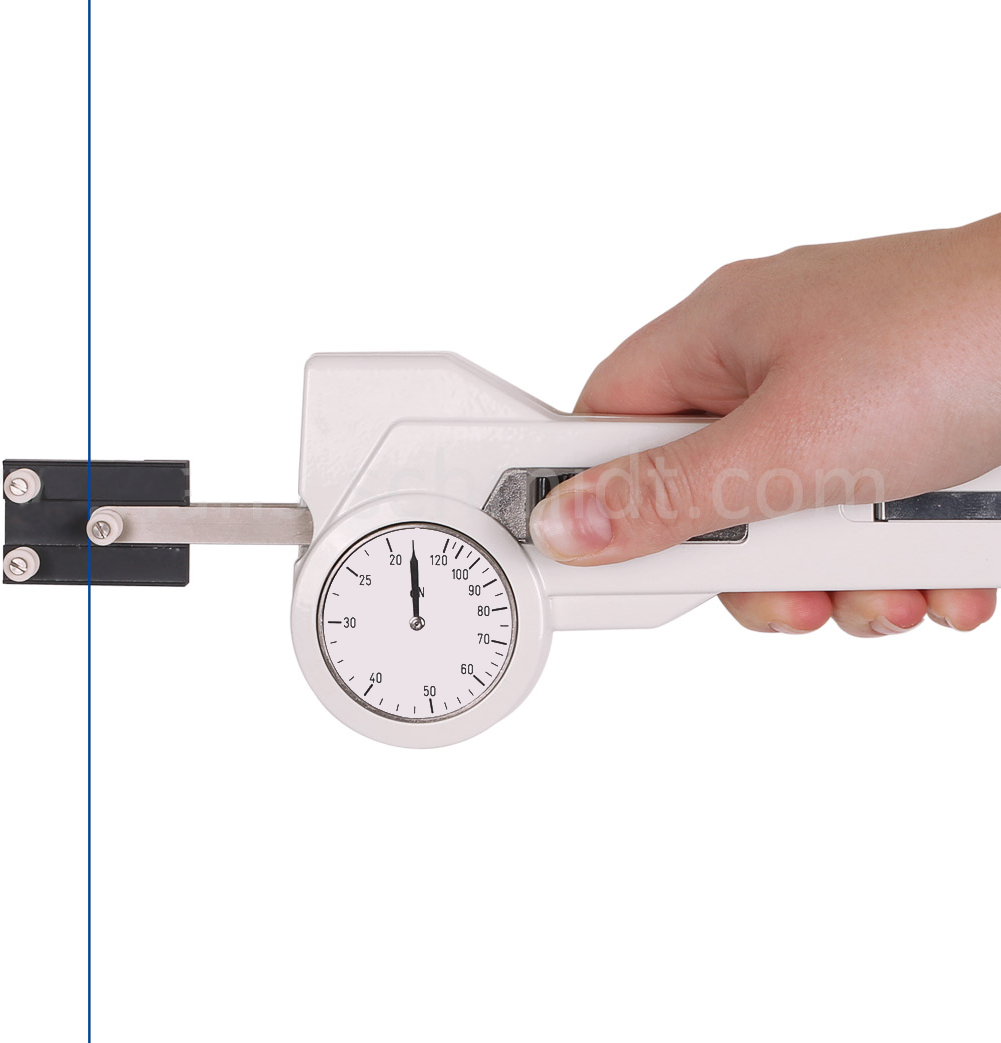

The DX2FP features ceramics pins for measurings filaments moving at high speeds. It's long, flat fingers allow use in applications where there is limited access space or where the running filaments are close together.

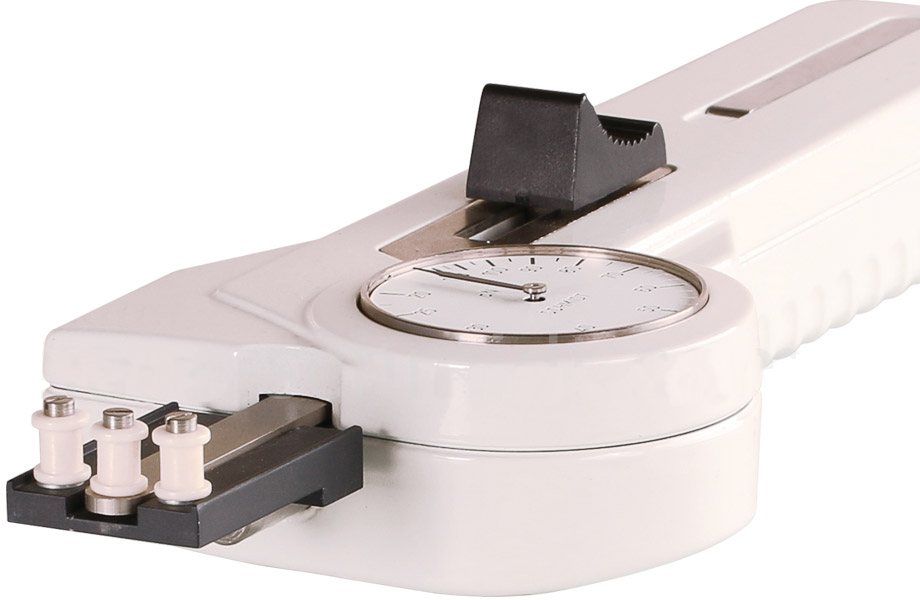

Measuring Head Dimensions
Head Width (X):
27 mm
Head Length (Y): 46 mm


  • NIST-Traceable Calibration Certification OPTIONAL
  • Dual flanged Non-rotating ceramic pins permit line speeds up to 6000 m/min.
  • 27 mm measuring head with outer rollers permits a narrow access "window"
  • The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment
  • Non-rotating ceramic pins permit line speeds up to max. 6000 m/min.
  • Warranty: 1-Year
  • Made in Germany

Tension Ranges

DX2FP-510 - 50 grams
DX2FP-1220 - 120 grams
DX2FP-2020 - 200 grams
DX2FP Dial Faces

Guide Pins

Order Code Line Speed
Pin Material
Standard 6000Oxide ceramic Ø 5.2 mm

Spare Pins

Order Code Line Speed
Pin Material
R50012 6000Oxide ceramic

Complete Kit

The DX2FP Tension Meter is supplied as a complete kit including meter and instruction manual in a foam-fitted hard-plastic carrying case. NIST-Traceable Calibration Certificate & Test Report is optionally available.


Accuracy± 1% of full scale or
± 1 graduation mark on scale
Diameter of Scale41 mm
Maximum Speed6000 m/min
Roller MaterialOxide ceramic Ø 5.2 mm
Housing MaterialDie-cast aluminum
Dimensions225 x 90 x 44 mm
(8.6" x 3.5" x 1.7")
