DX2F Limited Access Tension Meter

Made in Germany

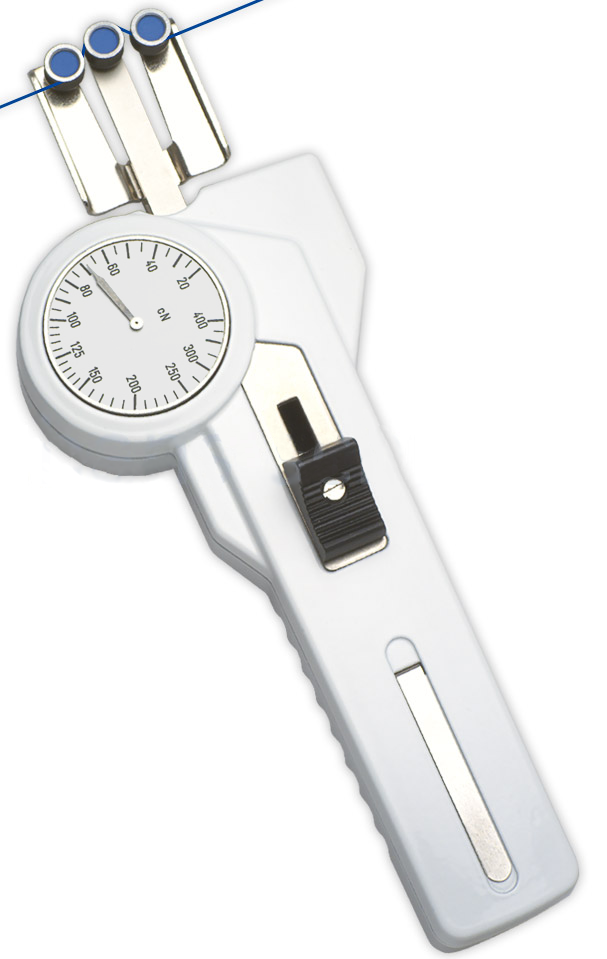

DX2F Limited Access Tension Meter
Click images to enlarge.

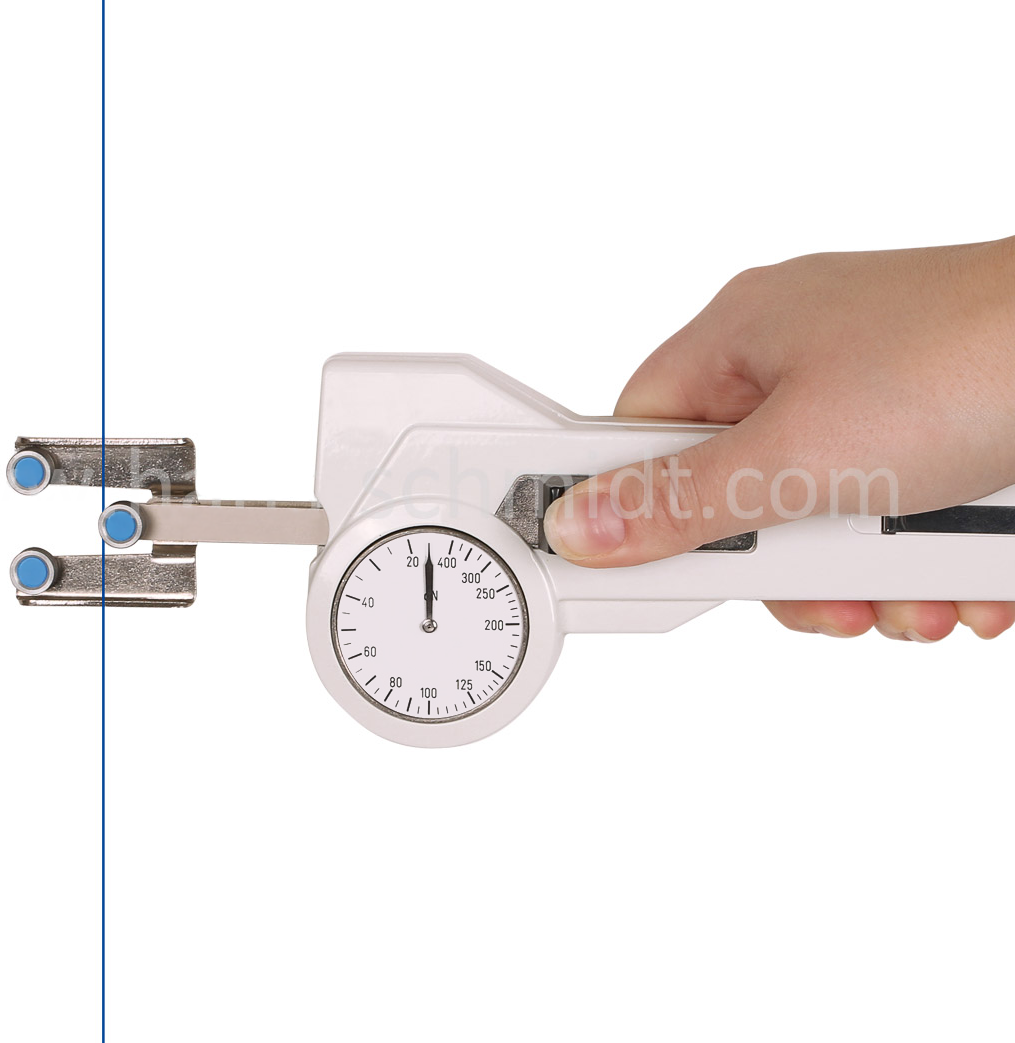

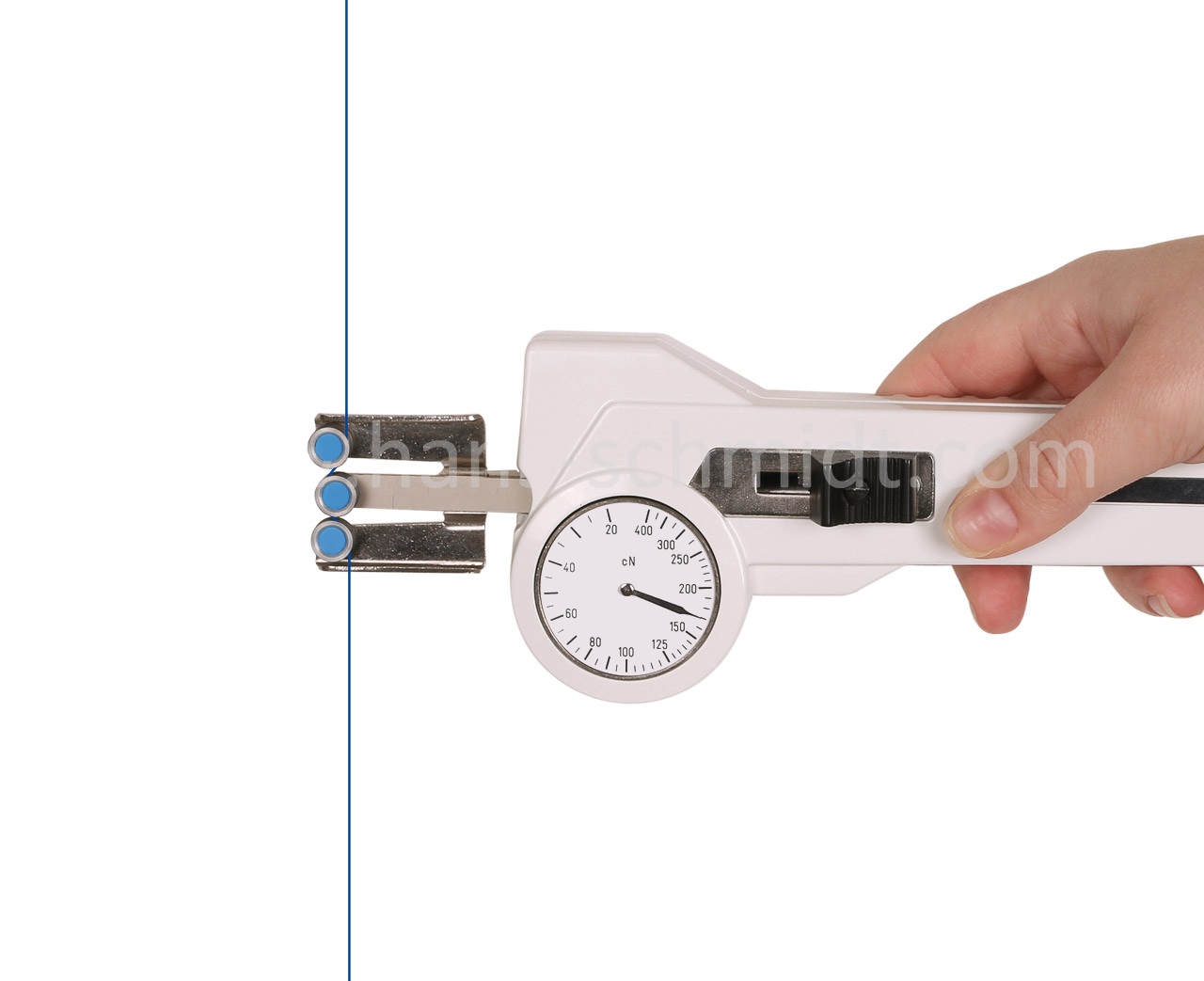

Long, flat fingers and miniature V-grooved rollers are used in applications where there is limited access space or where the running filaments are close together.

Measuring Head Dimensions
Head Width (X):
38 mm
Head Length (Y): 47 mm

Features

  • NIST-Traceable Calibration Certification OPTIONAL
  • 22 mm distance between outer rollers permits a narrow access "window" of only 1/2" x 1 - 1/2"
  • Rollers are rated for speeds up to 900 m/min. or, optionally, up to 2000 m/min (K)
  • Turned-up outer finger edges guide the running filament into the roller grooves, eliminating snags behind the rollers
  • Warranty: 1-Year
  • Made in Germany

Tension Ranges

ModelRange
DX2F-33-30 grams
DX2F-510-50 grams
DX2F-1220-120 grams
DX2F-2020-200 grams
DX2F-3020-300 grams
DX2F-4020-400 grams
DX2F-80100-800 grams
DX2F-SP50-1000 grams
DX2F-EX100-1000 grams
DX2F-200200-2000 grams
*Note: Can be calibrated for cN units, add sufix "-CN" to end of part number

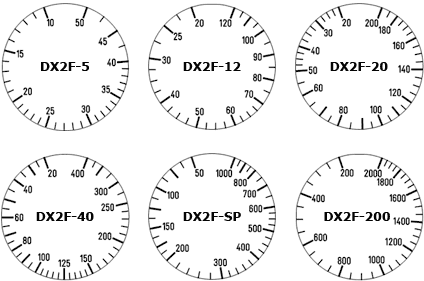

DX2F Dial Faces
*Note: not all scales are shown

Specifications

Accuracy± 1% of full scale or
± 1 graduation mark on scale
Diameter of Scale41 mm
Maximum Speed6000 m/min
Roller MaterialHard-coated aluminum (standard)
Hardened steel (Code ST)
Chromed Steel (Code W)
Plastic (Code T)
Housing MaterialDie-cast aluminum
Dimensions225 x 90 x 44 mm
(8.6" x 3.5" x 1.7")
