QC 1500 Vernier Durometer

Made in USA

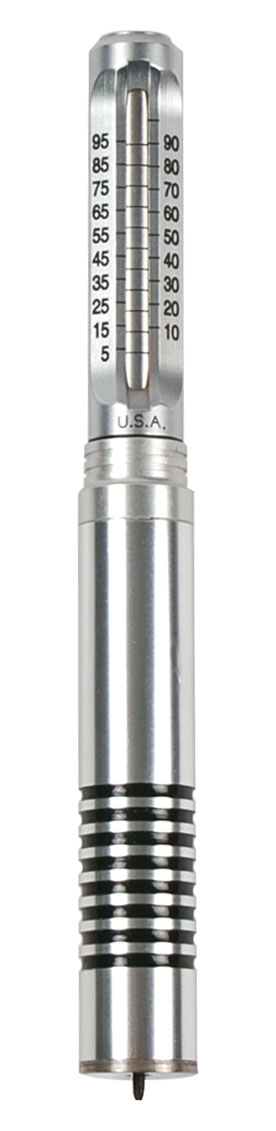

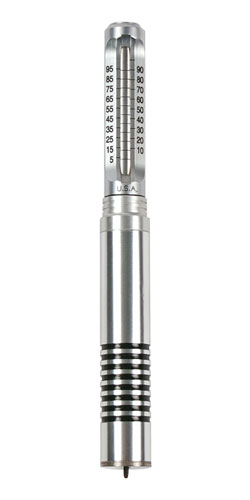

QC Model 1500 Vernier Durometer
Click images to enlarge.

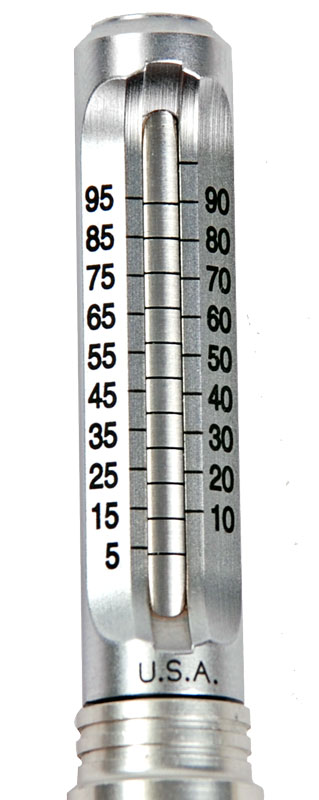

With its light weight and small size, the user can carry the QC at all times. Should it be dropped, even if not in its leather carrying case, it will not be damaged or become inoperative 99 times out of 100. The key to the gauge's durability is its sliding vernier scale- there are no cams, gears, or levers to wear out. This vernier scale holds the maximum reading, and is especially useful for testing in hard to reach areas. The vernier scale is marked in increments of 5 points, and with a little practice, one can obtain readings to within 1 point.

Features

  • Ultra lightweight
  • Excellent for hard to reach places
  • Virtually unbreakable
  • Precision construction
  • Holds reading until reset

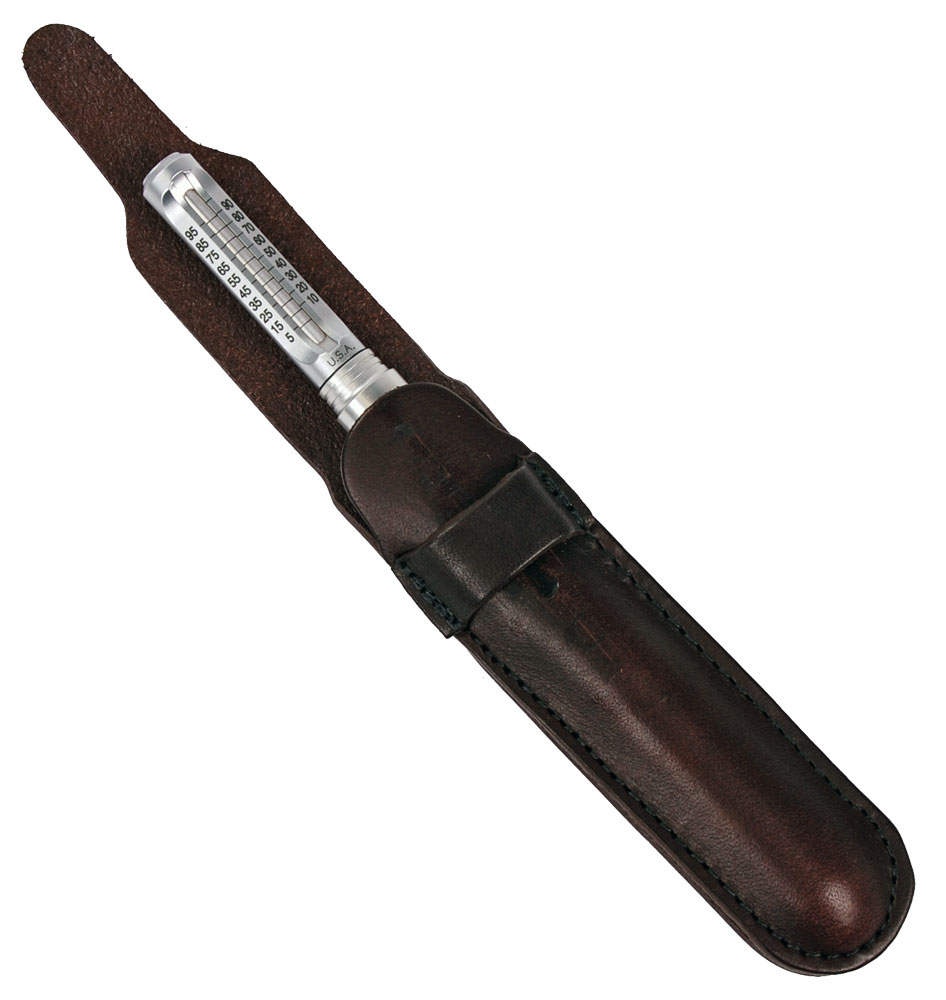

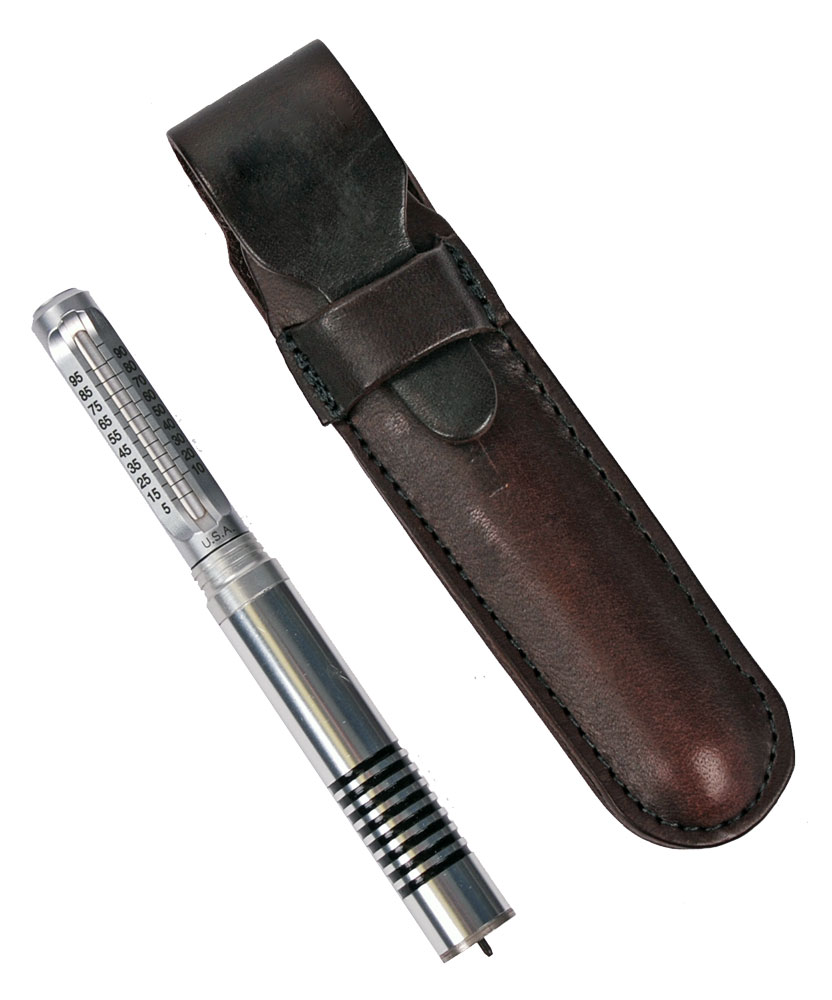

  • Furnished with a leather pouch
  • One Year Warranty

Related Products

AD-100 Durometer
Click image for more info
Durometer Tester
- Includes NIST-Traceable Calibration Certificate
- Conforms to ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 and ISO 7619. Asker C model conforms to JIS K-7312.
- 18 mm diameter footer provides stable basis for testing and conforms to all International Standards
RX-1600 Durometer
Click image for more info
Precision Durometer
- Includes NIST-Traceable Calibration Certificate
- Conforms to ASTM D-2240
tbkc-a durometer test block kit
Click image for more info
Test Function Of Durometers
- Enables user to perform a quick check for proper durometer operation
os-2 durometer operating stand
Click image for more info
Durometer Operating for use with type A, B, E and O scale durometers
- Eliminates operator error in the A, B, E and O scales
- Stainless steel and anodized aluminum construction
- Made in the U.S.A.

Specifications

Scale0-100 units
Weight1.5 ounce (42 grams)
Dimensions0.5" dia. X 4.5" (13 x 113 mm)
Housing MaterialSteel
Warranty1 Year

Downloads

Buy Now

Item Description Price
Type A Vernier Scale Durometer for Soft rubber, plastics and elastomers.
$249.00

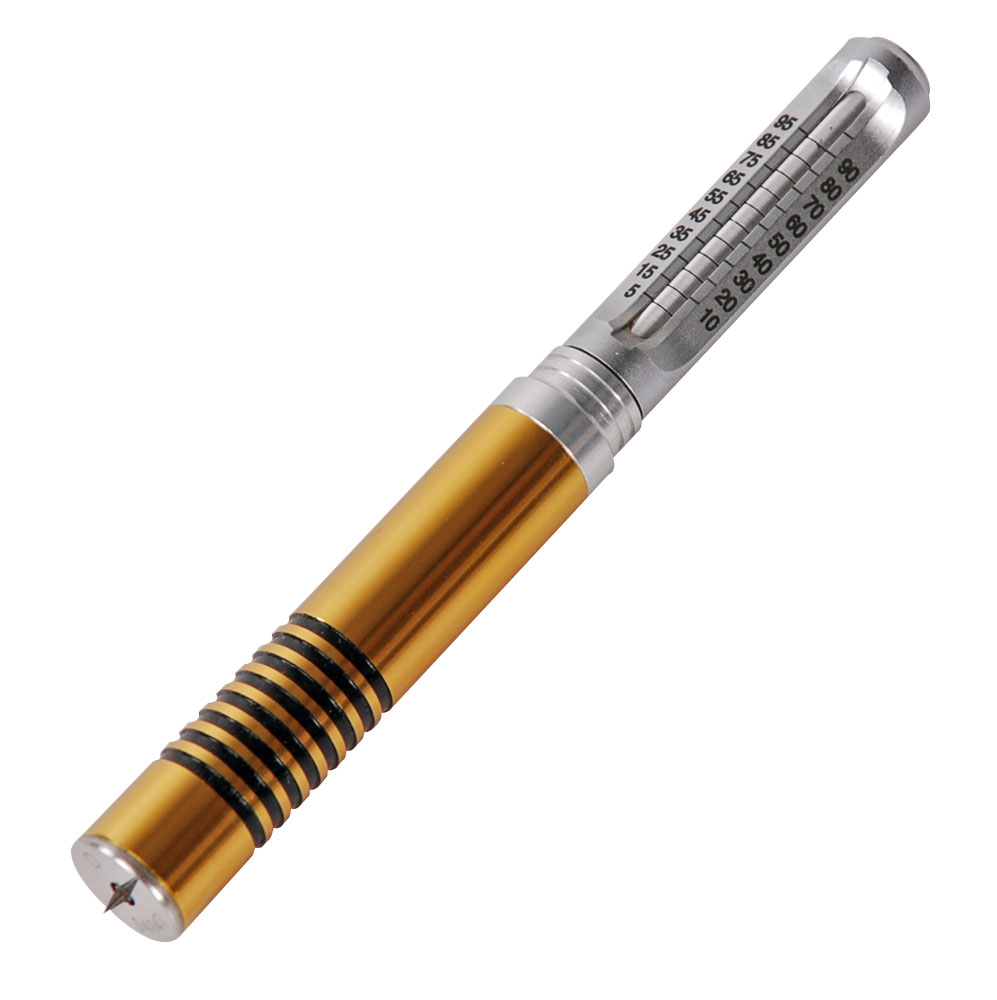

Type D Vernier Scale Durometer for Hard rubber and plastics
$249.00
Accessories
NISTCAL
NIST Traceable Calibration Certificate
$100.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
