DD-100 Digital Durometer Tester

Made in USA

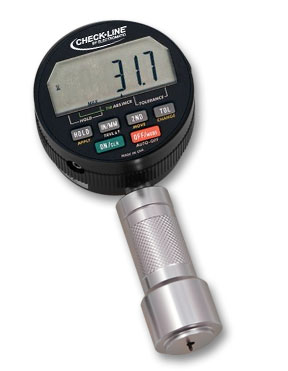

DD-100 Digital Durometer
Click images to enlarge.
Available Scales: A, B, C, D, DO, O, OO & Asker C
Conforms to: ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619. Asker C model conforms to JIS K-7312.

The Check-Line DD-100 digital durometer tester is the genesis of years of experience offering high quality Durometers to discriminating users. Featuring an 18mm footer that offers high stability and conforms to all international standards, the DD-100 is the ideal durometer for a wide range of shore hardness measuring applications.

The DD-100 is supplied with a reference test block and NIST traceable calibration certificate in foam-fitted carrying case.

Easy To Operate

digital durometer operation

Features

  • Includes NIST-Traceable Calibration Certificate
  • Supplied with reference test block
  • Can be used in any measurement orientation as gravity does not affect readings
  • High and low buttons for setting tolerance limits
  • 18 mm diameter footer provides stable basis for testing and conforms to all International Standards
  • Solid state circuitry with LCD display
  • One year warranty
  • Holds Peak reading until reset
  • 0.1 Unit Resolution
  • Supplied in custom fit carrying case with AC-Adapter
  • Conforms to ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619. Asker C model conforms to JIS K-7312.

Related Products

Click image for more info
Test Function Of Durometers
- Enables user to perform a quick check for proper durometer operation
Certified Durometer Test Disks - DCD-KIT
Click image for more info
DCD
Certified Durometer Test Disks
AD-100 Durometer
Click image for more info
Durometer Tester
- Includes NIST-Traceable Calibration Certificate
- Conforms to ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 and ISO 7619. Asker C model conforms to JIS K-7312.
- 18 mm diameter footer provides stable basis for testing and conforms to all International Standards
Click image for more info
Remote Readout Data Collection App
- Intuitive Android App
- Simultaneous Connection of Up to Four Devices (Durometer, Indicator, Caliper, Micrometer)

Durometer Test Stands

AD-100 Durometer mounting in optional test stand We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. Click here for more info on Durometer Test Stands.

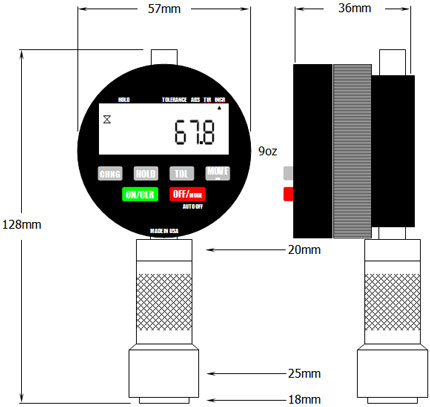

Dimensions

DD-100 Digital Durometer Dimensions

Complete Kit

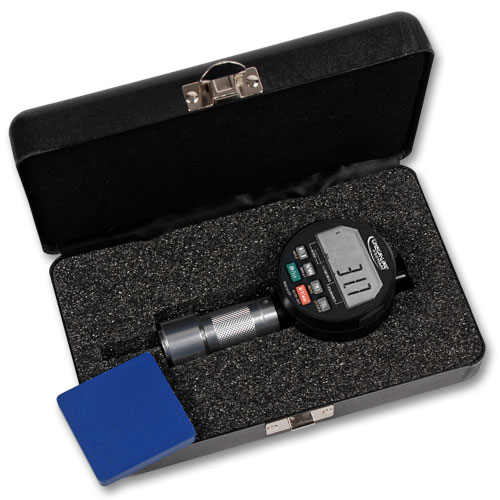

The DD-100 is supplied as a complete kit including the durometer, 115V AC Adapter (230V AC Adapter is OPTIONAL), test block, instruction manual and calibration certificate in a foam-fitted metal carrying case.
The DD-100 is supplied in a foam-fitted carrying case

Downloads

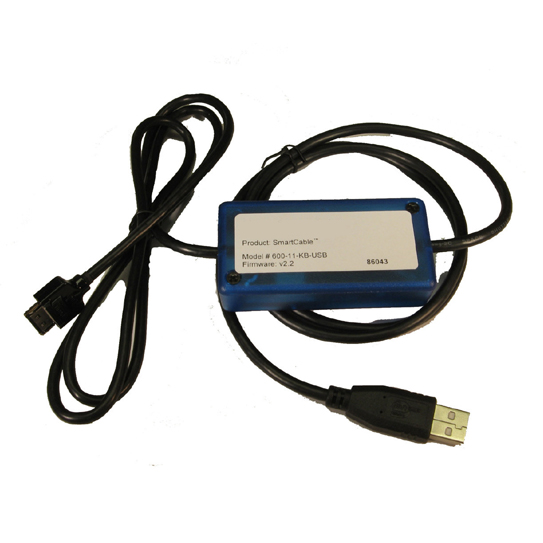

DD-DB1 - "Smart" USB Cable

The DD-DB1 "Smart" USB cable connects the durometer to a computer. The output of the SmartCable Keyboard is a standard USB 2.0 keyboard signal. Connecting the SmartCable Keyboard with its built-in keyboard wedge to a computer will allow the SmartCable to be identified as a keyboard device that can send data to any Microsoft Windows application - no software wedge required. The SmartCable Keyboard will make the gauge readings appear as if they were typed in using a standard keyboard - eliminates data collection errors. If you want to collect data into a Microsoft Excel spreadsheet, simply select the cell where you want the data to appear.

Specifications

Measuring Range0 - 100 Units
Resolution0.1 Units
Accuracy±1 durometer unit (A,B,C,D,O,DO & Asker C)
±2 durometer units (OO)
Tolerance± 0.5 at "100" and -0 +1 at "0"
LCD Size8 mm
Dimensions128 x 57 x 36 mm
Weight235 grams (8.4 oz.)

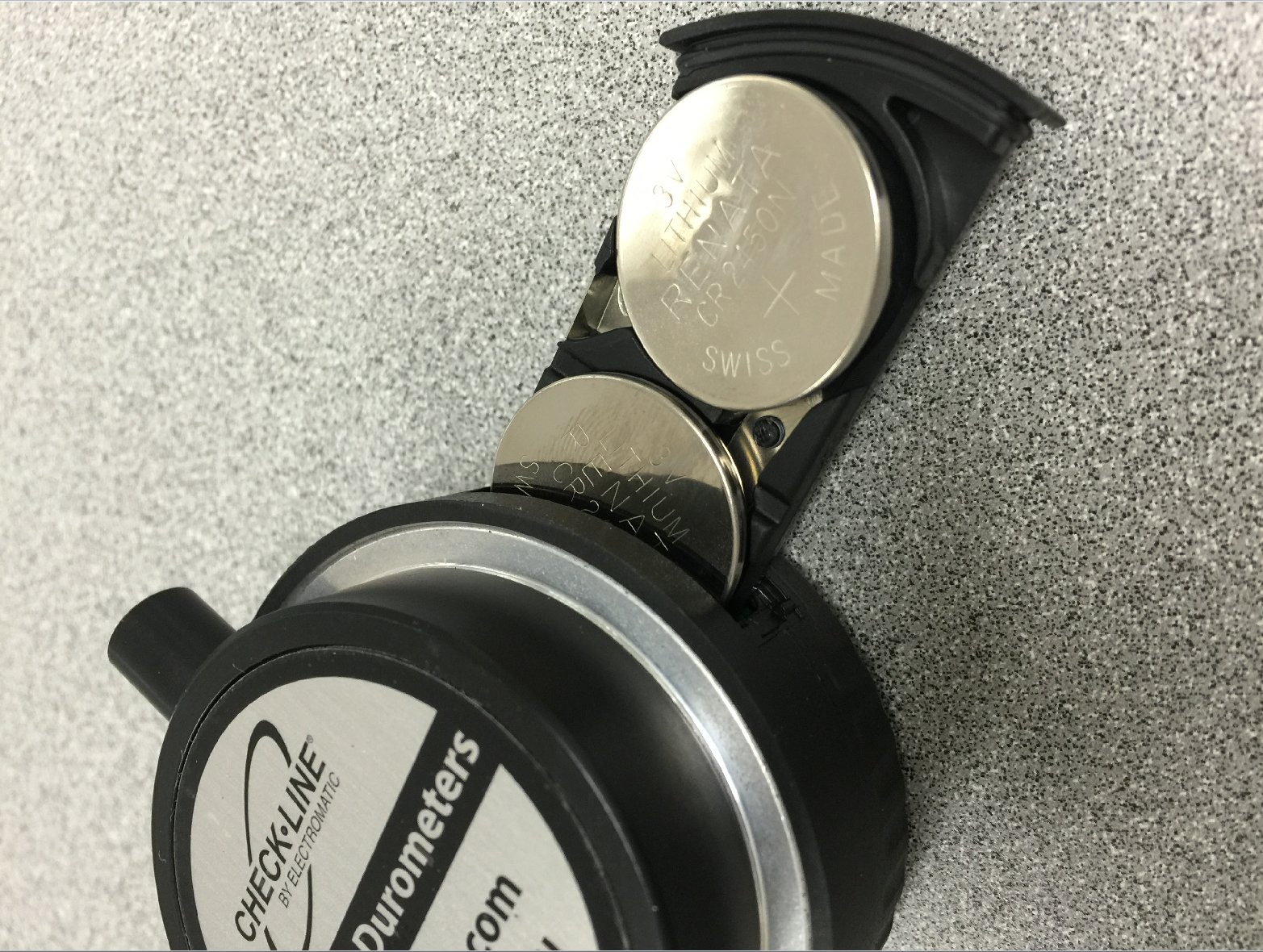

Power Supply(2) 3V CR-2450 Batteries
115V AC Adapter Included. 230V AC Adapter Optional
Warranty1 year
* Noteper ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.
Conforms ToASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619. Asker C model conforms to JIS K-7312.
Mounting Thread5/16-40
Conformance to International Standards
ModelASTM D2240DIN 53505ISO 868ISO 7619
DD-100-AXXXX
DD-100-BX
DD-100-CX
DD-100-DXXXX
DD-100-DOX
DD-100-OX
DD-100-OOX

Buy Now

Check the items you would like to purchase then click "Buy Now"
  Item Description Price
Type A Digital Durometer for Soft rubber, plastics and elastomers.
$995.00
Type B Digital Durometer for Harder elastomers and plastics. Use above 93 A scale.
$995.00
Type C Digital Durometer for Medium hard elastomers and plastics.
$1,095.00
Type D Digital Durometer for Hard rubber and plastics
$995.00
Type DO Digital Durometer for Dense granular material and textile windings.
$1,095.00
Type O Digital Durometer for soft elastomers below 20 A scale
$1,095.00
Type OO Digital Durometer for Light foams, sponge rubber gels and animal tissue.
$1,095.00
Asker C Digital Durometer normally used on sneaker foam
$1,095.00
Accessories
G11-0012
115V AC Adapter for RX-DD / DD-100 / MTG
$40.00
G11-0014
220V AC Adapter for RX-DD / DD-100 / MTG
$105.00
DD-DB1
"Smart" USB Data Transfer Cable, Sends data to any Windows program with press of a button
$345.00
G13-0055
USB Data Transfer Cable from DD-100 or RX-DD Digital Durometers to a PC for transfer to a Wedge or Data Collection program purchased from a 3rd party
$95.00
Constant Load Weight for OO and OOO Durometers, Top Mount
$125.00
