DTSF Optic Fiber

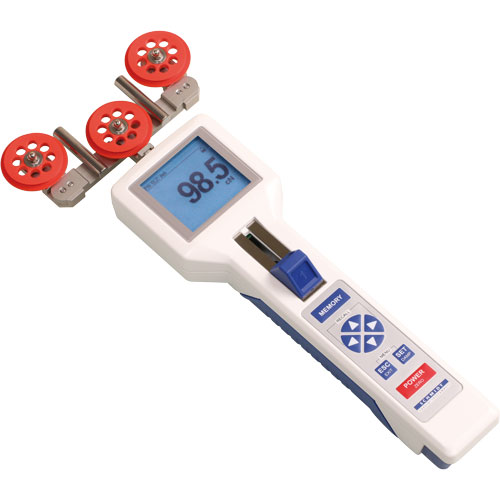

Hand-Held Digital Tension Meter

Made in Germany
Click images to enlarge.
3 Tension ranges available from 200 g up to 2000 g
32 mm Diameter Lightweight Rollers minimize bend on fragile materials
(Rollers are offered in Hardcaot Anodized Aluminum or Delrin Plastic)

Features

  • 32mm diameter V-grooved rollers are lightweight & ball bearing mounted for material speeds up to 4000 m/min
  • Large bending radius assures gentle handling of the material (rollers in Hardcoat Anodized Aluminum or Delrin Plastic)

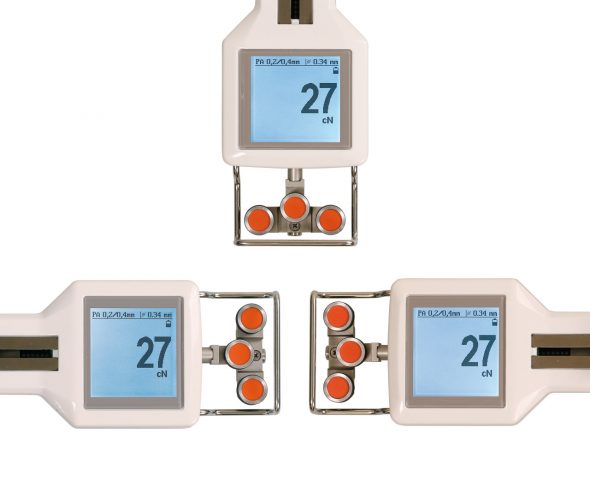

  • Large, backlight LCD-display rotates in 90° steps for optimal viewing
  • 3 different display modes:

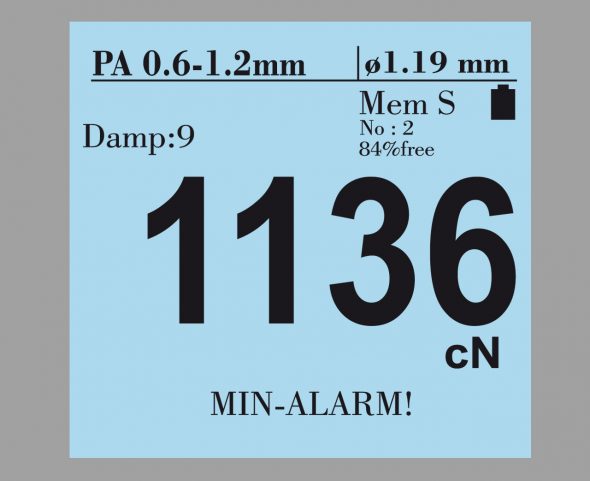

    – numeric

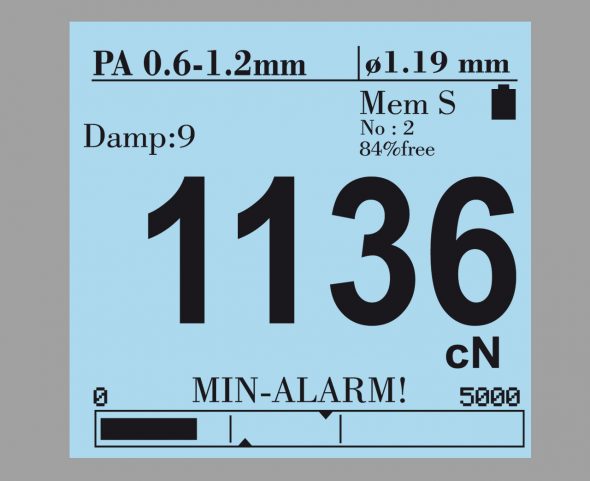

    – numeric with bargraph

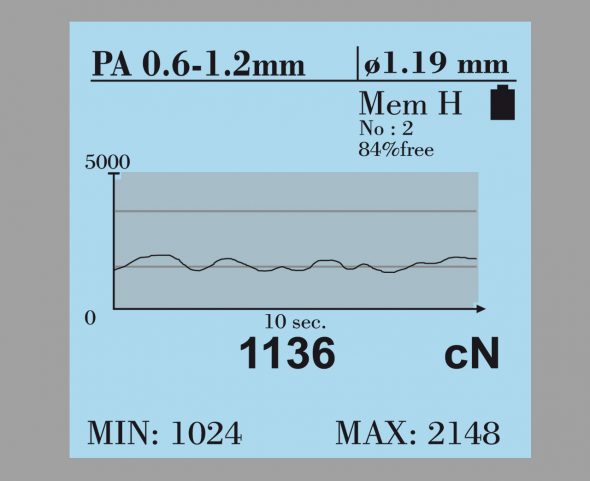

    – numeric with graph (Time-Tension)
  • Automatic "Zero-Setting" in all measuring positions using built-in gravity sensor
  • 4 Seperate Calibration Material memory locations for custom calibrations (can be performed by end-user and saved with alpha-numeric name)
  • User-set Min and Max alarms with indication on LCD if reading is out of limits
  • High speed internal data sampling (8 kHz) for capture of accurate Min & Max Peaks
  • User-Selectable units of measurement: cN, daN, g, kg, N, lb
  • Storage of Min, Max and Last reading as well as Hi-Peak, Low-Peak, average and standard deviation
  • Setup parameters can be password protected so they are not accidentally changed by the user
  • Rugged aluminium housing with rubberized handle provides a secure and comfortable grip
  • Rechargeable Lithium Polymer Battery provides 40 hours of continuous operation
  • CE certified with 1-Year Warranty
  • NIST-Traceable Calibration Certification in optionally available

Tension Range

ModelTension RangeResolutionMeasuring Head Width*Factory Calibration Material ***
DTSF-2001 – 200.0 grams or cN0.1 grams or cN
140 mm
0.12 mm Ø (PA)
DTSF-5001 – 500.0 grams or cN0.1 grams or cN
140 mm
0.20 mm Ø (PA)
DTSF-100010 – 1000 grams or cN1 grams or cN
140 mm
0.30 mm Ø (PA)
DTSF-200020 - 2000 grams or cN1 grams or cN
140 mm
0.50 mm Ø (PA)
* Outer distance between outside guide rollers
** Suitable for 95 % of applications
*** PA is Polyamide Monofilament

Roller Guide

Order-CodeLine Speed vmax. … m/minRoller Material
Standard4000Hard-coated aluminium
Code T4000Plastic (PVC) red

Options

Option MH

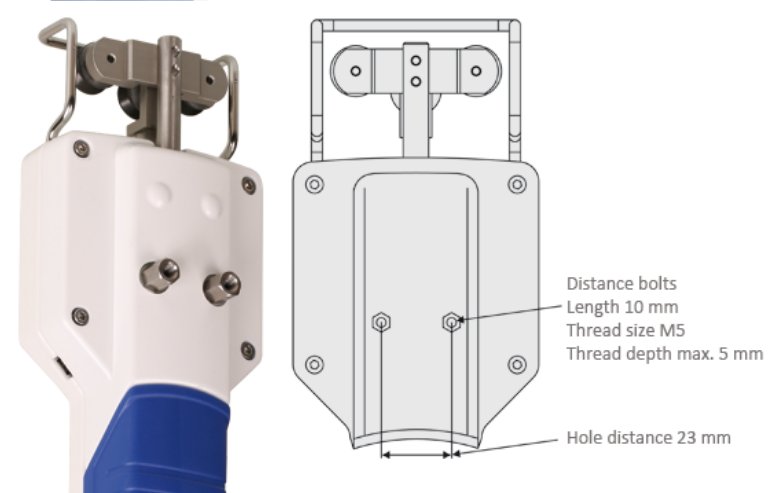

for stationary use. With distance bolts with M5 female thread on the rear side.

Option MH for stationary use. With distance bolts with M5 female thread on the rear side.

Dimensions

Downloads

Complete Kit

Tension meter DTSF with carrying case, accumulator and AC adapter with country adapters (EU, US, UK), Certificate of compliance with the order 2.1 according EN 10204 free of charge, operating instruction in german or english (as requested)

Specifications

Calibration:According factory calibration procedure
Accuracy:For PA from 5 % up to 100 % FS*
: ± 0.5 % FS* ± 1 digit
remaining tension range and other calibration materials:
±3 % full scale and ±1 digit
Memory for material curves:1 for factory calibration plus 4 for customized calibrations
Measuring units:Tension: cN, daN, g, kg, N, lb (user-selected)
Thickness : mm, inch (user-selected)
Overrange:Approx. 10 % FS*, full scale, without accuracy guarantee
Overload protection:100 % full scale
Measuring principle:Strain gauge bridge
Signal processing:Digital, 16 bit A/D converter
Measuring frequency:Max. 1 kHz (1000 measurings/sec.), intern 8 kHz
Measuring roller deflection:Max. 0.2 mm
Display:Graphic LCD, Backlit (user-set: on/off/auto)
3 different displays:Numeric,
Numeric with graph (time-tension)
X-Y-diagram
Display update rate:Approx. 2 times per second
Memory:MIN, MAX, PEAK, AVG and LAST
Damping:User-adjustable electronic damping (averaging)
calculated by [X-Values OLD + Y-Values NEW] ÷ 9
Cal. Adjustment:± 10 steps in 1 % increment
Thickness compensation:Max. 2.5 mm (not available for all models)
Auto power off:Approx. 3 minutes of non-use
Temperature coefficient:Gain: less than ± 0.01 % FS* /°C
Zero point:less than ± 0.03 % FS* /°C
Temperature range:10 – 45 °C
Air humidity:85 % RH, max.
Power supply:Rechargeable Lithium Polymer Battery provides 40 hours of continuous operation, charging time approx. 3-1/2 hours includes AC-Adapter/Charger 100 – 240 V AC (with EU, USA, UK plug adapter)
Housing material:Die-cast aluminium
Weight, net (gross):approx. 845 g / 1520 g
Replacement BatteryE08711-X
Replacement ChargerUSB-MINI-CHARGER
