DTSB Narrow Tape/Tow

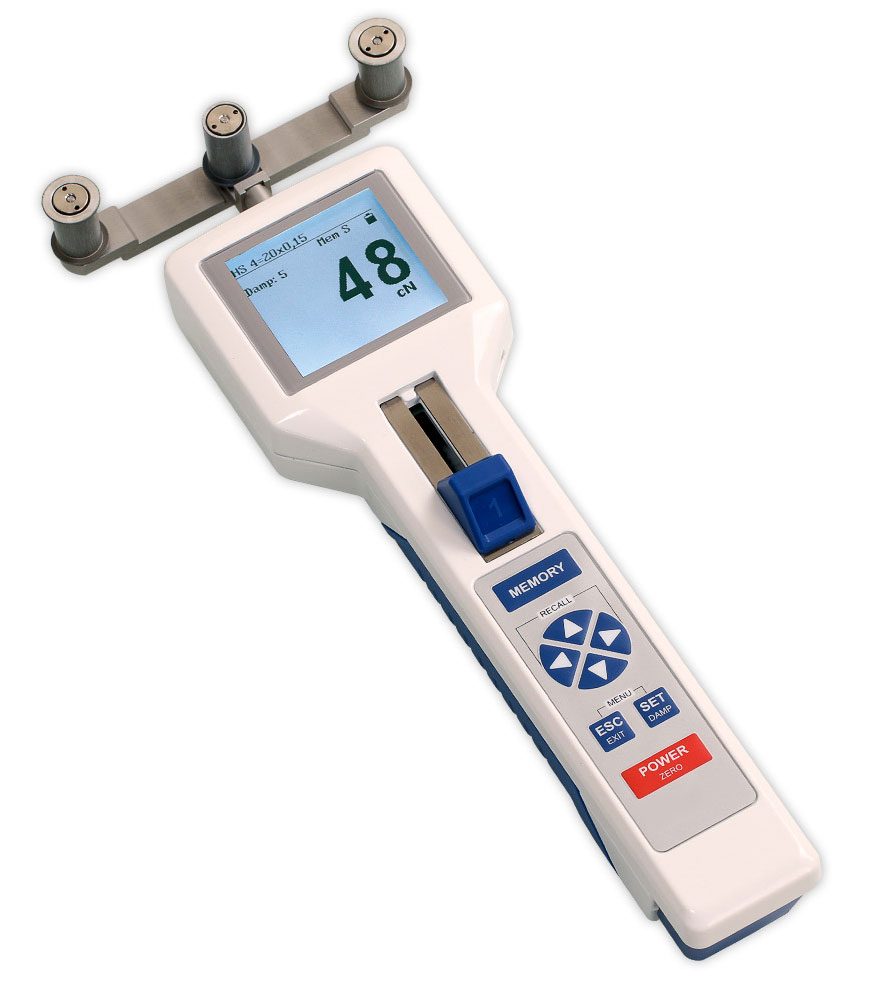

Digital Hand-Held Tension Meter

DTSB Digital Tension Meter for measuring tensions of textile ribbons, films, foils, fibre bunches etc.
Click images to enlarge.
The Checkline stationary electronic tension sensor for measuring tensions of textile ribbons, films, foils, tows, rovings, fiber bunches and more.
10 Tension ranges available from 5.0 - 500 cN up to 0.5 - 50 daN
Electronic tension meter for applications in textile and wire industry.
Versatile applicable hand-held unit.

Features

  • NIST-Traceable Calibration Certification in optionally available
  • Dual-flanged outer guide rollers with various widths, from 7 mm to 30 mm (single-flanged rollers optional)
  • For certain tension ranges and materials, it is possible to supply roller widths of 41 mm. Inquire.

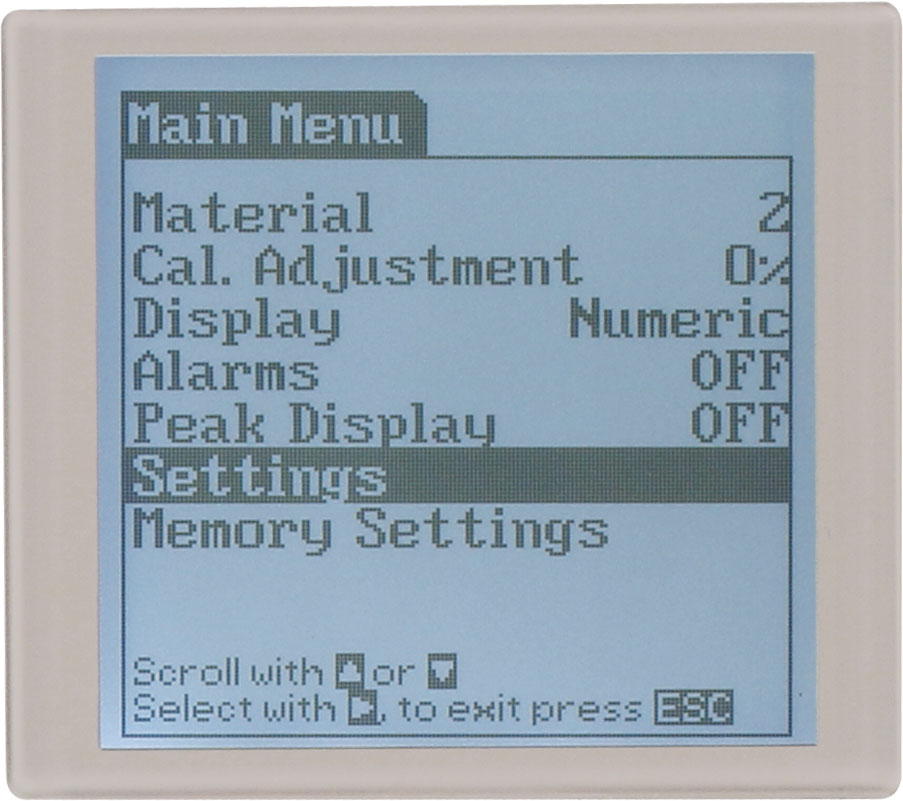

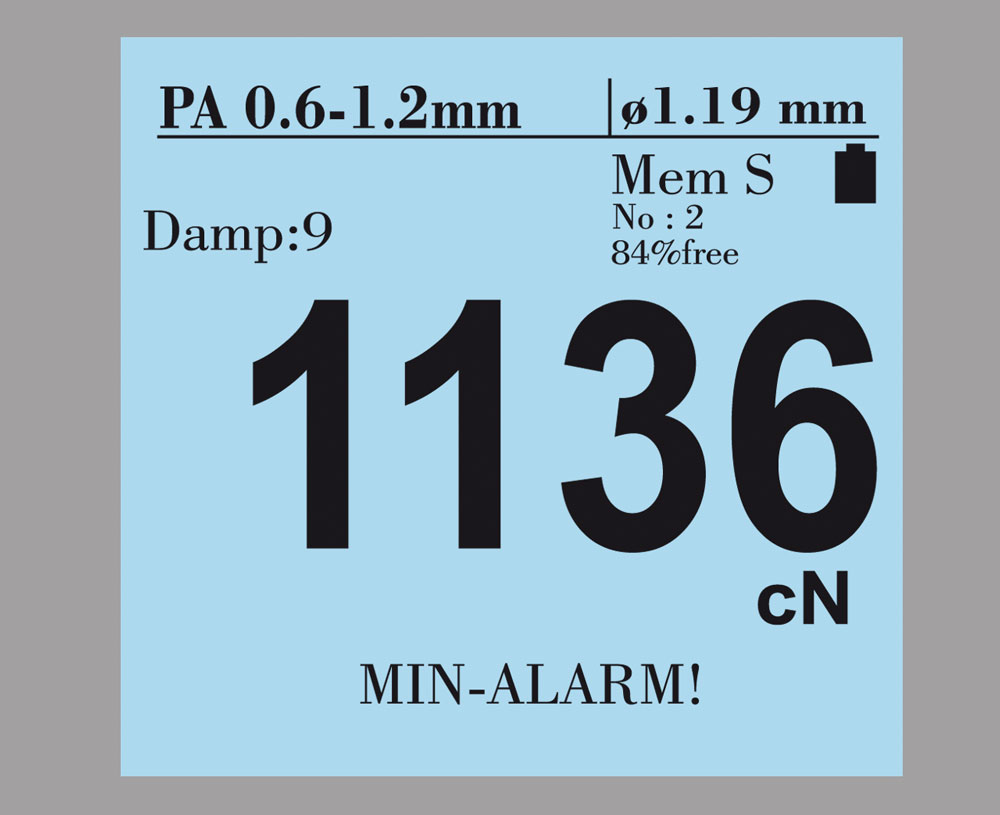

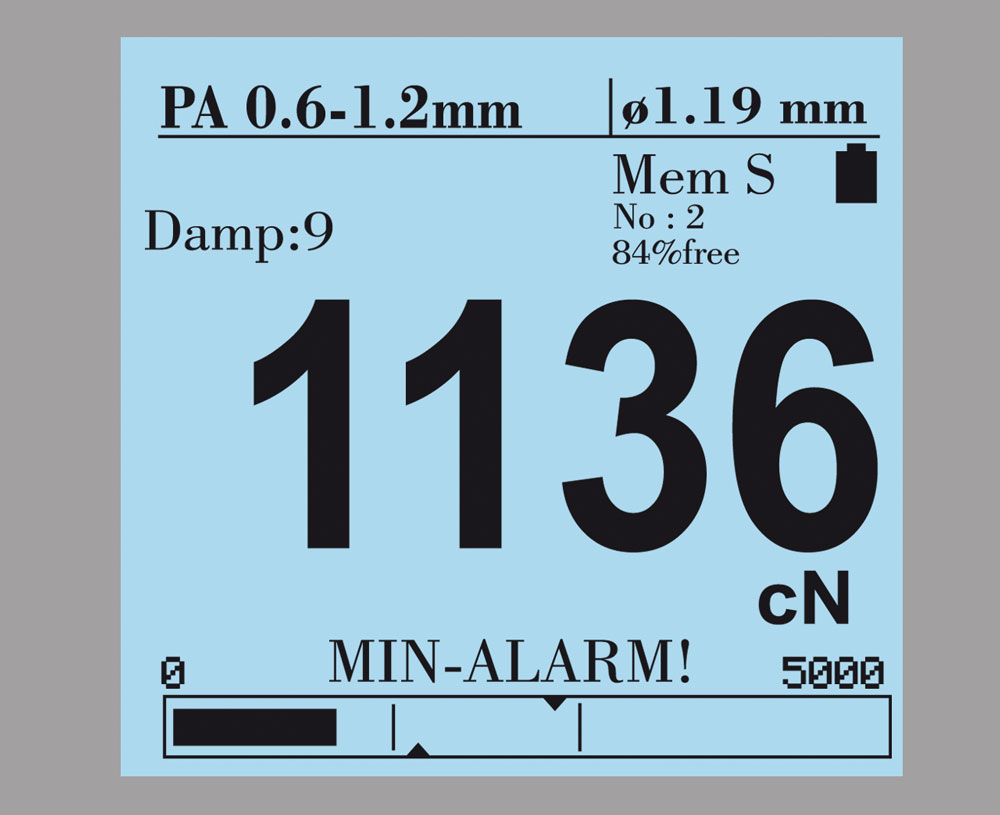

  • Large, backlight LCD-display with 3 different displays: numeric, numeric with live load bar, numeric with graph (time-tension)

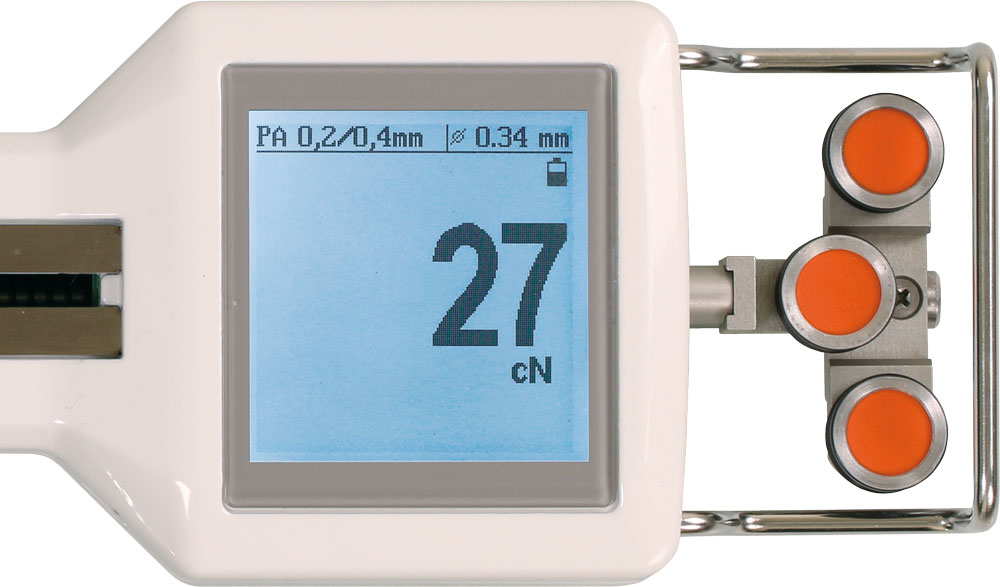

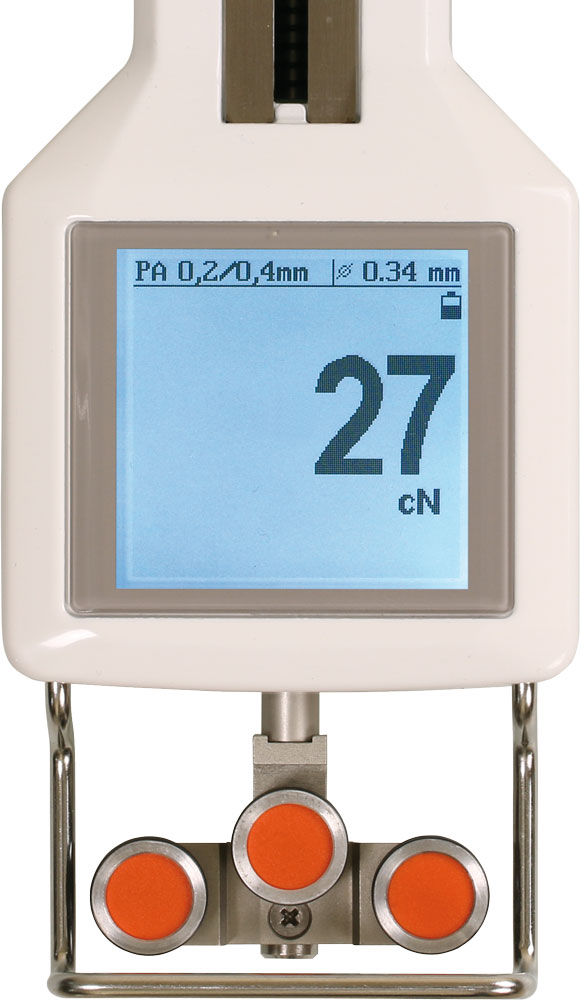

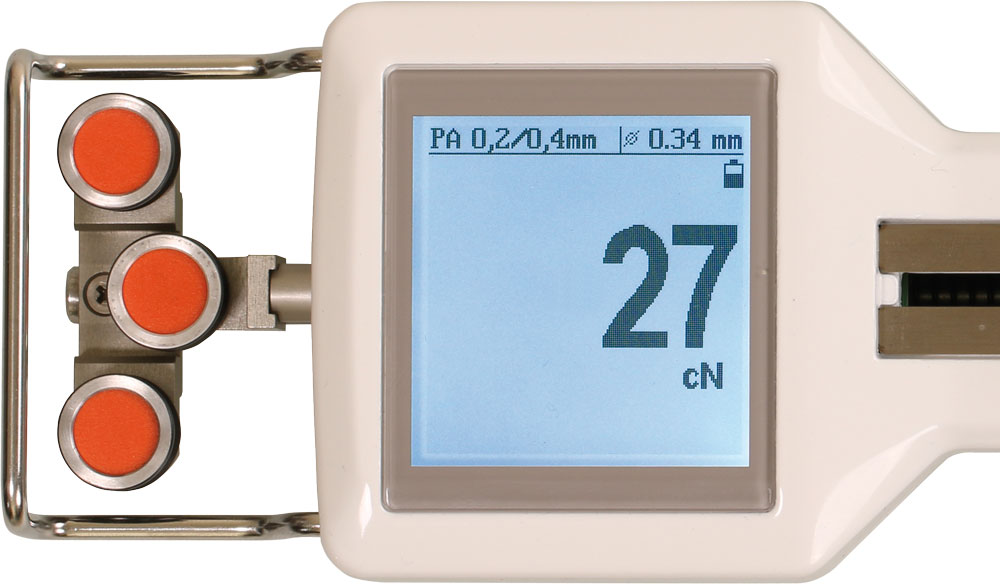

  • Display automatically rotates in 90° steps (or can be locked in any desired position)
  • Built-in Diameter Compensator System is used to adjust calibration curve for highest accuracy. Diameter is set with wheel and shown on display
  • Automatic "Zero-Setting" in all measuring positions using built-in gravity sensor
  • 4 Seperate Calibration Material memory locations for custom calibrations (can be performed by end-user and saved with alpha-numeric name)
  • Storage of Min, Max and Last reading as well as Hi-Peak, Low-Peak, average and standard deviation
  • High speed internal data sampling (8 kHz) for capture of accurate Min & Max Peaks
  • User-set Min and Max alarms with indication on LCD if reading is out of limits
  • User-adjustable DAMPING is used to minimize tension fluctuations
  • User-Selectable units of measurement: cN, daN, g, kg, N, lb
  • Setup parameters can be password protected so they are not accidentally changed by the user
  • Re-chargeable Lithium Polymer battery lasts 40 hours (continuous use, approx)
  • Rugged aluminium housing with rubberized handle provides a secure and comfortable grip
  • CF Carbon-Optimized Coating Option (TopoCrom, Orange Peel) offered on 10 mm, 15 mm, 20 mm or 30 mm wide rollers
  • Warranty: 1-Year
  • Made in Germany

Tension Range

ModelTension Range*ResolutionMeasuring Head Width**Roller Widths (mm)
DTSB-5005.0 - 500 grams or cN0.1 g or cN55 mm7, 10, 15, 20 mm
DTSB-100050 - 1000 grams or cN1 g or cN55 mm7, 10, 15, 20, 30, 41 mm
DTSB-2000100 - 2000 grams or cN1 g or cN55 mm7, 10, 15, 20, 30, 41 mm
DTSB-2500150 - 2500 grams or cN1 g or cN117 mm7, 10, 15, 20, 30, 41 mm
DTSB-4000200 - 4000 grams or cN1 g or cN55 mm7, 10, 15, 20, 30, 41 mm
DTSB-5000250 - 5000 grams or cN1 g or cN117 mm7, 10, 15, 20, 30, 41 mm
DTSB-10K0.50 - 10.00 kg or daN0.01 kg or daN117 mm7, 10, 15, 20, 30, 41 mm
DTSB-20K***1.00 - 20.00 kg or daN0.01 kg or daN167 mm7, 10, 15, 20, 30 mm
DTSB-30K***1.50 - 30.00 kg or daN0.01 kg or daN217 mm7, 10, 15 mm
DTSB-50K***2.50 - 50 kg or daN0.01 kg or daN217 mm7, 10 mm
* Factory calibration material textile ribbon or film, depending on tension range and roller width
** Outer distance between outside guide rollers
***Lever no longer required for high capacity models

Options

Option MH
for stationary use. With distance bolts with M5 female thread on the rear side.

Option MH for stationary use. With distance bolts with M5 female thread on the rear side.

Roller Guide

Roller Width Line Speed
Vmax ...m/min
Roller Material*
7 mm 1000 Hard-coated aluminium
10 mm 1000 Hard-coated aluminium
15 mm 1000 Hard-coated aluminium
20 mm 1000 Hard-coated aluminium
30 mm 1000 Hard-coated aluminium
Other roller materials (nickel-plated steel or plastic), as well as special coatings (Code CF – for carbon fibre, NAV optimized, Code KE – ceramic, Code AH – anti adhesive) are available on request.

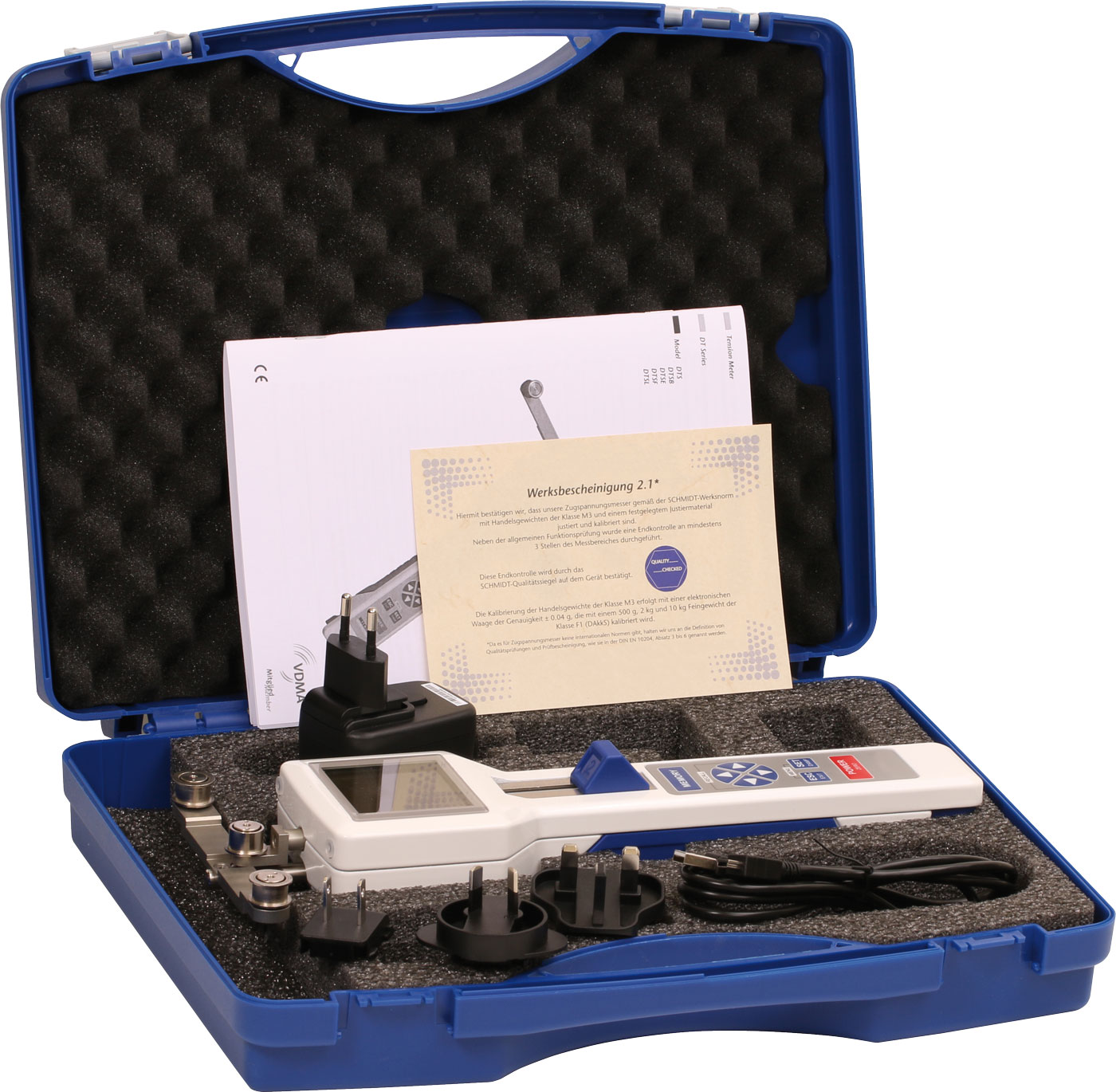

Complete Kit

Tension meter DTSB with carrying case, accumulator and AC adapter with country adapters (EU, US, UK), Certificate of compliance with the order 2.1 according EN 10204 free of charge, operating instruction

Specifications

AccuracyFor PA from 5 % up to 100 % FS*: ± 0.5 % FS* ± 1 digit remaining tension range and other calibration materials: ±3 % full scale and ±1 digit
Memory for material curves1 for factory calibration plus 4 for customized calibrations
Measuring unitsTension: cN, daN, g, kg, N, lb (user-selected)
Thickness : mm, inch (user-selected)
OverrangeApprox. 10 % FS*, full scale, without accuracy guarantee
Overload protection100 % full scale
Measuring principleStrain gauge bridge
Measuring roller deflectionMax. 0.2 mm
Signal processingDigital, 16 bit A/D converter
Measuring frequencyMax. 1 kHz (1000 measurings/sec.), intern 8 kHz
DisplayGraphic LCD, Backlit (user-set: on/off/auto)

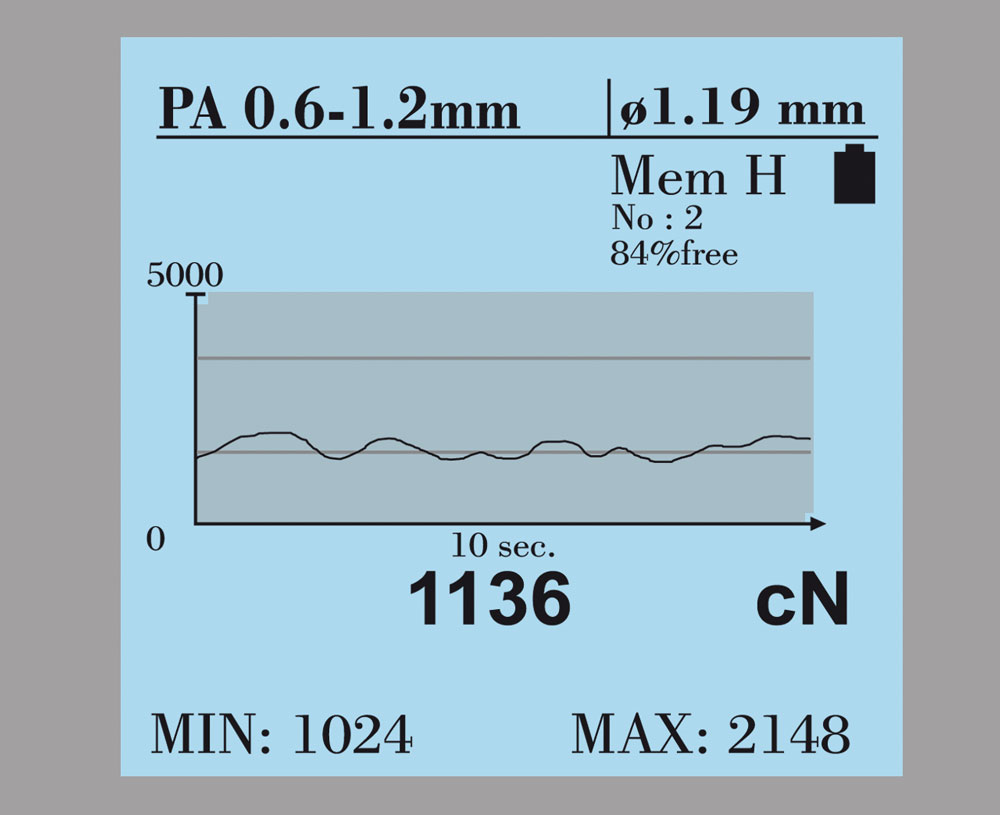

3 different displaysNumeric, Numeric with graph (time-tension), X-Y-diagram
Display update rateApprox. 2 times per second
MemoryMIN, MAX, PEAK, AVG and LAST
DampingUser-adjustable electronic damping (averaging)
calculated by [X-Values OLD + Y-Values NEW] ÷ 9
Cal. Adjustment± 10 steps in 1 % increment
Thickness compensationMax. 2.5 mm (not available for all models)
Auto power offApprox. 3 minutes of non-use
Temperature coefficientGain: less than ± 0.01 % FS* /°C
Zero point: less than ± 0.3 % FS* /°C
Temperature range10 - 45 °C
Air humidity85 % RH, max.
Power supplyRechargeable Lithium Polymer Battery provides 40 hours of continuous operation, charging time approx. 3-1/2 hours includes AC-Adapter/Charger 100 – 240 V AC (with EU, USA, UK plug adapter)
Housing materialDie-cast aluminium
Weight, net (gross)Up to DTS-50K approx. 875 g / 1550 g
DTS-60K-V1 approx. 1040 g / 2700 g
Replacement BatteryE08711-X
Replacement ChargerUSB-MINI-CHARGER
CF Coating OptionCarbon-Optimized Structured Coating (option CF) offered on 0 mm, 15 mm, 20 mm or 30 mm wide rollers. Not available on 7 mm wide roller
