Measuring range: 0 - 50 mm
Resolution: 0.1 mm

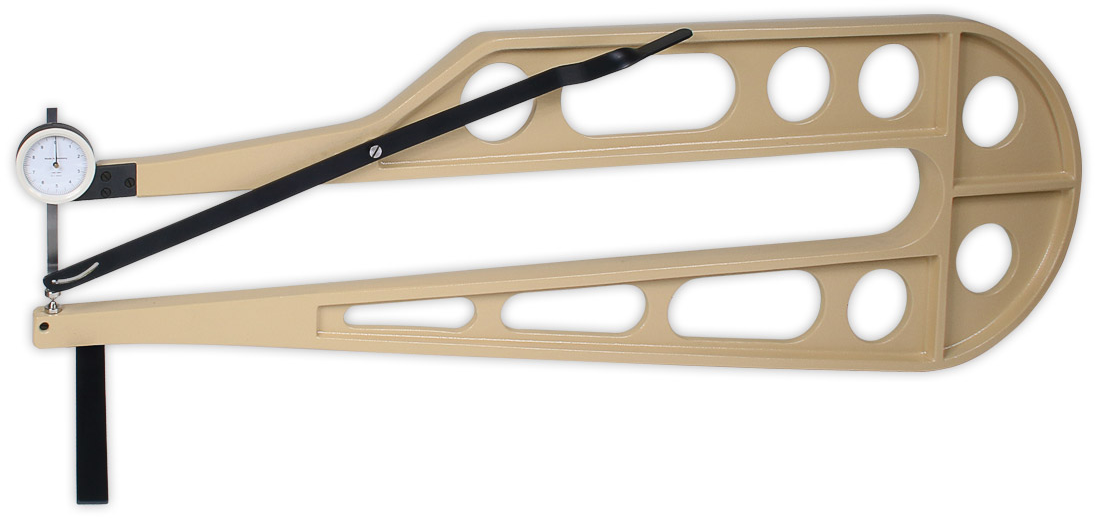

Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Self closing thickness gauge with high accuracy and resolution.
Resolution: 0.1 mm
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Self closing thickness gauge with high accuracy and resolution.
- Opening by lifting device (lever) - self closing
- Measuring by spring force
| Model | Measuring Range | Resolution | Depth of Jaw |
|---|---|---|---|
| DM-820 | 0 - 25 mm | 0.1 mm | 200 mm |
| DM-820-1 | 0 - 50 mm | 0.1 mm | 200 mm |
| DM-830 | 0 - 25 mm | 0.1 mm | 300 mm |
| DM-830-1 | 0 - 50 mm | 0.1 mm | 300 mm |
| DM-835 | 0 - 75 mm | 0.1 mm | 350 mm |
| DM-840 | 0 - 100 mm | 0.1 mm | 400 mm |
| DM-850 | 0 - 25 mm | 0.1 mm | 500 mm |
| DM-850-1 | 0 - 50 mm | 0.1 mm | 500 mm |
| DM-865 | 0 - 25 mm | 0.1 mm | 650 mm |
| DM-865-1 | 0 - 50 mm | 0.1 mm | 650 mm |
To order, please indicate the desired feeler, e.g. DM-865-1-B for gauge with feeler >B<. This means that NOT all feelers are included in the package!
 |
Feeler: A rigid leather, glass, sheet metal |
 |
Feeler: B wood, rubber, soft leather, foil, etc. |
 |
Feeler: C soft rubber, felt, fleece |
 |
Feeler: D rubber rings, round material |
 |
Feeler: E paper, cardboard, chipboard and fibreboard, plywood |
 |
Feeler: F sheet metal, glass, round material |
 |
Feeler: G very rigid material |
 |
Feeler: H foams and insulating materials |
 |
Feeler: I very soft foams and insulating materials |
 |
Feeler: M rubber sheets, felt, soft materials |
| Resolution | 0.1 mm |
| Measuring range | 50 mm |
| Depth of jaw | 650 mm |
| Measuring pressure | 2 N |
| Measuring principle | Self closing |
| Feeler shape | A/B/C/D/E/F/G/H/I/M |
| Weight, net (gross) | 1850 g (1950 g) |
