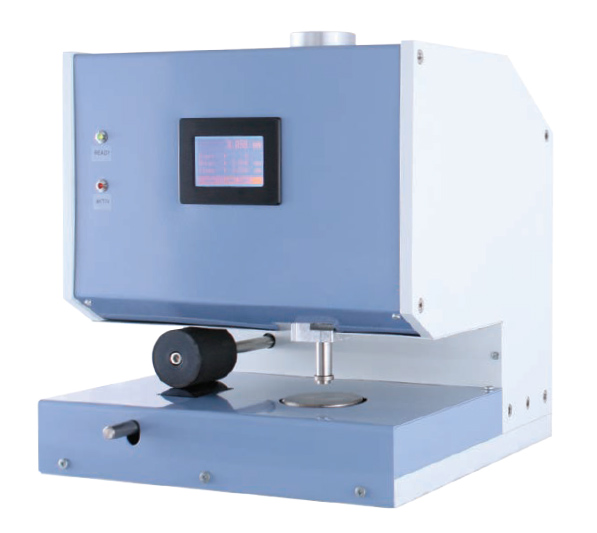

The D-2020 Series is a Motorized Auto-feed Digital Thickness Gauge for measuring according to DIN EN ISO, ASTM, and other international standards. Common applications include textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber, etc.
- Graphic display for readings and statistics
-
2 selectable modes:
"AUTO" - executing a series of measurements
"MAN" - executing a single measurement - Time saving during series measuring by ideal adjustment to the measuring problem
-
Interface:
USB for data transmission
RS 232 for printer - Touchscreen Interface
- Adjustable, automatic feed by series of measurements (travel: 10 - 100 mm, speed: slow or fast)
- Statistical analysis of series of measurement (Number of readings, average value, standard deviation)
- Additional weights for different surface pressure values are available. INQUIRE
| Model | Standard | Application | Feeler dia. (mm) | Feeler area (cm²) | Pressure |
| D2020-T | DIN EN ISO 5084 | Textiles | 50.42 | 20 | 0.1 kPa and 1 kPa |
| D-2020-V | DIN EN ISO 9073-2 | Standard fleece | 56.42 | 25 | 0.1 kPa and 0.5 kPa |
| D-2020-G1 | DIN EN ISO 964-1 | Geomaterials | 56.42 | 25 | 2 kPa and 20 kPa |
| D-2020-NW | DIN EN ISO 53855 | Non-woven textiles |
56.42 35.68 |
25 10 |
0.5 kPa and 1 kPa 5 kPa |
| D-2020-P | DIN EN ISO 53105 | Paper | 16 | 2 | 100 kPa |
| D-2020-HY | DIN EN ISO 54540 | Toilet tissue | 56.42 | 25 | 2 kPa |
| D-2020-L1 | DIN EN ISO 53326 (out of date) |
Leather | 10 | 0.785 | 50 kPa |
| D-2020-L2 | DIN EN ISO 2589 | Leather | 10 | 0.785 | 49.1 kPa |
| D-2020-Gi | Rubber | 35.68 | 10 | 5 kPa | |
| Feeler Calotte | |||||
| D-2020-F | DIN 53370 | Foils | R 30 mm | 0.5 N |
| D-2000 | D-2005 | D-2010 | D-2020 | |
|---|---|---|---|---|
| Touch screen with menu control in English or German | - | - | ||
| Seven-segment display | - | - | ||
| Display illumination | - | - | ||
| Statistics display | - | - | ||
| Automatic zero point control | - | - | ||
| Preselection of the measurment cycles | - | - | ||
| Preselection of the measuring range | - | optional | ||
| Adjustable dwell time | - | optional | ||
| Motor-driven caliper movement | - | |||
| Connection for pedal | - | |||
| Manual caliper movement via a control lever | - | - | - | |
| Automatic material infeed, adjustable | - | - | - | |
| Digital interface | ||||
| Available scale divisions | 0.001 mm, 0.01 mm | |||
| Possible measuring ranges | 0 - 10 mm, 0 - 25 mm, 0 - 50 mm | |||
| LxWxH (for 0 - 10 mm range) | 300 x 240 x 300 mm | 300 x 210 x 300 mm | 300 x 200 x 300 mm | 300 x 300 x 320 mm |
| Weight (for 0 - 10 mm range) | 22.5 kg | 23.0 kg | 24.0 kg | 31.5 kg |
| Measuring range | 0 - 10 mm, (25 mm optional, Code E) |
| Resolution | 0.001 mm |
| Accuracy | ±0.002 mm |
| Depth of jaw | 160 mm |
| Measuring system | Capazitive -> Sylvac |
| Display | Graphic display Touchscreen |
| Measuring unit | mm or inch (switchable) |
| Stroke in mm | Level 1 = 2.0, level 2 = 3.5, level 3 = 5.0, level 4 = 6.5 and level 5 = 10.5 mm (full measuring range) |
| Feed | 10, 20, 25, 40, 50, 60, 80 and 100 mm |
| Residence time | 1 - 60 seconds |
| Number of measuring | Up to 50 per test series |
| Feeler shape and surface pressure | According international standards DIN, EN and ISO |
| Output signal | RS 232 for printer and USB for PC |
| Temperature range | 10 - 45 °C |
| Air humidity | Max. 85 % r.H |
| Dimensions | 300 x 300 x 320 mm (LxWxH) |
| Weight, net (gross) | approx. 35 kg (approx. 38 kg) |
