DSV Vector Force Gauge

Made in Japan
DSV Vector Force Gauge
Click images to enlarge.

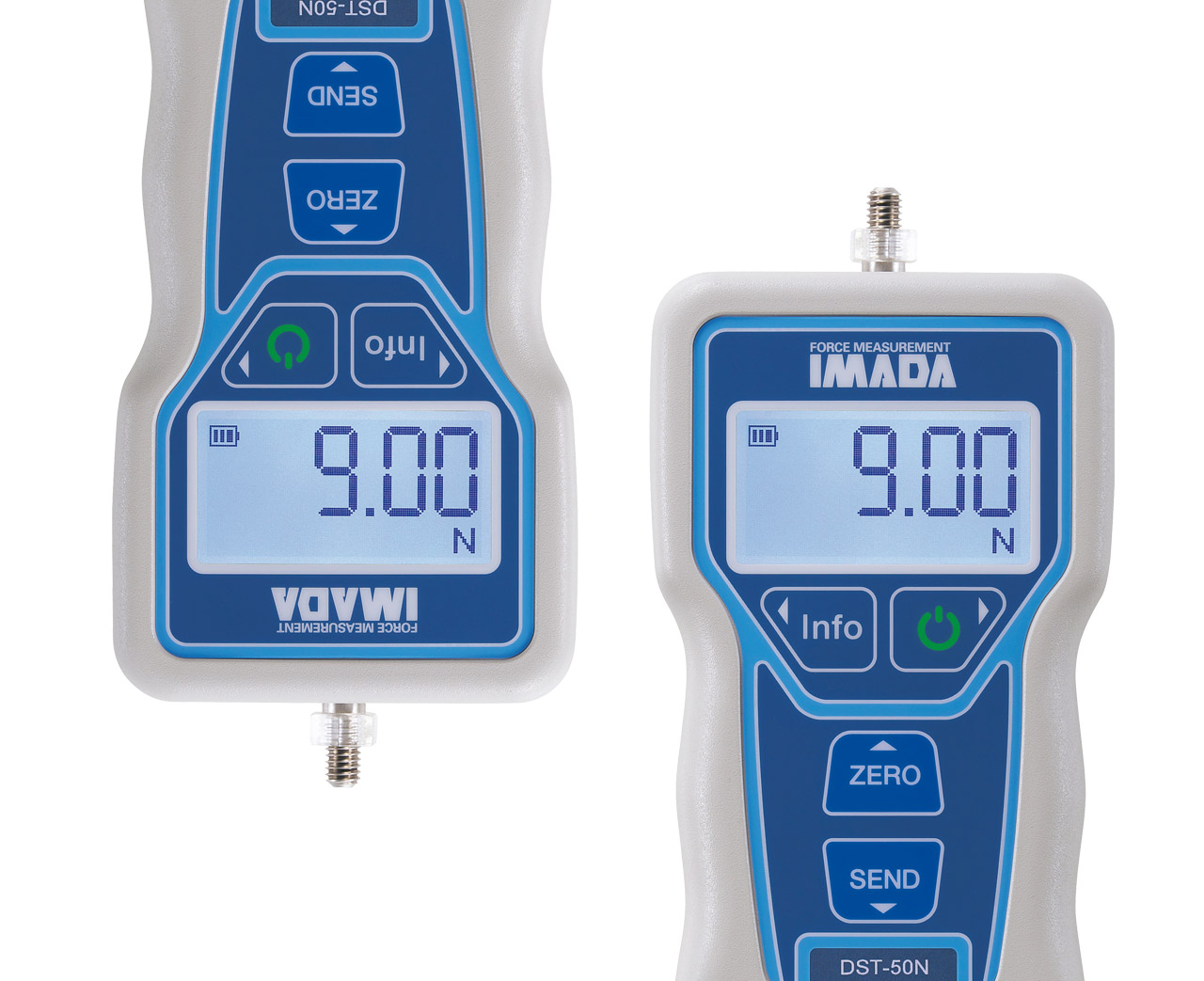

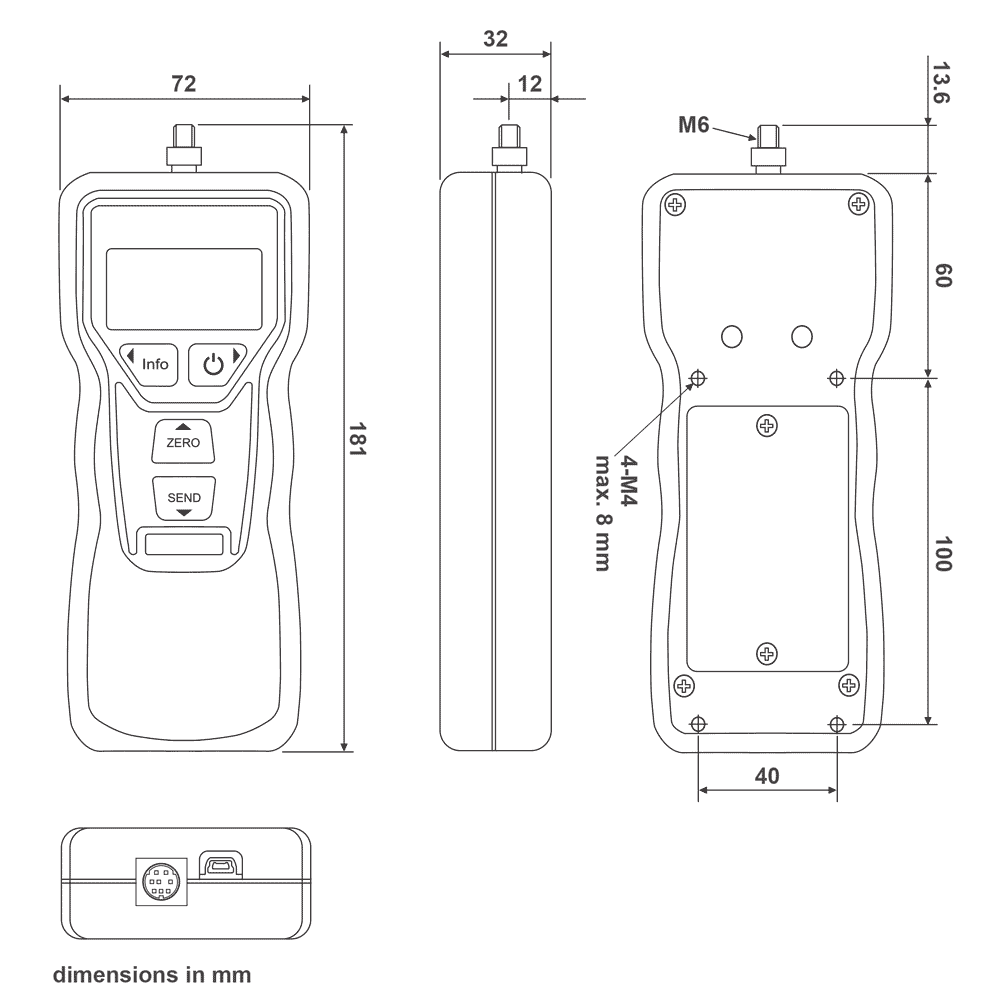

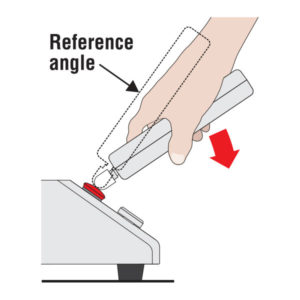

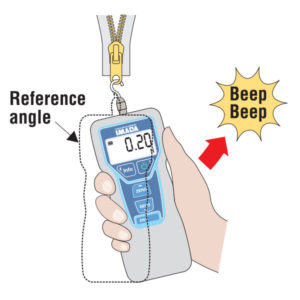

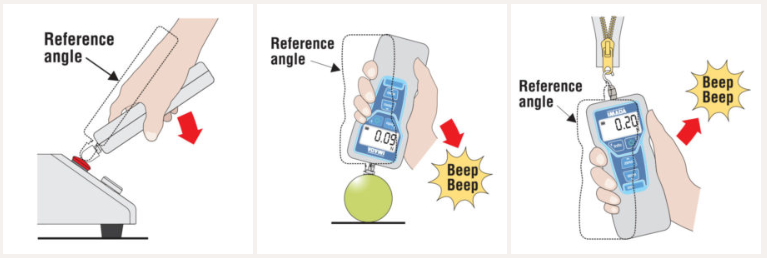

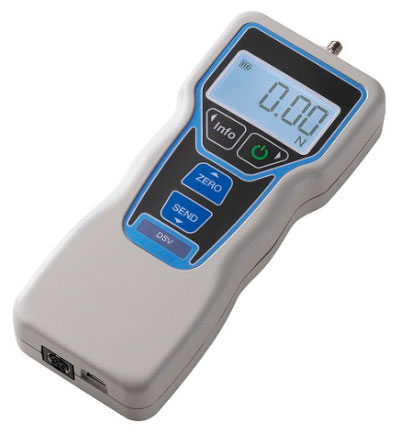

The DSV digital vector force gauges are simple-to-use basic gauges featuring user-friendly menu operation. The built-in tilt sensor with audible alert warns users of deviations from the reference angle. Selections including unit and measuring mode can be locked to prevent accidental changes.

dsv force gauge operation

DSV Operation Video


  • Includes NIST Traceable Calibration Certificate
    ISO-17025 calibration certificate option available
  • Tilt Sensor: Alerts user to deviation from the reference angle
  • Backlit LCD display with user-friendly menus
  • Ergonomic, durable, heavy-duty metal construction
  • 30,000/sec ultra-high sampling rate
  • 1,000 Data memory; automatically calculates Max, Min, Avg statistics
  • USB and RS-232C output
  • Selectable real time or peak mode operation
  • Setting security lock prevents accidental changes
  • Overload capacity 200% F.S.; Display flashes at overload limit
  • Runs on internal Ni-MH batteries (user replaceable) or AC adapter; Charges with USB port or portable charger
  • 2-Year Warranty


DSV-0.47 ozf
200 gf
2 N
0.001 ozf
0.1 gf
0.001 N
DSV-117 ozf
500 gf
5 N
0.01 ozf
0.1 gf
0.001 N
DSV-44.4 lbf
2 kgf
20 N
0.001 lbf
0.001 kg
0.01 N
DSV-1111 lbf
5 kgf
50 N
0.01 lbf
0.001 kgf
0.01 N
DSV-4444 lbf
20 kgf
200 N
0.01 lbf
0.01 kgf
0.1 N
DSV-110110 lbf
50 kgf
500 N
0.1 lbf
0.01 kgf
0.1 N
DSV-220220 lbf
100 kgf
1000 N
0.1 lbf
0.1 kgf
1 N

Optional Accessories

Force Logger (optional)

Available to users who need to collect peak data. Please inquire.

SW-1 Data Acquisition Software (optional)

Capture and analyze real-time data from any Imada gauge with a USB or RS-232 port directly into any Windows program. Log measurements and generate a profile graph plus statistical information. Control the gauge functions from your computer.

DB-1 Data Input Button (optional)

DB-1 is a compact, one channel interface that enables users to send measurement data to a PC running SW-1X, Imada data acquisition software or other software. The data input button ‘zeros’ the gauge after sending data to the PC eliminating the need to reset manually.

OH-1 Handle (optional)

Facilitates measurement of heavy loads.

Standard Attachments

Special Attachments


Complete Kit

All DSV gauges are sold in a complete kit with gauge, hard plastic carrying case, a set of six standard attachments, NIST Traceable Calibration Cert, Instruction Manual and AC adapter/charger.


Tilt AlarmOFF, Strict (4°), Normal (8°) or Loose (18°)
Accuracy± 0.2% F.S., ± 1 LSD
Selectable Unitslbf(ozf), kgf(gf) or Newtons
Display4 digit backlit LCD
Overload CapacityApprox. 200% of F.S.
Overload AlarmAudible alarm at 90% of capacity; Audible alarm and indicator flashes beyond 110% of F.S.
Sampling Rate30,000/second
Internal Memory1,000 data with statistics
Battery LifeApprox. 30 hours backlight off Approx. 14 hours backlight on 4.5 hours required for full charge
Battery IndicatorBattery icon displays three levels of charge
SetpointsProgrammable high/low setpoints with OK indicator
OutputsUSB, RS-232C
Operating Temp.32° to 100°F (0° to 40°C)
Accessories IncludedAC adapter, Attachments (hook, flat tip, conical tip, chisel tip, notched tip, extension shaft), Carrying Case
