Measuring range: 0 - 10 mm
Resolution: 0.01 mm
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, foam and more
Resolution: 0.01 mm
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, foam and more

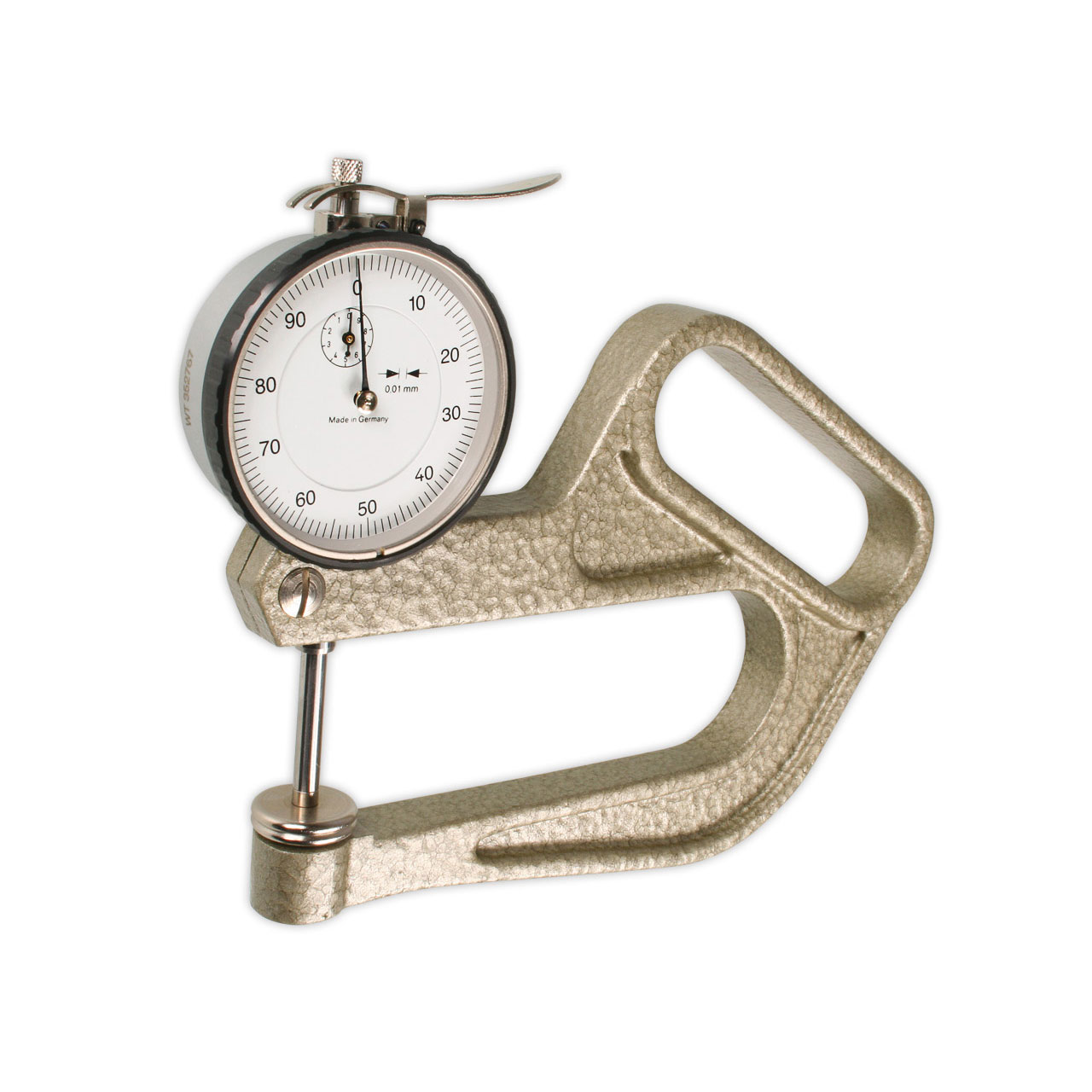

- J Series Thickness Gauge feature easy to read analog display along with the high accuracy
- J Series models are available with 5 different feelers. See selection of feelers below.
- Measuring by specified spring force of 1.2 N (optional 0.6 N or 2 N)
- Opening by lifting device (lever) – self closing thickness gauge
| Model | Measuring Range | Resolution | Jaw Depth | Standard Contact Point |
|---|---|---|---|---|
| J-15 | 10 mm | 0.01 mm | 18 mm | 6.35 mm flat |
| J-45 | 10 mm | 0.01 mm | 45 mm | 6.35 mm flat |
| J-50 | 10 mm | 0.01 mm | 50 mm | C |
| JA-50 | 10 mm | 0.01 mm | 50 mm | C |
| J-100 | 10 mm | 0.01 mm | 100 mm | C |
| J-200 | 10 mm | 0.01 mm | 200 mm | C |
| J-300 | 10 mm | 0.01 mm | 300 mm | C |
| J-400 | 10 mm | 0.01 mm | 400 mm | |
| J-200-30 | 30 mm | 0.01 mm | 200 mm | C |
| J-300-30 | 30 mm | 0.01 mm | 300 mm | |
| J-400-30 | 30 mm | 0.01 mm | 400 mm |
| Resolution: | 0.01 mm |
| Measuring range: | 10 mm |
| Jaw Depth | 18 mm thru 400 mm |
| Bezel diameter: | 54 mm |
| Measuring pressure: | 1.2 N (optional 0.6 N or 2 N) ± 10 % |
| Feeler shape: | A/B/C/D/E |
| Measuring principle: | Self closing |
| Weight, net (gross): | 450 g (500 g) |
To order, please indicate the desired feeler, e.g. K-200-B for gauge with feeler B. This means that NOT all feelers are included in the package!
 |
Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
 |
Feeler: B For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
 |
Feeler: C For soft leather, cardboard, paper, foils, etc. |
 |
Feeler: D For hard leather, plywood, fiberboard, etc. |
 |
Feeler: E For sheet metal, etc. |
| Item | Description | Price | ||
|---|---|---|---|---|
Dial Thickness Gauge, 10mm Range, 100mm Jaw Depth, 30mm Feeler (A) | $325.00 | |||
Dial Thickness Gauge, 10mm Range, 100mm Jaw Depth, 20mm Feeler (B) | $325.00 | |||
Dial Thickness Gauge, 10mm Range, 100mm Jaw Depth, 10mm Feeler (C) | $325.00 | |||
Dial Thickness Gauge, 10mm Range, 100mm Jaw Depth, 10mm Curved Feeler (D) | $325.00 | |||
Dial Thickness Gauge, 10mm Range, 100mm Jaw Depth, 5mm Curved Feeler R=1.59 (E) | $325.00 |
