5 year warrantyMeasuring Range in Steel
0.040 - 8.00 inches
1.00 - 199.0 mm

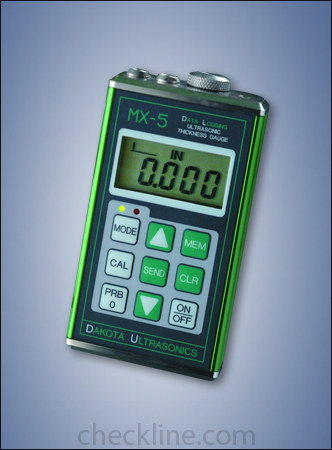

The MX-5 DL is a simple to operate Ultrasonic Thickness Gauge with an internal data logger. It offers features that make your job easier. An Alarm mode, Differential mode, high speed scanning, and data send are the main features of the MX-5 DL.

The MX-5 DL will automatically log your readings in numeric order ( 1 to 1000 readings ). The gauge comes as a complete kit, ready to use, and is backed by our 5 year limited warranty.

Features

  • Resolution of 0.001 inch (0.01 mm)
  • Large, backlit LCD display retains last reading
  • Simple operator controls virtually eliminate training
  • Special-purpose probes are offered for a variety of applications
  • Switch-selected units for inches or mm
  • CE Certified
  • For underwater surveying, probe cable lengths up to 50 feet are optionally
  • Differential Mode
  • Alarm Mode
  • RS232 output sends thickness readings to a printer, computer or other external storage device.
  • Automatic numeric Data Logging system 1 to 1000 readings.
  • Includes NIST Calibration Certificate
  • IP 65 Rated

Related Products

Certified Steel Test Blocks
Click image for more info
Certified Steel Test Blocks
- Includes NIST Traceable Calibration Cert
- Precision Machined and Finished
- Includes Wooden Storage Box
TICC-M Protective Holder for Most TI Series Gauges, F-112-0005
Click image for more info
Protective Holder for Ultrasonic Gauges
- Constructed from heavy duty Cordura Nylon
- Built-in belt loop
CF12 Sound Safe Ultrasonic Couplant
Click image for more info
Coupling Fluid
- Temp Range: 0 - 200 °F, -18 - 93 °C
Click image for more info
50 Foot Underwater Probe / Cable Assembly
- 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors.
ultrasonic trandsducer holder v-block
Click image for more info
Ultrasonic Transducer Holder
Click image for more info
Software for Thickness Gauges

Complete Kit

The MX-5DL is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, Software, RS-232 output cable, RS-232 to USB adapter, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.

Measuring Limits

Minimum Radius for Convex Surfaces 0.350" (8.89 mm)
Minimum Radius for Concave Surfaces 3" (76.2 mm)
Minimum Headroom 1" (25.0 mm)
Minimum Sample Diameter 0.150" (3.8 mm)
Minimum Substrate Thickness - F na
Minimum Substrate Thickness - NFe na

Specifications

Range in Steel0.040-8.00" (1.00-199.9 mm)
Resolution.001" (0.01 mm)
Display4½ - Digit, 0.5" Backlit LCD
Velocity Range0.0492 to .3937 in/μs. 1250 to 10,000 meters/sec
Probe1/4", 5 MHz, actual wearface is 5/8" (17mm)
Cable4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. LimitsAmbient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available.
Battery TypeTwo AA batteries
Battery Life200 hours
Weight7 ounces (196 g)
Size2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm)
Accessories IncludedProbe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
WarrantyGauge: 5 Years
Probes: 90 Days
