Replaced by ZX-3

5 year warrantyMeasuring Range in Steel
0.040 - 6.00 inches
1.00 - 150.0 mm

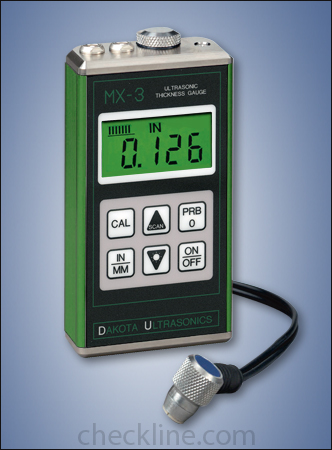

The Dakota Ultrasonics MX-3 Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

The Dakota Ultrasonics MX-3 can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.

The Dakota Ultrasonics MX-3 probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.

Features

  • Resolution of 0.001 inch (0.01 mm)
  • Large, backlit LCD display retains last reading
  • Simple operator controls virtually eliminate training
  • Special-purpose probes are offered for a variety of applications
  • Switch-selected units for inches or mm
  • For underwater surveying, probe cable lengths up to 50 feet are optionally
  • CE Certified
  • Includes NIST Calibration Certificate

Related Products

Certified Steel Test Blocks
Click image for more info
Certified Steel Test Blocks
- Includes NIST Traceable Calibration Cert
- Precision Machined and Finished
- Includes Wooden Storage Box
SB4 & SB6 Uncertified Steel Test Blocks
Click image for more info
Steel Test Blocks without certification
- Fabricated from 1018 Steel
- Supplied without certification
TICC-M Protective Holder for Most TI Series Gauges, F-112-0005
Click image for more info
Protective Holder for Ultrasonic Gauges
- Constructed from heavy duty Cordura Nylon
- Built-in belt loop
CF12 Sound Safe Ultrasonic Couplant
Click image for more info
Coupling Fluid
- Temp Range: 0 - 200 °F, -18 - 93 °C
Click image for more info
50 Foot Underwater Probe / Cable Assembly
- 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors.
ultrasonic trandsducer holder v-block
Click image for more info
Ultrasonic Transducer Holder

Complete Kit

The Dakota Ultrasonics MX-3 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.

Measuring Limits

Minimum Radius for Convex Surfaces 0.350" (8.89 mm)
Minimum Radius for Concave Surfaces 3" (76.2 mm)
Minimum Headroom 1" (25.0 mm)
Minimum Sample Diameter 0.150" (3.8 mm)
Minimum Substrate Thickness - F na
Minimum Substrate Thickness - NFe na

Specifications

Range in Steel0.040-6.00" (1.00-150.0 mm)
Resolution.001" (0.01 mm)
Display4½ - Digit, 0.5" Backlit LCD
Velocity Range0.0492 to .3937 in/μs. 1250 to 10,000 meters/sec
Probe1/4", 5 MHz, actual wearface is 5/8" (17mm)
Cable4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. LimitsAmbient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available.
Battery TypeTwo AA batteries
Battery Life200 hours
Weight7 ounces (196 g)
Size2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm)
Accessories IncludedProbe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
WarrantyGauge: 5 Years
Probes: 90 Days

Downloads

Buy Now

Item Description Price
Replaced by ZX-3 Dakota MX-3 Thickness Gauge Complete Kit with T-102-2000 Probe, Z-112-0001
$
Accessories
Protective Holder for Most TI Series Gauges, F-112-0005
$55.00
Coupling Fluid - 12 oz / 354 ml
$30.00
1/4" diameter, 5 MHz, dual element transducer
$285.00
V-Block Transducer Holder (For 3/16" & 1/4" Transducers only), F-000-7001
$175.00
1/4", 5 MHz Hi-Temp (900 F / 500 C) Transducer
$445.00
