The tool's backlit display is easy to read, even in dim light conditions, and the unit operates for up to 200 hours on a single set of AA batteries.

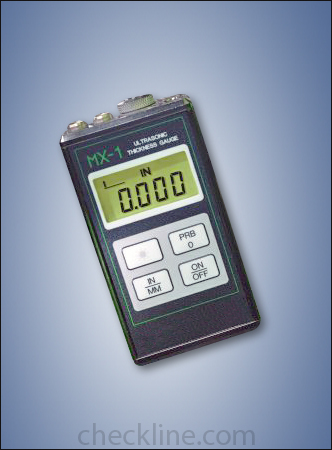

The MX-1 comes complete, ready to use, and is protected by Dakota Ultrasonics 5 year limited warranty.
- Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions.
- Measurements displayed in inches, inches/microsecond, millimeters, and meters/second.
- Measures from 0.025 to 19.999 inches (0.63 to 199.99 millimeters) switch to select English or metric units.
- Four readings per second for single point measurements.
- IP 65 Rated
|Minimum Radius for Convex Surfaces||0.350" (8.89 mm)|
|Minimum Radius for Concave Surfaces||3" (76.2 mm)|
|Minimum Headroom||1" (25.0 mm)|
|Minimum Sample Diameter||0.150" (3.8 mm)|
|Minimum Substrate Thickness - F||na|
|Minimum Substrate Thickness - NFe||na|
|Measuring Range||0.025 to 19.999 inches|
0.63 to 199.99 millimeters
|Resolution|| 0.001 inch|
|Velocity Range||0.0492 to .3937 in/μs. 1250 to 10,000 meters/sec|
|Dimensions||2.5 W x 4.75 H x 1.25 D inches|
|Range in Steel||0.040-6.000" (1.00-150.0 mm) with supplied probe. Other probes available.|
|Resolution||.001" (0.01 mm)|
|Display||4½ - Digit, 0.5" Backlit LCD|
|Probe||1/4", 5 MHz, actual wearface is 5/8" (17mm)|
|Cable||4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).|
|Temp. Limits||Ambient: -20 to 120° F (-30 to 50° C)|
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available.
|Battery Type||Two 1.5V alkaline or 1.2V NiCad AA cells.|
|Battery Life||Typically operates for 200 hours on alkaline and 130 hours on NiCad.|
|Weight||10 ounces (283 g)|
|Accessories Included||Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.|
|Warranty||Gauge: 5 Years|
Probes: 90 Days
Replaced by ZX-1 Dakota MX-1 Thickness Gauge Complete Kit with T-102-2000 Probe, Z-139-0001
Protective Holder for Most TI Series Gauges, F-112-0005
Coupling Fluid - 12 oz / 354 ml
1/4" diameter, 5.0 MHz, dual element transducer, Side In, Potted
V-Block Transducer Holder (For 3/16" & 1/4" Transducers only), F-000-7001
