DCF-900 DISCONTINUED - Coating Thickness Gauge - Paint Thickness Gauge

Made in USA

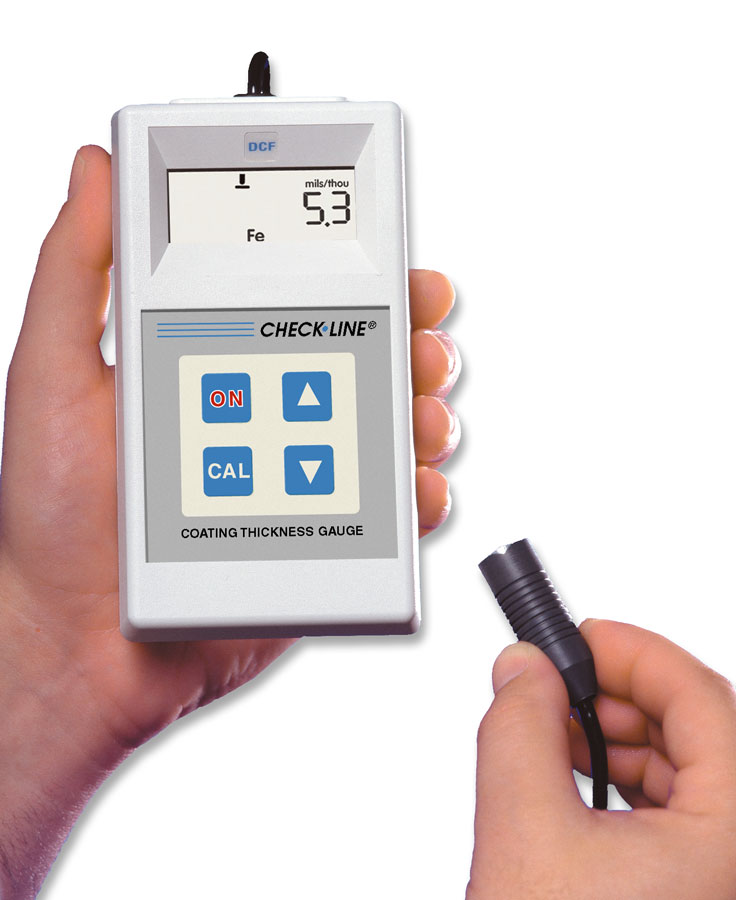

DCF-900 Coating Thickness Gauge
Click images to enlarge.
As of mid 2021 the DCF-900 is no longer available. We recommend the MiniTest 650F as a replacement.

Measuring Range: 0-40.0 mils / 999 µm

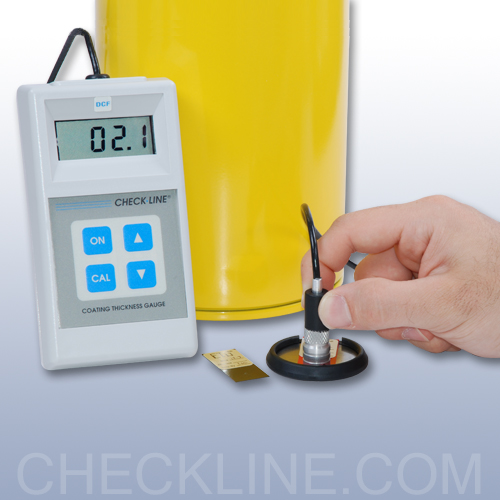

The DCF-900 measures the thickness of paint, plating, coatings and galvanizing on iron or steel.

Features

  • Dependable accuracy over the entire range
  • User selectable units (mils / microns)
  • Continuous reading update detects soft coatings as probe tip "sinks" into them.
  • NIST Traceable Calibration OPTIONAL ($100)

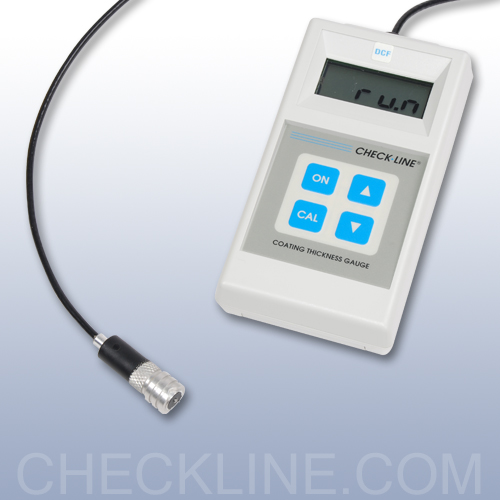

  • Remote probe permits easy access for difficult, hard-to-reach areas
  • Longer lasting, driftless calibration... Set it and forget it for long periods of time and from job to job
  • Excellent results with thin substrates... As thin as 0.005" (10 µm)
  • Supplied with bare test plate, two precision calibration shims & instructions, in a foam-fitted carrying case

Related Products

Elektrophysik Minitest 650 Coating Thickness Gauge
Click image for more info
Coating Thickness Gauge
- Resolution of 0.01 mils (1 micron)
- Made in Germany
- Includes Factory Calibration Certificate
Certified Plastic Shims
Click image for more info
CPS
Certified Plastic Shims / Foils for Coating Thickness Gauge Calibration and Verifications

Measuring Limits

Minimum Radius for Convex Surfaces 0.375" (9.5 mm)
Minimum Radius for Concave Surfaces 2.5" (63.5 mm)
Minimum Headroom 2.5" (63.5mm)
Minimum Sample Diameter 0.5" (13 mm)
Minimum Substrate Thickness - F 0.020"
Minimum Substrate Thickness - NFe NA

Complete Kit

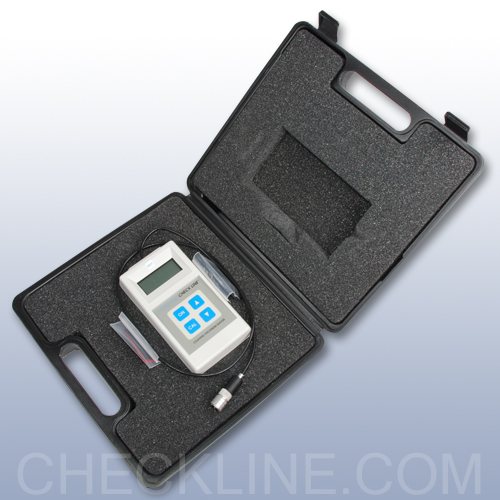

The DCF-900 is supplied as a complete kit including gauge, ferrous zero plate, 2 plastic test shims and instruction manual in a foam fitted, hard plastic carrying case.

Specifications

Range:0.1-40.0 mils (0-999 µm)
Resolution:0.1 mil (1 µm)
Accuracy:0-10 mils: ±0.1 mil
10-40 mils: ±1% of reading

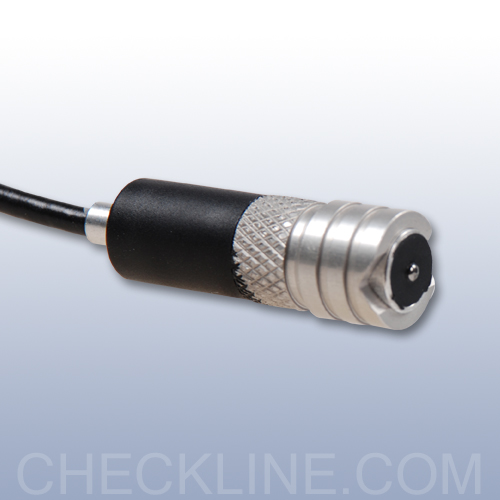

Probe:Monopolar, magnetic induction, 0.4" (10 mm) dia., spring-loaded, with V-notched shell and 28" (70 cm) cable
Battery/Life:9 V alkaline/approx. 6 months normal use, with auto shutoff after 90 seconds of non-use.
Dimension:5.7" x 3.1" x 1.5"
(145 x 79 x 38 mm)
Weight:9 oz. (250 g)
Temperature Limits:Material: 15 to 140° F (-10 to 60° C)
Ambient: 32 to 125° F (0 to 50° C)

Downloads

Buy Now

Item Description Price
DCF-900 Coating Thickness Gauge, Measures Coatings on Ferrous Metals up to 40 mils / 999 Microns - Please contact us for pricing and availability.
$
MiniTest 650F Coating Thickness Gauge with F Probe, 0 - 3000 μm / 120 mils - MIN/097005
$665.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
