TTXL High-Capacity Cable Tension Meter

Made in UK
TTXL Cable Tension Meter
Click images to enlarge.
TTXL
Capacity: 26500 lb / 120 kN / 12000 kg
Cable Diameter Range: 3/4" - 1-17/64" / 19-32mm

TTXL-V2
Capacity: 33,000 lb / 150 kN / 15000 kg
Cable Diameter Range: 1/2" - 1" / 11-25mm

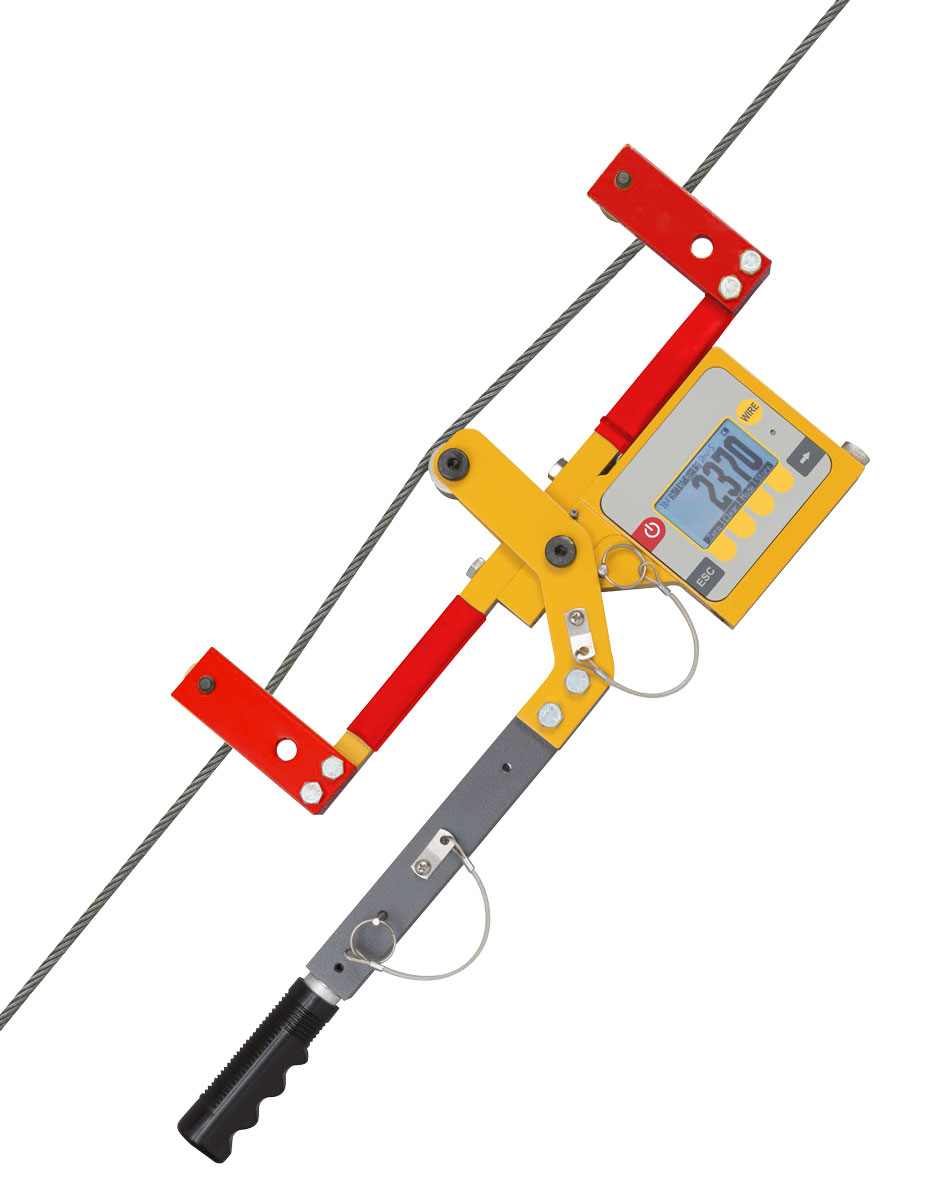

The TTXL High-Capacity Cable Tension Meter is designed to measure tension quickly and accurately on guy wires, zip lines, guardrails, utility lines, and other applications where wire rope is fixed between two points. It installs, measures, and removes in seconds. The TTXL features a precision loadcell for highly accurate measurements that do not require lookup or correction tables.

cable tension meter features

Features

  • Includes Calibration Certificate
  • 1 Year Warranty
  • Stores calibrations for up to 20 unique wire sizes and types up to 1 inch max. (25 mm)
  • CE Certified
  • Portable and rugged – designed for outdoor use
  • Telescoping handle engages meter quickly with minimal effort
  • Uses stanadrd AA Batteries for up to 120 hours of use
  • User-selected units of measure of Lbf, Kgf or Newtons
  • Calibration available for Alumoweld Cables

Calibration

The TTXL needs to be calibrated in advance for each wire diameter/wire construction you will be measuring. 1 calibration is included at no charge, additional calibration is $110.

When listing cables you must provide the diameter, construction, and material, for example;
Cable 1: 1/2", 1x7 galvanized steel
Cable 2: 19mm", 1x19 stainless steel

Complete Kit

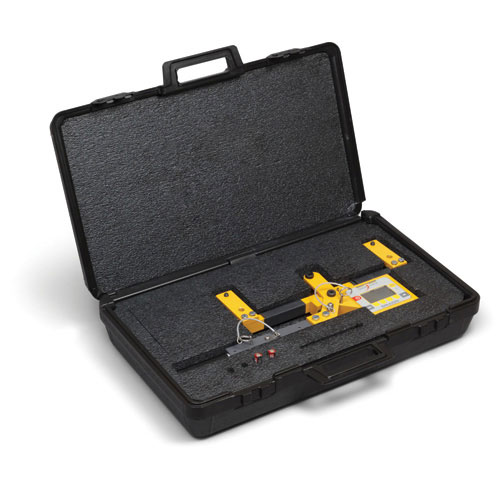

The TTXL is supplied as a complete kit including tension meter, instruction manual, and calibration certificate in a heavy-duty carrying case.

Specifications

CapacityTTXL 26500 lb / 120 kN / 12000 kg
TTXL-V2 33,000 lb / 150 kN / 15000 kg
Resolution (Selectable)Low 50lb/20Kg - Med 20lb/10Kg - High 10lb/5Kg
*Default Setting is Medium
Wire sizesTTXL 3/4" - 1-17/64" / 19-32mm
TTXL-V2 1/2" - 1" / 11-25mm
Accuracy±3% instrument capacity
Number of calibrationsUp to 20 can be stored independently
Operating Temperature-4°F to 158°F (-20°C to 70°C)
Loading errorCable elongation of only 0.08 inch (2mm)
DisplayInformative Display: Shows Unit, Wire Type, Sheave & Battery;
Date and TimeIncluded
Calibration ReminderIncluded (set by factory)
BacklightIncluded (configurable intensity and timer)
PowerAA batteries x2
Battery Life10 Hz = over 250 hours continuous
100Hz = over 100 hours continuous
*Tested with blacklight off
AZT (Automatic Zero Tracking) & FilteringConfigurable AZT and Filtering
Carrying CaseIncluded
RS-232 Port4-Pin Lemo RS-232 output
Units Of Measurepound-force, kilogram force, Newtons
Environment protectionSuitable for continued outdoor use
Dimensions10 x 23 x 3 inch (25 x 59 x 8 cm)
WeightApprox 11 lb (5 kg)
Shipping Weight30 lbs (14 kg)
Shipping Dimensions28 x 16 x 7 inches (71 x 41 x 18 cm) with carrying case
Warranty2 Years

Related Products

RTM cable tension meter
Click image for more info
RTM
High Capacity Cable Tension Meter Gigasense
(RTM-20D / RTM-D)
- RTM can be calibrated for up to 10 different wire ropes
- The RTM will temporarily withstand 100% overload without impairing accuracy
Quick-Check-T tension meter
Click image for more info
Cell Tower Cable Tension Meter with Bluetooth Output
cable tension meter
Click image for more info
Cable Tension Meter Quick-Check
- Stores calibrations for up to 20 unique wire sizes and types up to 1 inch max. (25 mm)
- CE Certified

Downloads

Buy Now

Item Description Price
Cable Tension Meter, 26500 lb / 120 kN / 12000 kg Capacity with 1 set of sheaves, Calibration for 1 Wire
$7,295.00
Cable Tension Meter, 33000 lb / 150 kN / 15000 kg Capacity with 1 set of sheaves, Calibration for 1 Wire
$6,999.00
Accessories
TTXL-CAL
Additional Calibration for TTXL Cable Tension Meter
$150.00
AWT05-509279
Data export pack, includes all cables and wedge software to send data from gauge to PC
$395.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
