RTMe High Capacity Cable Tension Meter - Gigasense

RTMe Cable Tension Meter
Click images to enlarge.
2 Models
RTMe-5T - 5 Ton / 50 Kn / 11,000 lb
RTMe-20T - 20 Ton / 200 Kn / 44,000 lb

Max Cable Diameter - 1.5" / 38mm

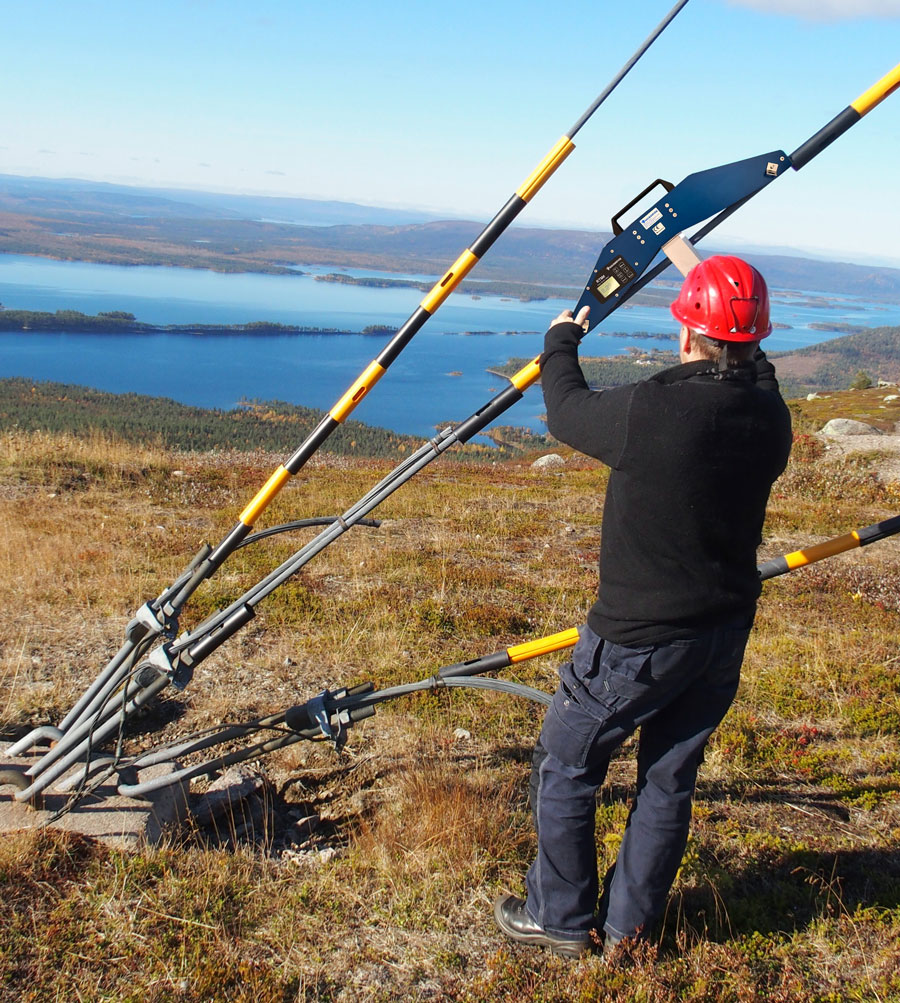

The RTMe cable tension meter is specially designed for measuring tension in cables such as guy wires, support cables, and electrical conductors. The RTMe can be placed directly on the cable for real-time tension measurement and guidance for adjustment.

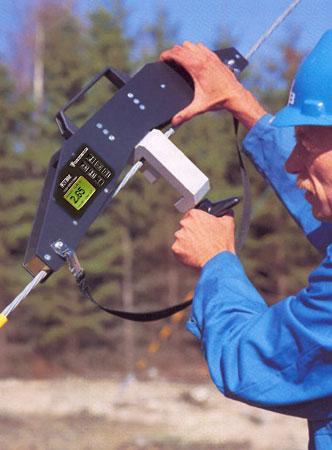

RTMe operation is simple, clip it to the rope to be tested and use the large hand screw to deflect the rope to a fixed angle. The resultant force will then affect the load cell and it will measure the tension in the wire rope. The tension is in kN, tonnes, lbs, DaN, USt, and other common units.

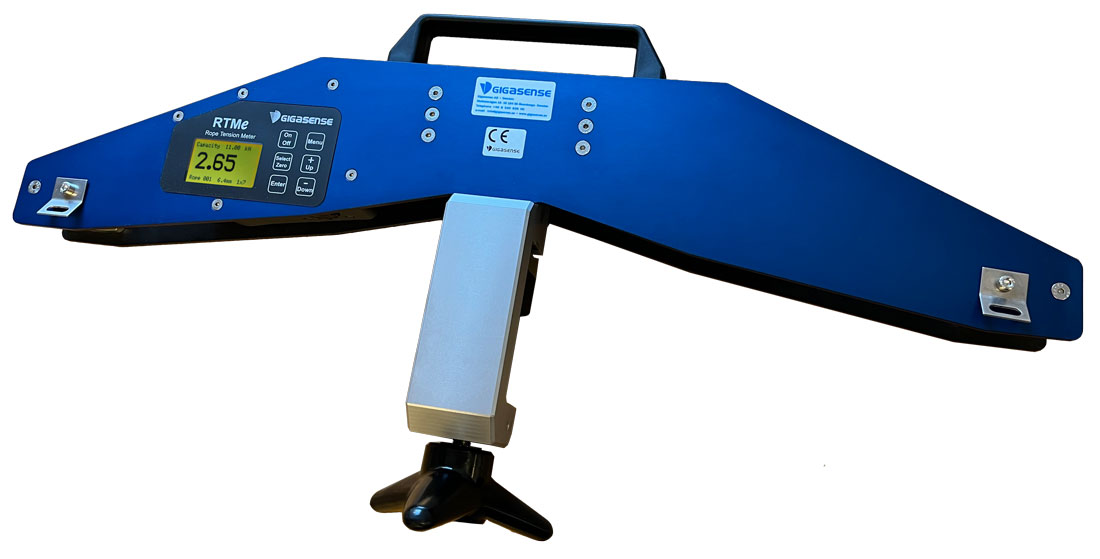

RTMe Cable Tension Meter

The RTMe can be used to measure tension forces up to 20 metric ton and for wire ropes with a diameter up to 38 mm, up to 20 different wire rope dimensions/types can be stored in the memory.

Function

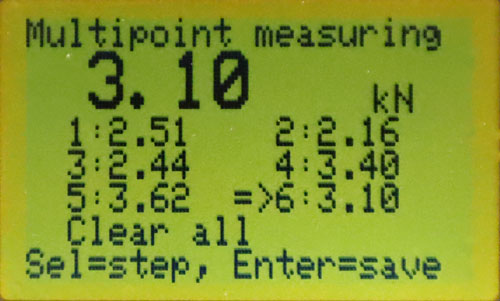

The RTMe is very simple and handy to use. Attach the RTMe to the rope and tighten the screw, then read the measured value directly in the display. Multipoint measuring – easy to store up to six values for a quick overview. Easily toggle between readout in kN, tonne, lbs, DaN, or USt.

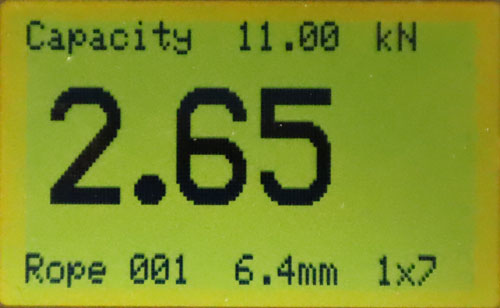

RTMe Large Display RTMe Multi-Point measuring RTMe Multi-Point measuring

Safety The RTMe can temporarily be overloaded by 100% of its nominal capacity without affecting the accuracy.

The RTMe is delivered in a robust and light weight transport case (760 x 400 x 170 mm) for easy handling and protection of the instrument.

Features

  • Supplied with Traceable Factory Calibration Certificate
  • Storage for 20 different wire rope calibrations
  • IP 65 Protection
  • User-Selectable units, kN, tonne, lbs, DaN, or USt

Specifications

Accuracy2% for steel ropes, 6% for copper ropes
Cable Diameter0.25" - 1.5" / .35 - 38mm
CalibrationUp to 20 Calibrations can be stored
PowerRechargeable Lithium-ion, 3.7V
Battery Life60 hours with a full charge
Housing materialCorrosion proof anodized Aluminium
Dimensions5.3" x 15.0" x 27.0" (135 x 380 x 685 mm) Gauge
6.7" x 15.7" x 29.9" (170 x 400 x 760 mm) in Carrying-Case
Weight13.2 lbs / 6kg (29 lb / 14 Kg Shipping Weight)
Working Temp-4 to 158° F / -20 - 60° C
Protection ClassIP 65

Calibration to Customer Sample

cable tension meter loop The RTM can be calibrated with a customer cable. The sample must be 6m / 18ft and have looped ends as shown here.

Downloads

Related Products

TTXL Cable Tension Meter
Click image for more info
High-Capacity Cable Tension Meter
cable tension meter
Click image for more info
Cable Tension Meter Quick-Check
- Stores calibrations for up to 20 unique wire sizes and types up to 1 inch max. (25 mm)
- CE Certified
Quick-Check-T tension meter
Click image for more info
Cell Tower Cable Tension Meter with Bluetooth Output
CBM Cable Tension Meter
Click image for more info
CBM
Cable Tension Meter - CableBull
- Sophisticated roller geometry and minimal deflection angle allows the CBM to measure with the highest accuracy

Buy Now

Item Description Price
Cable Tension Meter, 5 Ton / 50 Kn / 11,000 lb, with calibration for 1 wire size
$11,995.00
Cable Tension Meter, 20 Ton / 200 Kn / 44,000 lb, with calibration for 1 wire size
$12,995.00
Accessories
RTME-CAL1
1st calibration included, Specify Wire Diameter, Strand Configuration, and Wire Material
$0.00
RTME-CAL2
Calibration for RTMe, Specify Wire Diameter, Strand Configuration, and Wire Material
$569.00
RTME-CAL3
Calibration for RTMe, Specify Wire Diameter, Strand Configuration, and Wire Material
$569.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
