TTG-ISO-5084 Replaced by TMG

Made in Germany
ISO 5084 thickness gauge
Click images to enlarge.
Replaced by TMG

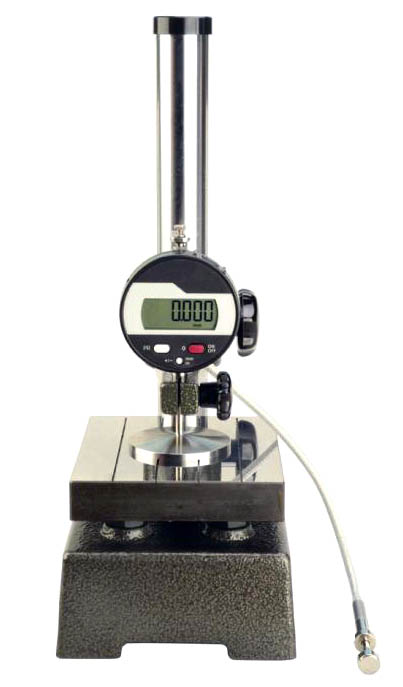

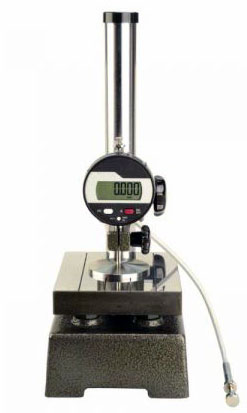

The TTG-ISO-5084 textile thickness meter is designed to measure textile thickness according to to ISO 5084 specifications. Constant measuring pressure ensures highly accurate and repeatable measurements.


  • Includes Traceable Calibration Certificate
  • Easy-to-use foot lifting mechanism
  • Simple, rugged design
  • Displays in MM or Inches, user selectable


Measuring Range12.5mm / 0.5 Inches
Resolution0.001 mm / 0.0001 Inches
Measuring Base98mm x 115mm
Feeler Diameter50.5mm
Measuring Pressure1kPa +/-0.01kPa
Weight7.2 Kg

Buy Now

Item Description Price
Replaced by TMG Digital Textile Thickness Gauge (0-12.5mm/0-1 inch), According to ISO 5084
USB output cable for TTG
RS232 output cable for TTG
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
