NS-600 LED Stroboscope

Made in USA
NS-600 LED Stroboscope
Click images to enlarge.
led strobeThe NS-600 LED stroboscope is designed to measure the speed of a rotating object or one that is cycling in a linear repetitive pattern ..... without contact or reflective tape. When the flash rate and rpm rate are identical, the target will appear frozen" visually. If the flash rate it adjusted slightly, the target would be put into slow motion for detailed motion analysis, observation or trouble-shooting.

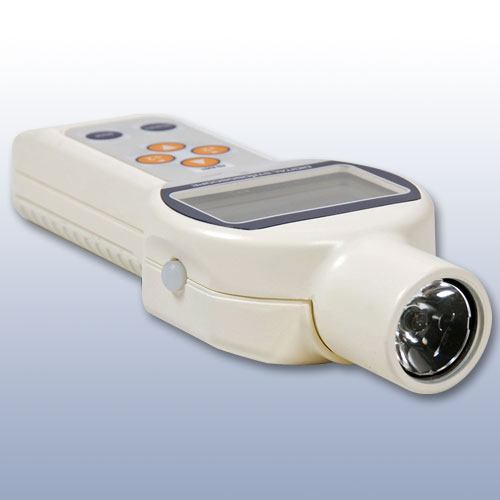

The NS-600 features a rugged cast-Aluminum housing, the latest LED technology and compact size making it a perfect choice for use anywhere on the factory floor. The NS-600 is ideal for speed, motion and vibration analysis, such as rotating shafts, fans, cams, etc.

NS-600 automatically adjusts flash duration for ultra high speed and features a user-selectable flash duration for those applications where the user wants to optimize either the image "sharpness" or increase the "brightness" to the highest levels.

Features

  • Supplied with NIST Traceable Calibration Certificate
  • High efficiency LED solid-state light source – never needs replacement
  • Brightness 32 LUX from 8" distance
  • Highly stable drift free operation
  • Push button operation with x2 and ÷2 buttons for quick adjustment
  • Uses two AA-Batteries providing continuous operation of 8 hours
  • Auto wide measuring range – up to 120,000 fpm/rpm
  • Store up to 10 flash rates in memory for recall or quick re-tests
  • Easy-to-read 5 digit 0.47" (12 mm) high LCD

Ranges

Range Resolution
6.0 to 9999.9 fpm/rpm ±0.1 fpm/rpm
10000 to 120000 fpm/rpm ±1 fpm/rpm (over 100,000 display flashes)
.20 ~ 999.00 Hz 0.01 Hz
1000.0 ~ 2000.0 Hz 0.1 Hz

Specifications

Flash Range12 - 120,000 FPM/RPM
Selectable Unitsfpm or Hz
Accuracy±0.01%, ±1 LSD
Display12mm high, 5digit LCD
Power2- AA batteries
Battery Life8 hours (@6,000 rpm when fully charged)
Operating Temp0 to 45° C
Weight.5 lb/225 g

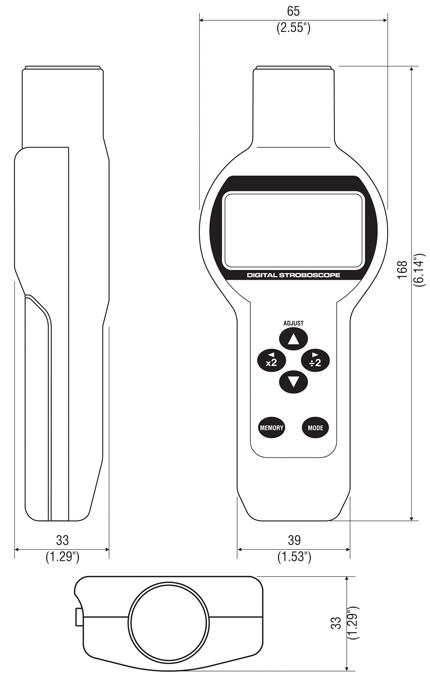

Dimensions

Complete Kit

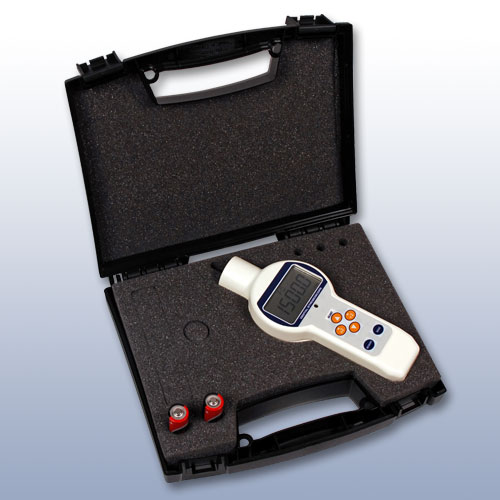

The NS-600 LED stroboscope kit is supplied with the strobe, 2 AA batteries, instruction manual and calibration cert in a fitted carrying case.

The NS-601 LED stroboscope kit is supplied with the strobe, 2 AA rechargeable batteries, battery charger, instruction manual and calibration cert in a fitted carrying case.

Downloads

Buy Now

Item Description Price
Compact Battery Powered LED Stroboscope with carrying case - NS-600A
$396.00
Compact Battery Powered LED Stroboscope with carrying case and Rechargeable Batteries and Charger
$440.00
Accessories
BATT-RC4AA-WC
4-pack AA Ni-MH Rechargeable Batteries & Charger Kit
$35.00
ISO-17025
ISO-17025 Accredited Calibration with Certificate
$220.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
