BMC Moisture meter for determination of water content of wood chips

Click images to enlarge.
Measuring Range: 5 - 50% MC

2 Models
BMC - Biomass Moisture Meter with Memory - NO OUTPUT
BMC-USB - Biomass Moisture Meter with Memory - USB DATA OUTPUT

Highly accurate moisture meter with automatic bulk density compensation for quick determination of water content of wood chips, barks, wooden pellets, elephant grass, wood shavings and sawdust.

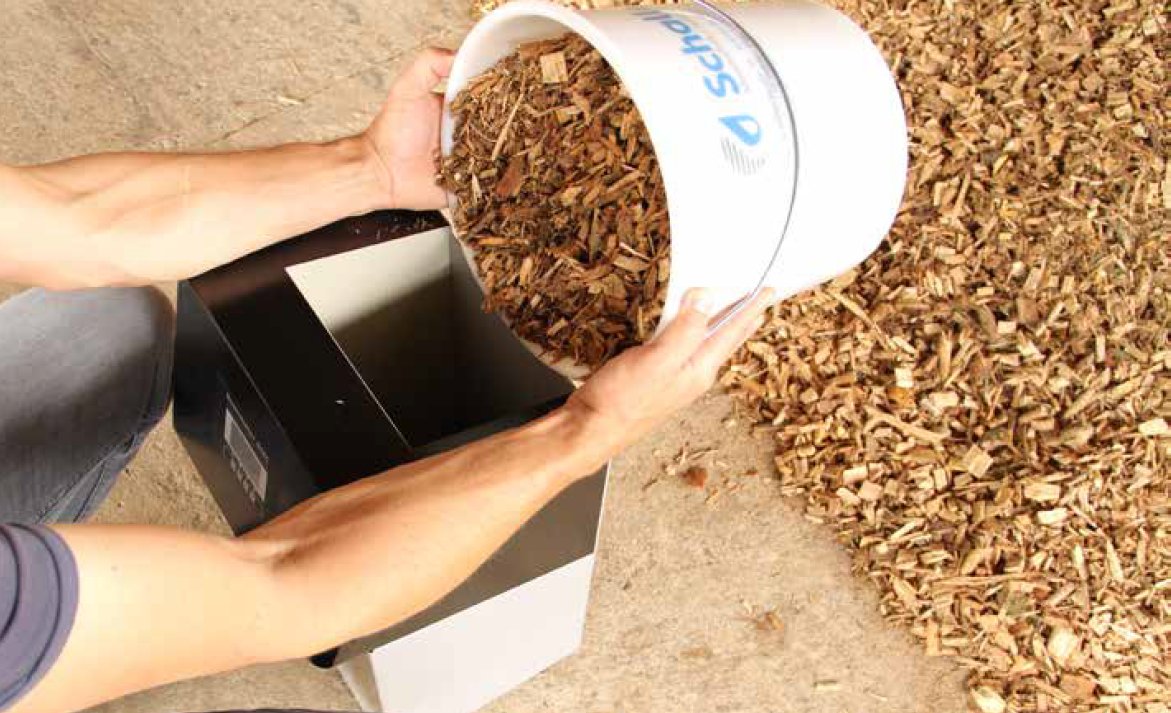

The entire measurement procedure is extremely easy & only takes seconds. Simply turn on the gauge, collect the desired Biomass test sample and pour into storage bin and view the water content (%-moisture) on the large backlit LCD display.

The BMC and BMC-USB models both include a built-in datalogger for storage of 10,000 values. The BMC-USB model ads USB data output for downloading stored data to a PC with software included at no additional charge.

Both models include the possibility to program and store three (3) custom calibrations if one of the factory-supplied calibration is not sufficient to produce desired results.

Also known as the HGF moisture meter.

Features

  • Measuring range 5 to 50% water content, depending on the material
  • Resolution 0.5% water content
  • Calibration accuracy to reference material: +/-1.5%
  • 12.5 liters sample volume
  • Temperature can be set to °C or °F as required
  • Automatic temperature compensation
  • Temperature range for determination of water content: 0 to +40°C / 32 to 104°F
  • Measurement within seconds without prior treatment of samples
  • Sample temperature measurement
  • Hold function, manual saving of results of up to 10,000 measuring values with measuring point report
  • Operates from 4x AA-Batteries
  • Optional USB interface with internal rechargeable batteries
  • Menu languages: English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish

FactoryCalibration Curves

Calibration NameDescriptionCategory
Softwood ShavingsFor shavings made of softwood
Hardwood SawdustFor sawdust made of hardwood
Softwood SawdustFor sawdust made of softwood
Wood chipsFor wood chips with fine fraction, consisting of at least one third hardwood. The fine fraction mainly derives from barks, small branches and bushes.P31 to P45
Coarse wood chipsFor coarse wood chips without fine fraction, consisting of at least one third hardwood. This curve is predominantly suited for measuring wood chips deriving from logs and full trees (poplar, willow)P45 to P63
Softwood chipsFor wood chips with fine fraction, mainly (more than two thirds) consisting of softwood (spruce, fir, pine, larch). The fine fraction mainly derives from barks, small branches and bushes.P16 to P45
Softwood coarse chipsFor coarse wood chips without fine fraction, mainly (more than two thirds) consisting of softwood (spruce, fir, pine, larch) of 70% and more. This curve is predominantly suited for measuring wood chips deriving from logs and full trees as well as sawP45 to P63
Fine wood chipsFor fine wood chips with a high proportion of fine fraction, consisting of at least one third hardwood. The fine fraction mainly derives from barks, small branches and bushesP16 to P31
Free 1For custom calibration
Free 2For custom calibration
Free 3For custom calibration
ReferenceFor self-check using BM-ISO Test Medium

Related Products

Wood Chip Moisture Meter
Click image for more info
BLL
Wood Chip Moisture Meter with Insertion Probe
- Directly mounted 1 meter long insertion probe
bma bma-2 biomass moisture meter
Click image for more info
Biomass Moisture Meter

Complete Kit

Includes Moisture Meter, Batteries and Instruction Manual.

BMC-USB also includes USB data transfer cable and PC Software

Downloads

Specifications

Measuring range5 to 50% water content, depending on the material
Resolution0.5% water content
Calibration accuracy+/- 1.5%
Measuring PrincipleCapacitance
Sample volume12.5 liters
Temperature compensationAutomatic (°F or °C)
Built-in Memory10.000 measuring values with measuring point report
Housing ProtectionIP40
Menu LanguagesEnglish, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish
DisplayGraphic LCD display with backlight (128 x 64 pixel)
Operating temperature-20°C to +40°C (-4 °F to 104 °F)
Storage temperatur0°C to +60°C (32 °F to 140 °F)
Dimensions296 x 278 x 508 mm (11.7" x 10.9" x 20")
Weight7.9 Kg (17.4 Lbs)

Buy Now

Item Description Price
Wood Chip Moisture Meter, measuring range 5% to 50%
$2,395.00
Wood Chip Moisture Meter with USB Output including software
$2,995.00
Accessories
BM-ISO
Test Medium for self calibration check of BM1, BM2 and BMA using Reference Curve
$220.00
HUMI-ISO
ISO measuring device check including factory calibration certificate
$168.00
HM-11733
Battery Powered Thermal Printer
$554.40
CUSTOM-CAL
Custom Calibration prepared by the factory using customer sample
$840.00
