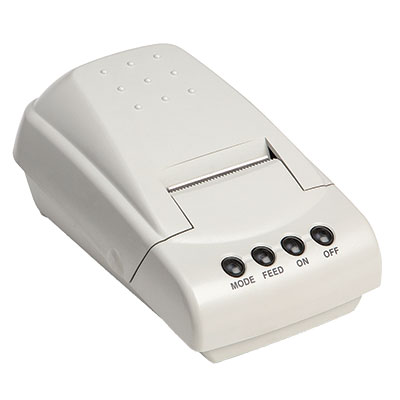

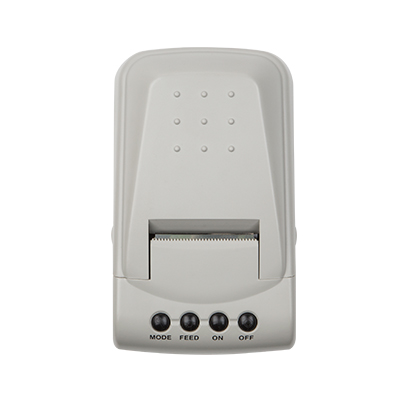

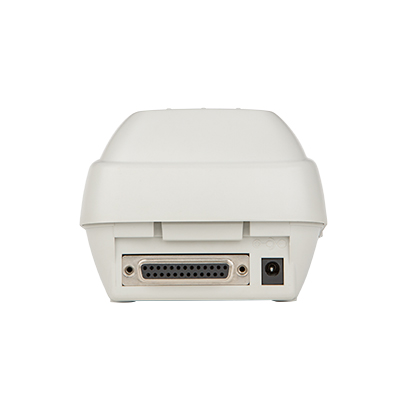

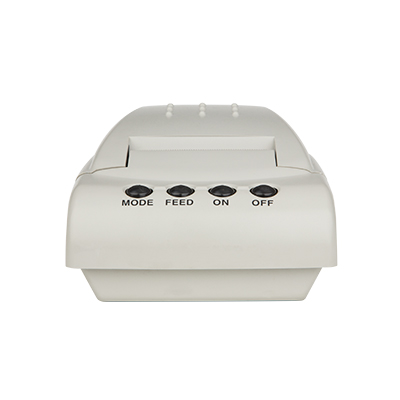

P-190 Impact Dot Printer

P-190 Printer
Click images to enlarge.
P-190 is a compact, versatile and reliable printer perfect for a wide range of requirements.
  • Industrial Instrumentation
  • Scientific Instrumentation
  • Weights and Measures
  • Medical Equipment
  • Remote Printer
  • Data Logging

Features

  • Impact Dot Printing
  • 2.25 Inch Paper
  • 24 Columns
  • 2.5 LPS Print Speed
  • Graphics
  • Auto Shut Off
  • Compact Size

Related Products

CAP-TT01 cap torque tester
Click image for more info
Cap Torque Tester
- Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
- High-speed 7,000 Hz sampling rate accurately captures peak torque values
- USB, RS-232, Mitutoyo, and analog outputs
- 1,000-point data memory with statistics and outputs
Click image for more info
- Resolution of 0.001" (0.01 mm)
- Selectable units of inch or mm
- Large, backlit LCD display retains last reading
- RS-232C Serial output for downloading stored data to a printer or computer
- Special-purpose probes are offered for a variety of applications
M5 Digital Force Gauge
Click image for more info
Advanced Digital Force Gauge - Model M5
- High-speed 7,000 Hz peak sampling rate
- 1,000-point data memory with statistics and outputs
M4 DIgital Force Gauge
Click image for more info
Digital Force Gauge with Output
- USB, RS-232, Mitutoyo, and analog outputs
- 3,000 Hz peak sampling rate
Click image for more info
Professional Digital Force Gauge
- High-speed 14,000 Hz sampling rate
- Individual data point memory for up to 5,000 data points, downloadable to a PC
TI-25DL-MMX Through Paint Ultrasonic Thickness Gauge
Click image for more info
- Ability to measure through paint and eliminate coatings
- RS-232C Serial output for downloading stored data to a printer or computer
Torque Tool Tester
Click image for more info
Torque Tool Tester - AWS-QC
- Bidirectional accuracy of ± 1% of indicated reading

Specifications

General
Print Method8 Pin Shuttlel Impact Printing
Dots per Line144
No. Of Columns24
Print Speed2.5 Lines per Second
Paper Feed Speed18 Lines per Second
Character Size1.7 x 2.6 mm
Dot Size0.33 x 0.38 mm
Font Size(5+1) x 7 Dots
Line Spacing3 Dots
InterfaceType S
Memory Data Buffer1 KB
Paper LoadingManual
Paper Feed MethodFriction
No. Of CopiesOriginal + 1 Copy
Ink RibbonERC-09, ERC-22 Purple or Black
Size
Dimensions (WxDxH)178 x 105 x 82 mm
Weight400 g
Paper
Paper TypeRoll Paper (Plain)
Width2.25"
Diameter2.25"
Power Supply
TypeExternal Adaptor
Input, Output110-220 VAC, 7.5 VDC, 2.5 Amps
Environmental
Operating Condition0 to 50°C, 10 to 80% RH
Reliability
MCBF1.5 Million Lines

Downloads

Buy Now

Item Description Price
Battery-Powered Portable Serial RS-232 Impact Printer supplied with AC-Adapter/Charger
$350.00
Accessories
P-190-PR5
5 Rolls of Paper for P-190 Printer
$20.00
P-190-RIBBON
Replacement Ribbon for P-190 Portable Printer
$10.00
DB25M-DB9M
DB25M to DB9M Adapter
$10.00
CBL-RS232
RS232 Serial Cable for Torque Testers (QC, QCM, 3000, MTM, AWS-4050)
$95.00
09-1163
Serial Output Cable DB9 for connecting Mark-10 Gauges to P-190
$75.00
G03-0086
RS-232 Data Output Cable for MTG / DD-4 / DD-5 / DD-100
$245.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
