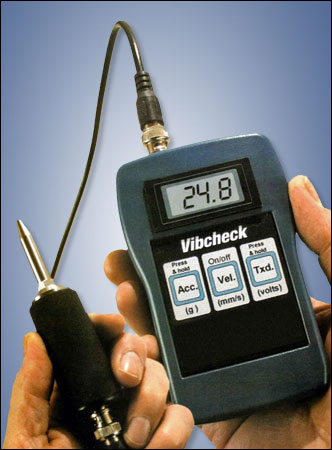

The VIBCHECK is a versatile Vibration Meter which comes complete with transducer, probe and carrying case. Ideal for the maintenance engineer, measurements can be taken quickly and easily in both Acceleration and Velocity units as required.
Additional probes & Transducers are optionally available where regular checks need to be made from fixed Transducers attached to machine, this method provides more accurate & consistent results.
- Lightweight & easy to use
- Measures Vibration (velocity & Acceleration)
- Optional fixed Transducers & mounting devices
- Low cost, entry level vibration monitoring
- Vibration management according to ISO 10816 (formerly ISO 2372)
- Includes Traceable Calibration Certificate
| Display | 3 1/2 digit LCD |
| Measuring Ranges | Vibration: Velocity 0-50mm/s True RMS Acceleration 0-20g Bias: Volts |
| Frequency Range | 10 Hz - 1kHz (velocity) 10Hz - 10kHz (acceleration) |
| Accuracy | Vibration: ± 0.1mm/s (± 0.1g) Bias: 5% |
| Sensor input | For hand held or fixed transducers |
| Power | 1x 9V Battery, 30 hour battery life |
| Dimensions | 125mm x 80mm x 35mm |
| Included Accessories | Meter, 50mm Sensing Spike, Cable, Battery, Instructions, Vibration booklet and Carrycase |
| Accelerometer Specs | --------------------------- |
| Dimensions | ø32mm x 80mm |
| Weight | 172 gms |
| Type | Piezo Electric |
| Sensitivity | 100mV/g |
| Connection | BNC socket |
| Mounting Thread | ¼" UNF female |
| Spike Specs | --------------------------- |
| Material | Stainless Steel |
| Mounting Thread | ¼" UNF male |
| Length | 50mm (Standard) other sizes available |
| Weight | 24 grams |
| Cal Certificate | Traceable Calibration Certificate in manual |
| ISO Norms | ISO 10816 (formerly ISO 2372) |
• Stud length options: 25mm, 100mm, 200mm
• Rechargeable battery and charger
• Quicklock studs for repeatable results
• Magnetic mounting base
• Cable options: Coiled cable Armored cable
• Fixed accelerometers for inaccessible or inhospitable measurement points
• Rechargeable battery and charger
• Quicklock studs for repeatable results
• Magnetic mounting base
• Cable options: Coiled cable Armored cable
• Fixed accelerometers for inaccessible or inhospitable measurement points
