ST-320BL Black Light LED Stroboscope (UV Strobe)

ST-320BL Black Light LED Stroboscope
Click images to enlarge.
The new ST-320BL Black Light LED Stroboscope provides light in the Ultraviolet spectrum required to illuminate UV Inks used in security tags, watermarks, labels and more. The ST-320BL can be used as a hand-held portable strobe or fixed-mounted for continuous use. It features long-life LEDs that provide even light distribution and don't require replacement like conventional xenon type strobes.

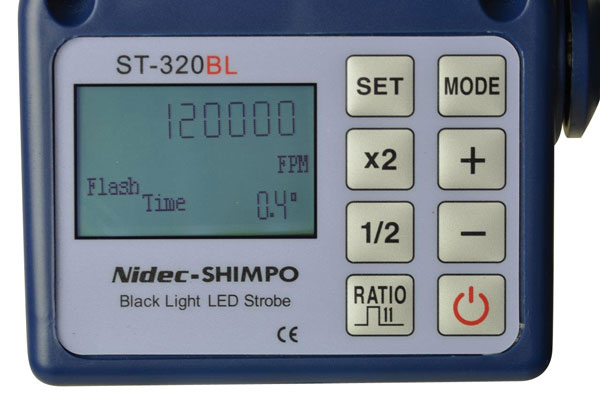

Operation is simple using an 8-button keypad and quick rate adjustment dial, combined with large, backlit LCD display. Phase shift, flash duration and flash rate are all quickly adjustable. It also features "x2" and "1/2" keys to quickly "double" or "half" the flash rate to identify the correct flash frequency. The unit can be externally-triggered from a remote sensor. The Wide Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz) can be adjusted to meet almost any high-speed application.

Three models are offered; the ST-320BL-2 battery-powered version if offered with built-in rechargeable batteries supplied with a universal charger for use worldwide, the ST-320BL-1 is AC-Powered for use on 115V AC and the ST-320BL-1-230V for use on 230V AC.


  • Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz)
  • Flash rate can be set via controls on strobe or externally-triggered from a remote sensor
  • "x2" and "1/2" keys to quickly "double" or "half" the flash rate to identify the correct flash frequency
  • 1/4-20 UNC threaded bushing for permanent mount applications (remove trigger handle)
  • User selectable units of FPM (Flashes/Min) or Hz
  • Backlit LCD Dispay useful in low ambient lighting conditions
  • User-selected flash durations provides optimal settings for image sharpness/brightness
  • Battery-powered model ST-320BL-2 can operate continuously from supplied AC-Adapter/Charger


Flash Rate Range60 to 120,000 Flashes/Min (1-2000 Hz)
Accuracy0.01%±1 digit of F.S. @ 77° F (25°C)
Lamp LifetimeApproximately 3~5 years depending on usage
DisplayBacklit LCD
Resolution60 ~ 12,000 FPM = 0.1 FPM
12,001 ~ 120,000 FPM = 1 FPM
1 ~ 200 HZ = 0.01 Hz
201 ~ 2000 = 0.1 Hz
Flash Duration0.1°- 2.5°
Phase Shift0-359°
Power RequiredST-320BL-1 (115V AC)
ST-320BL-1-230V (230V AC)
ST-320BL-2 (Rechargeable Battery supplied with Universal Charger 100-240V AC)
Battery (ST-320BL-2)Lithium DC 10.8V 2000mA
Battery Life (ST-320BL-2)Approx. 12 hrs depending on setting
Input Signal12 V Pulse Input; 3 pin M-12
Input Signal Range60-120,000 FPM (1-2000 Hz)
Input Pulse WidthOver 50 μs
Input Signal Flash Delay0-999 ms; 0-359° (user-set)
Temperature Limits32-95°F (0-35°C)
Humidity Limits35 to 85% RH
Included AccessoriesCarrying Case, ST-320BL-1: 6.5’ (2 m) AC power cord; ST-320BL-2: Power Recharging Adapter with cord

Complete Kit

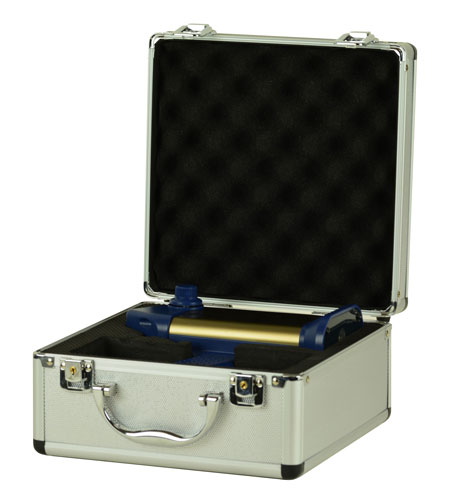

The ST-320BL is supplied as a complete kit including the strobe, foam-fitted aluminum carrying case with latches/handle and instruction manual. AC-models provided with power cord. Battery-powered model ST-320BL-2 supplied with Universal AC Battery Charger (100 - 240V AC).


Buy Now

Item Description Price
Blacklight UV Portable Stroboscope - 115V AC-powered
Black Light UV Stroboscope (230V AC-Powered) supplied in Aluminum Carrying Case
Blacklight UV Portable Stroboscope - Internal battery-powered
Front Rubber Strobe guard for ST-320BL
Upper Handle for ST-320BL Stroboscope
Proximity sensor with M-12, 3 pin connection
NIST Traceable Calibration Certificate
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
