TT05 Universal Torque Tester

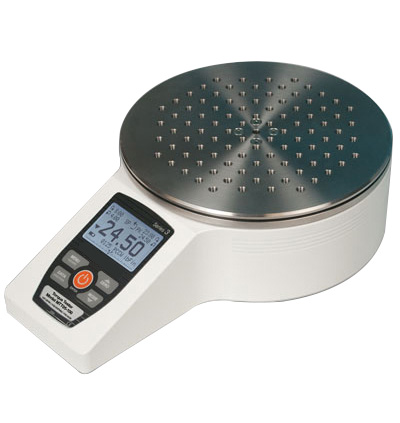

Mark-10 TT05 Torque Tester
Click images to enlarge.

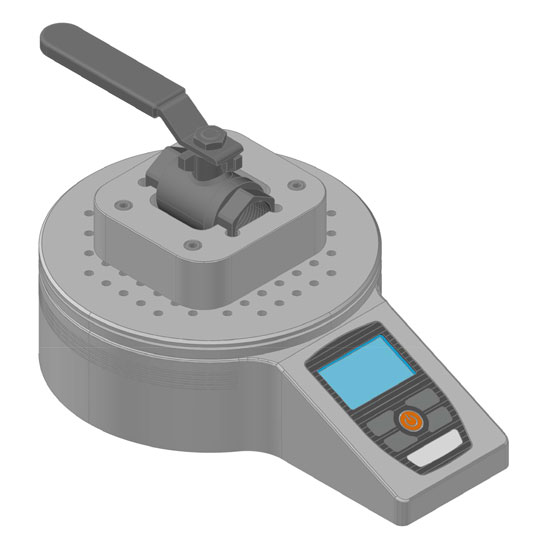

Series TT05 universal torque testers can be used for a range of applications up to 100 lbFin [11.5 Nm]. The stainless steel loading surface features a matrix of threaded holes, ideal for accommodating specialized fixtures and attachments. The testers' rugged design and simple, intuitive operation allow for use in laboratory and production environments.

Accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.

The TT05 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon sample break, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for torque tool testing, tamper evident closure testing, and other applications.

Series TT05 testers include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data stored in the TT05’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

Features

  • Stainless steel loading plate with #10-32 threaded holes accommodates fixtures and attachments

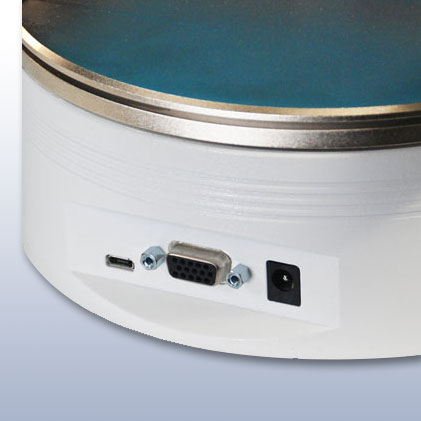

  • USB, RS-232, Mitutoyo, and analog outputs

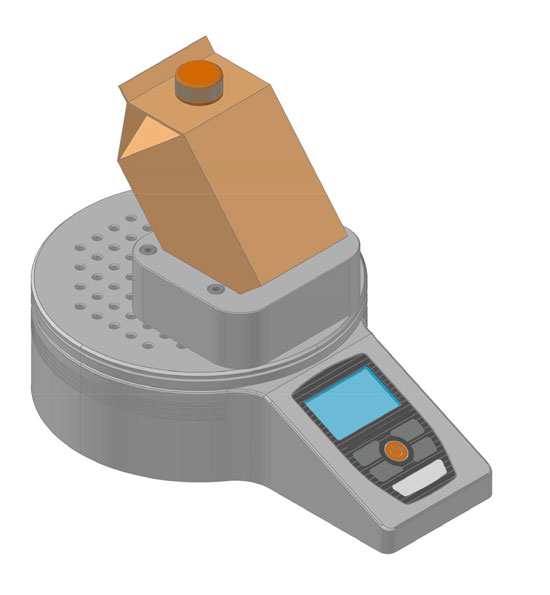

  • First / second peak detection for torque tool testing, bottle cap testing, and other applications
  • Password protection prevents unauthorized changes
  • High-speed 7,000 Hz sampling rate accurately captures peak torque values
  • 5 selectable units of measurement
  • Threaded holes are not drilled through the plate, for protection from debris and liquid
  • Automatic output, data storage, and zeroing upon sample break helps automate testing processes
  • 1,000-point data memory with statistics and outputs

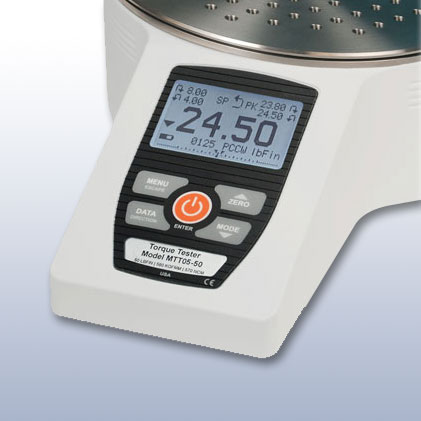

  • Programmable set point indicators and outputs for pass/ fail determination
  • Configurable audio alarms and key tones
  • MESURTM Lite data collection software included

Torque Ranges

Model lbFin ozFin lbFft Ncm Nm
MTT05-12 12.000
00.005
192.0
000.1
1.0000
0.0005
135.0
000.1
1.350
0.001
MTT05-25 25.00
00.01
400.0
000.2
2.000
0.001
290.0
000.2
2.900
0.002
MTT05-50 50.00
00.02
800.0
000.5
4.000
0.002
570.0
000.5
5.700
0.005
MTT05-100 100.00
000.05
1600.0
1.0
8.000
0.005
1150.0
0000.5
11.500
00.005

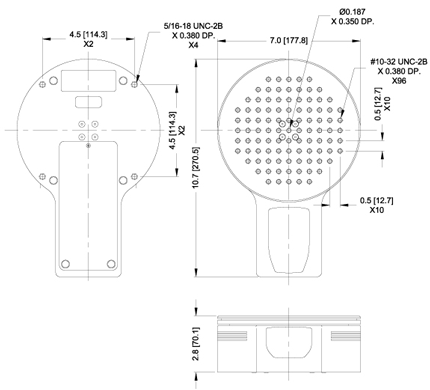

Dimensions

Specifications

Accuracy±0.3% of full scale
Sampling Rate7,000 Hz
PowerAC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery LifeBacklight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement UnitsozFin, lbFin, lbFft, Nm, Ncm
OutputsUSB / RS-232: Configurable up to 115,200 baud.
Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1V DC, ±0.25% of full scale at capacity.
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Safe Overload150% of full scale (display shows "OVER" at 110% and above)
Weight10.9 lb (4.9 kg)
Included ItemsUniversal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration (data is available for an additional charge).
Warranty3 years

Downloads

Buy Now

Item Description Price
Torque tester, 12 lbFin / 192 ozFin / 14 kgFcm / 135 Ncm / 1.35 Nm
$1,353.75
Torque tester, 25 lbFin / 400 ozFin / 28 kgFcm / 290 Ncm / 2.9 Nm
$1,277.75
Torque tester, 50 lbFin / 800 ozFin / 58 kgFcm / 570 Ncm / 5.7 Nm
$1,277.75
Torque tester, 100 lbFin / 1600 ozFin / 116 kgFcm / 115 Ncm / 11.5 Nm
$1,353.75
Accessories
NISTCAL-10PT
Upgrade Calibration Cert with 10 Data Points (CERT)
$85.00
CT002

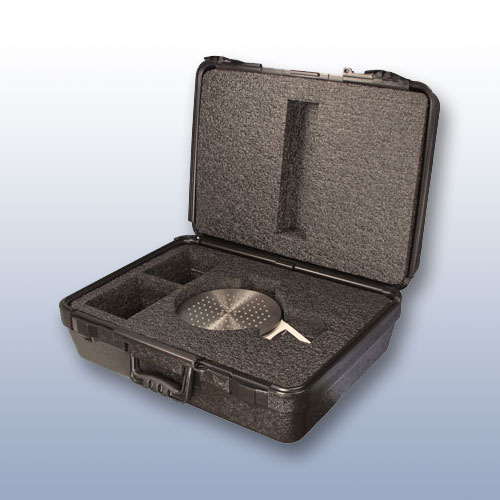

Carrying case for CAP-TT01
$220.00
AC1111
USB cable, type micro B to A, old PN 09-1165
$30.00
AC1109
Serial Output Cable DB9 for M10 Force / Torque Gauges, old PN 09-1163
$80.00
AC1118
Spare rechargeable battery for M-10 Gauges, old PN 08-1026
$20.00
AC1030
AC adapter, with USA Plug for M10 Gauges
$45.00
AC1031
AC adapter with Euro Plug
$45.00
AC1032
AC adapter with UK Plug
$45.00
AC1035
AC adapter with AUS Plug
$45.00
