TT-HYRD Torque Tester for multipliers, rotating and geared torque wrenches.

Made in USA

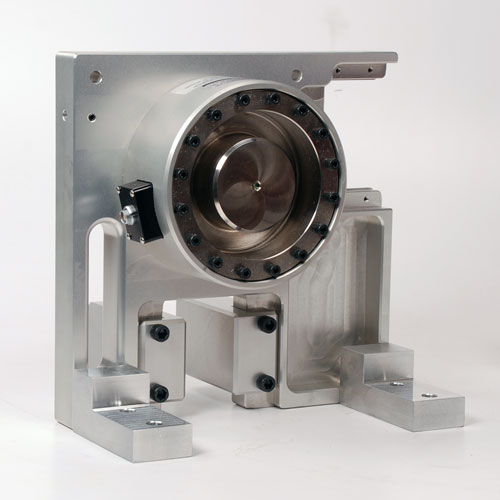

HYRD Torque Tester for high capacity power multipliers, wrenches and drivers
Click images to enlarge.

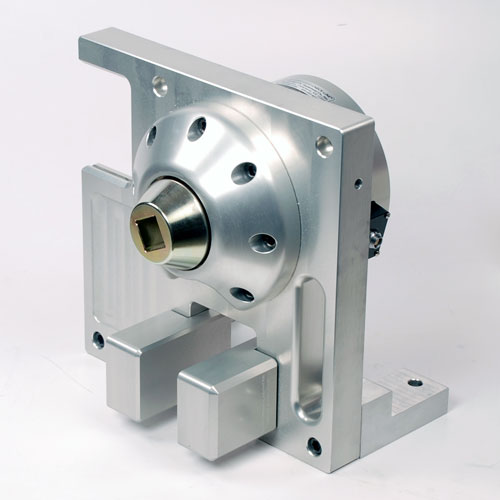

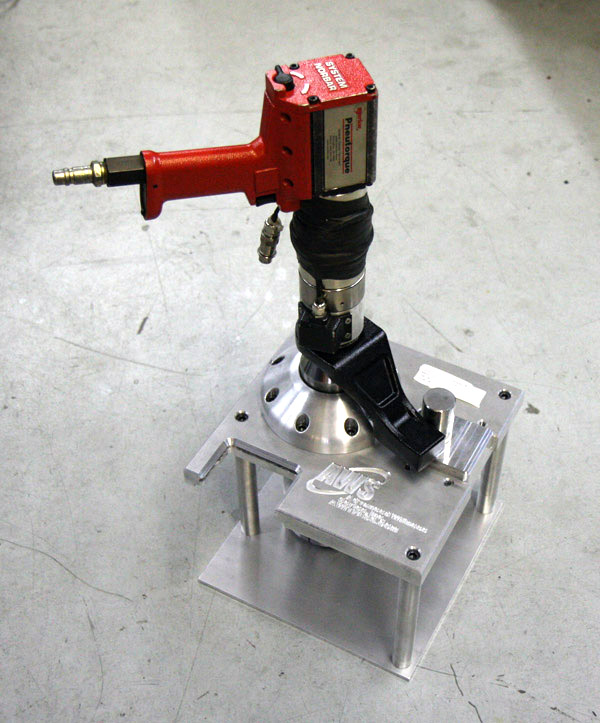

The TT-HYRD Series of run-down torque testers are designed for precision testing of powered multipliers, nut-runners and geared torque wrenches. A machined aluminum frame is designed to be lightweight and rugged while a bearing supported run-down fixture protects the transducer from side load.

Accuracy is ±0.5% of indicated reading, from 5-100% of the rated capacity, satisfying metrology lab requirements.

The TT-HYRD is available with a built-in display, or without display for customers that prefer to use an external display that can be used with other torque transducers.

Commonly used for testing Atlas Copco, Ingersoll Rand, e-Rad, Norbar, Milwaukee and many other brands.

Features

  • Includes NIST Traceable Calibration Certificate
  • Bearing Supported Run-Down-Fixture
  • Heavy Duty Construction
  • Supplied with dual reaction paddles
  • Does not need to be bolted down
  • Built to order, customization available, inquire

Torque Ranges

ModelCalibrated Measuring RangeDimensionsWeightDrive
41011-HYRD50 - 1000 lb-ft / 67.5 - 1355 Nm12" x 12"20 lbs1.5" F Square
41012-HYRD125 - 2500 lb-ft / 170 - 3400 Nm12" x 12"25 lbs1.5" F Square
41013-HYRD250 - 5000 lb-ft / 340 - 6800 Nm12" x 12"30 lbs1.5" F Square
41014-HYRD375 - 7500 lb-ft / 505 - 10100 Nm12" x 12"35 lbs1.5" F Square
41015-HYRD500 - 10000 lb-ft / 675 - 13550 Nm18" x 24"65 lbs1.5" F Square

Related Products

AWS-4050 Torque Display
Click image for more info
Digital Torque Display
- Can be calibrated to virtually any manufacturer’s strain gauge transducers.
- Bidirectional accuracy of ±0.5% of indicated reading with AWS transducers, ±1% of indicated reading with rotary transducers.
Impact Torque Tester
Click image for more info
Impact Torque Wrench Tester
- Counts Pulses / Blows while displaying peak torque
- Heavy Duty Construction
Hydraulic Torque Wrench Tester
Click image for more info
Hydraulic Wrench Torque Tester, Torque Multiplier Tester
- Heavy Duty Construction
- Adjustable Position Reaction Post

Specifications

Calibrated Range5-100% Full Scale, bi-directional
Accuracy±0.5% of indicated (within calibrated range)
Overload Protection200% Full Scale bi-directional
Warranty1 Year
Operating Temp32 - 120 °F (0-50 °C)
Specifications below for Optional Display
Operating ModesTrack, Peak, 1st Peak
Resolution4 Active Digits
FilteringSelectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memorydata storage of up to 999 readings
Data OutputRS-232
Display62 x 62mm backlit LCD
Alarm LimitsPanel Mounted LED for Visual Alarm Limits
PowerRechargable NiMH batteries provide 10 -12 hours of continuous use

Buy Now

Item Description Price
1000 Lb-Ft / 1355Nm Test Stand, 1.5" F Dr, WITH Run-Down-Fixture
$4,095.00
2500 Lb-Ft / 3400 Nm Test Stand, 1.5" F Dr, WITH Run-Down-Fixture
$4,295.00
5000 Lb-Ft / 6800 Test Stand, 1.5" F Dr, WITH Run-Down-Fixture
$2,856.75
7500 Lb-Ft / 10100 Nm Test Stand, 1.5" F Dr, WITH Run-Down-Fixture
$4,795.00
1000 Lb-Ft / 1355Nm Test Stand, 1.5" F Dr, WITH Run-Down-Fixture and Display
$5,495.00
2500 Lb-Ft / 3400 Nm Test Stand, 1.5" F Dr, WITH Run-Down-Fixture and Display
$5,695.00
5000 Lb-Ft / 6800 Nm Test Stand, 1.5" F Dr, WITH Run-Down-Fixture and Display
$5,695.00
7500 Lb-Ft / 10100 Nm Test Stand, 1.5" F Dr, WITH Run-Down-Fixture and Display
$6,195.00
