TT-HY Hydraulic Wrench Torque Tester, Torque Multiplier Tester

Made in USA
Hydraulic Torque Wrench Tester
Click images to enlarge.

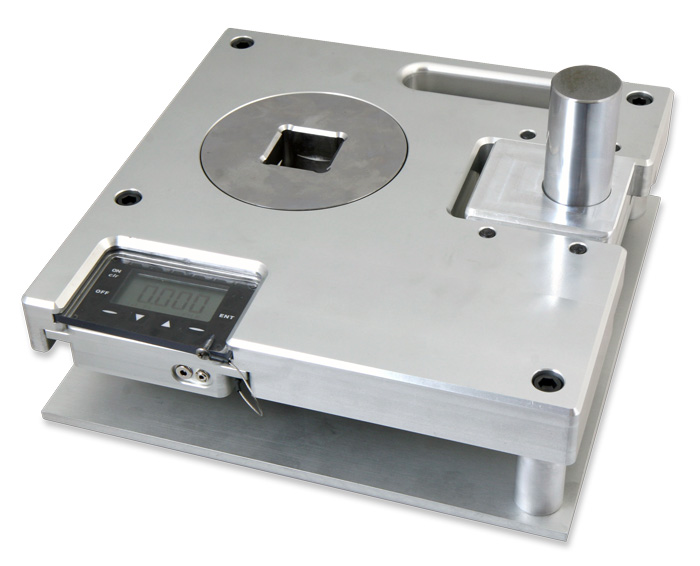

The TT-HY Series of torque testers are designed for precision testing of hydraulic torque wrenches and manual torque multipliers. A machined aluminum frame is designed to be lightweight and rugged providing a long service life in harsh industrial environments.

For most conventional hydraulic wrenches the output square is simply inserted into the internal square of the transducer and then the wrench is activated against the reaction device and the maximum torque will be displayed and/or recorded by the torque analyzer.

When testing cassette type hydraulic wrenches a drive adapter is inserted into the internal drive of the transducer and the cassette wrench is placed over the adapter then activated against the reaction device. Custom drive adapters are available, inquire for details.

Accuracy is ±0.5% of indicated reading, from 5-100% of the rated capacity, satisfying metrology lab requirements.

The TT-HY is available with a built-in display, or without display for customers that prefer to use an external display that can be used with other torque transducers.

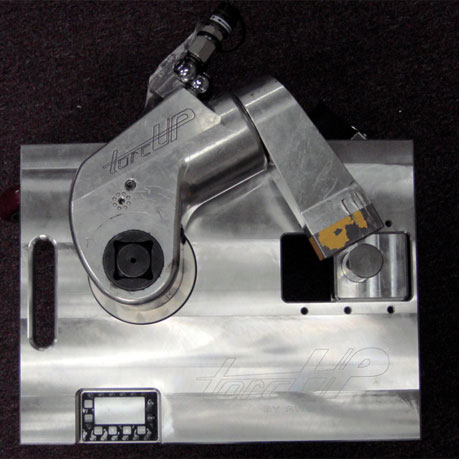

Commonly used for testing Rad, Hytorc, Cleco, TorcUP and many other hydraulic wrenches.

Features

  • Includes NIST Traceable Calibration Certificate
  • Heavy Duty Construction
  • Adjustable Position Reaction Post
  • Does not need to be bolted down
  • Built to order, customization available, inquire
  • Available with Pressure Sensors for Torque vs PSI measurement

Models / Torque Ranges

ModelCalibrated Measuring RangePlate DimensionsWeightType
41011-HY50 - 1000 lb-ft / 67.5 - 1355 Nm12" x 12"20 lbsTable Stand
41012-HY125 - 2500 lb-ft / 170 - 3400 Nm12" x 12"20 lbsTable Stand
41013-HY250 - 5000 lb-ft / 340 - 6800 Nm12" x 12"20 lbsTable Stand
41014-HY375 - 7500 lb-ft / 505 - 10100 Nm12" x 12"25 lbsTable Stand

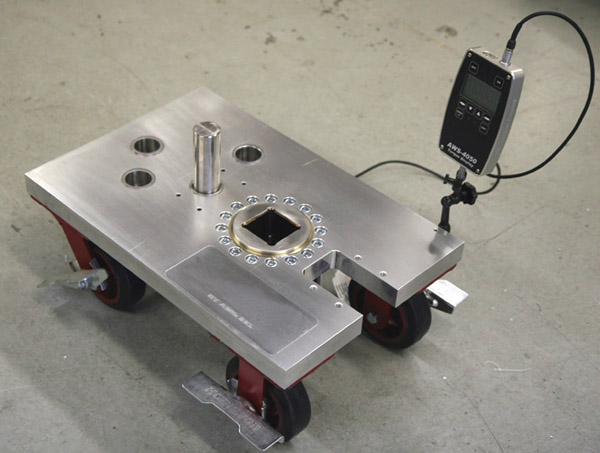

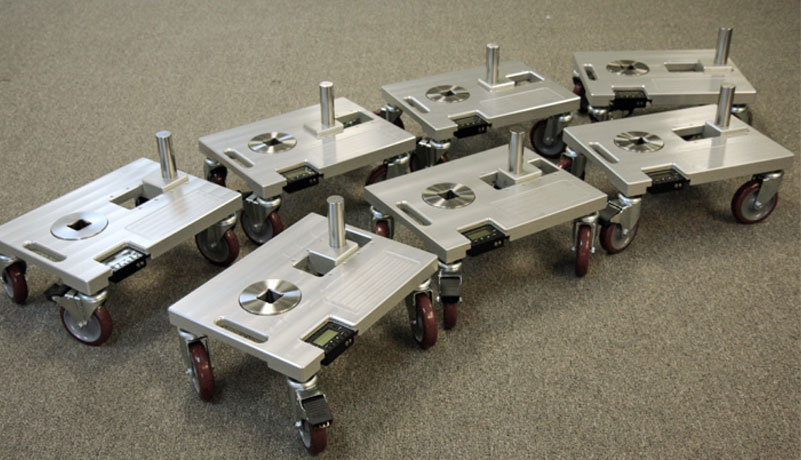

4101150 - 1000 lb-ft / 67.5 - 1355 Nm14" x 19"50 lbsHeavy-Duty Rolling Cart
41012125 - 2500 lb-ft / 170 - 3400 Nm14" x 19"50 lbsHeavy-Duty Rolling Cart
41013250 - 5000 lb-ft / 340 - 6800 Nm14" x 19"50 lbsHeavy-Duty Rolling Cart
41014375 - 7500 lb-ft / 505 - 10100 Nm14" x 19"50 lbsHeavy-Duty Rolling Cart
41015500 - 10000 lb-ft / 675 - 13550 Nm18" x 24"65 lbsHeavy-Duty Rolling Cart
410251250 - 25000 lb-ft / 1700 - 34000 Nm18" x 24"65 lbsHeavy-Duty Rolling Cart
410162500 - 50000 lb-ft / 3400 - 68000 Nm18" x 24"75 lbsHeavy-Duty Rolling Cart
