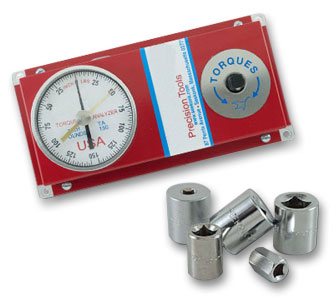

TA-Series Torque Analyzer - Dial Torque Tester

Made in USA

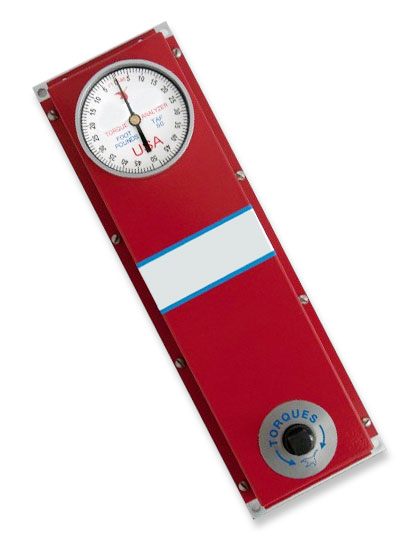

Analog Torque Analyzer
Click images to enlarge.
TA Series dial torque testers are designed to test the calibration of click wrenches, dial wrenches and other manual torque tools. The TA series provides a means of quick and economical standardization. All models are guaranteed accurate to within +/- 2% of the indicated reading from 20% to 100% of the full range. Available with memory needle or Metric/English dial.

For use with hand operated tools only. Not for use with pneumatic or electric powered tools.

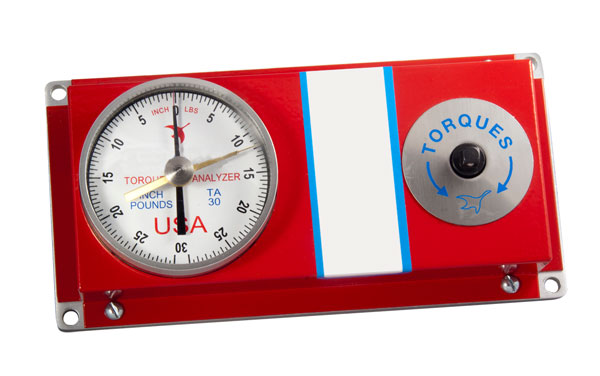

TA-30 Torque Tester

Features

  • Made in the USA
  • Includes NIST Traceable Calibration Cert
  • Memory Pointer included on MD models. Holds highest reading until reset.
  • 1 Year Warranty

Torque Ranges

Model Range Drive Size Graduations
TA-30-MD
0 - 30 lbf-in
-
1/4" Male Square Dr 1/2 in-lbs
TA-75-MD
0 - 75 lbf-in
-
1/4" Male Square Dr 1 in-lbs
TA-100-MD
0 - 100 lbf-in
-
1/4" Male Square Dr 2 in-lbs
TA-150-MD
0 - 150 lbf-in
-
3/8" Male Square Dr 2 1/2 in-lbs
TA-300-MD
0 - 300 lbf-in
-
3/8" Male Square Dr 5 in-lbs
TA-600-MD
0 - 600 lbf-in
-
3/8" Male Square Dr 10 in-lbs
TAF-50-MD
-
0 - 50 lbf-ft
1/2" Male Square Dr 1 ft-lbs
TAF-100-MD
-
0 - 100 lbf-ft
1/2" Male Square Dr 2 ft-lbs
TAF-150-MD
-
0 - 150 lbf-ft
1/2" Male Square Dr 2 1/2 ft-lbs
TAF-200-MD
-
0 - 200 lbf-ft
1/2" Male Square Dr 5 ft-lbs

Related Products

Torque Tool Tester
Click image for more info
Torque Tool Tester - AWS-QC
- Bidirectional accuracy of ± 1% of indicated reading
TT-QCM Torque Tester
Click image for more info
Torque Wrench Tester
- ±0.5% Accuracy of indicated reading from 10-100% of the capacity (Bidirectional), ±0.25% Optional

Specifications

Accuracy± 2% of reading from 20% - 100% of full range

Buy Now

Item Description Price
Torque Analyzer - 0 - 30 in-lbs with Memory and 1/4 in Female Drive Adapter FFA-10
$807.90
Torque Analyzer - 0 - 75 in-lbs with Memory and 1/4 in Female Drive Adapter FFA-10
$807.90
Torque Analyzer - 0 - 100 in-lbs with Memory and 1/4 in Female Drive Adapter FFA-10
$807.90
Torque Analyzer - 0 - 150 in-lbs with Memory Pointer and 3/8 in Female Drive Adapter FFA-12
$814.55
Torque Analyzer - 0 - 300 in-lbs with Memory Pointer, 3/8 in Female Drive Adapter FFA-12
$927.15
Torque Analyzer - 0 - 600 in-lbs with Memory and 3/8 in Female Drive Adapter FFA-12
$927.15
Torque Analyzer - 0 - 50 ft-lbs with Memory and 1/2 in Female Drive Adapter FFA-13
$938.10
Torque Analyzer - 0 - 100 ft-lbs with Memory and 1/2 in Female Drive Adapter FFA-13
$938.10
Torque Analyzer - 0 - 150 ft-lbs with Memory and 1/2 in Female Drive Adapter FFA-13
$938.10
Torque Analyzer - 0 - 200 ft-lbs with Memory and 1/2 in Female Drive Adapter FFA-13
$938.10
Accessories
FFA-10
Female to Female Adapter - 1/4" x 1/4"
$46.85
FFA-11
Female to Female Adapter - 1/4" x 3/8"
$53.50
FFA-12
Female to Female Adapter - 3/8" x 3/8"
$53.50
FFA-13
Female to Female Adapter - 1/2" x 1/2"
$64.45
FFA-14
Female to Female Adapter - 1/2" x 3/8"
$64.45
FFA-15
Female to Female Adapter - 1/2" x 1/4"
$53.50
TA-MDO
Metric Dial option for TA Series Torque Analyzers
$82.95
T2-CERT
Upgrade to long form calibration cert with data (per item)
$140.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
