LTT Mountz LTT Torque and Angle Analyzer with USB Output

Made in USA

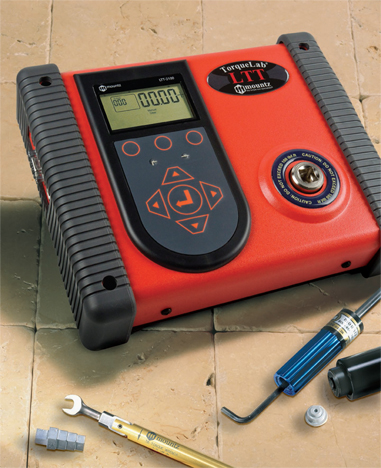

Mountz LTT Torque Analyzer
Click images to enlarge.
The LTT torque analyzer is designed for calibrating tools, joint testing, auditing and measuring torque. Torque tools go out of calibration with use. To maintain consistent accuracy, torque tools must be checked periodically for wear or defective parts. A power or hand torque tool is a measuring tool that must be properly calibrated and maintained. The LTT-Series is an advanced torque testing and documentation solution. Using a quality torque tester makes a safer world through accuracy and precision. Controlling torque is essential for companies to ensure their product’s quality, safety and reliability isn’t compromised.

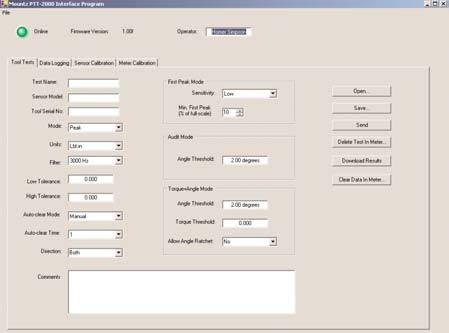

The LTT includes three PC Windows based software programs:
Torque Meter Interface Program - for sensor calibrations, meter calibration and tool tests.
Torque Meter Bootloader - for updating the LTT operating systems.
Statistics Calculator - for SPC, CP & CPK calculations.

Features

  • Accuracy +/- 0.5% of reading from 20% to 100% of full scale.
    Accuracy +/- 1% of reading from 10% to 20% of full scale.
  • Provides “EZ-Plug & Play.” Features an instant auto-recognition system of the transducer connected to the LTT.
  • Built-in Tool Tests operation.
  • Stores a total of 2500 data points.
  • Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm). Two units of force measurements: (lbf and kN)
  • Recommended for all hand screwdrivers, wrenches or power tools.
  • "Flash" memory allows upgrades to be done by the user in the field & internet through the USB port.
  • Selection of six operating modes: (Track, Peak, First Peak, Audit, Torque + Angle, and Tool Test).
  • Supplied with NIST-Traceable Certification of Calibration

Force Ranges

ModelRangeDrive
Size
LTT-10i1-10 lbf-in
11.3 - 113 cN-m
1.2 - 11.5 kgf-cm
1/4" F/Sq
LTT-25i2.5-25 lbf-in
28.25 - 282.5 cN-m
2.9 - 28.8 kgf-cm
1/4" F/Sq
LTT-50i5 - 50 lbf-in
56.5 - 565 cN-m
5.8 - 57.6 kgf-cm
1/4" F/Sq
LTT-100i10 - 100 lbf-in
113 - 1130 cN-m
11.5 - 115 kgf-cm
1/4" F/Sq
LTT-250i25 - 250 lbf-in
282.5 - 2825 cN-m
28.8 - 288 kgf-cm
1/4" F/Sq
LTT-50F5 - 50 lbf-ft
6.8 - 67.8 N-m
0.7 - 6.9 kgf-m
3/8" F/Sq
LTT-100F10 - 100 lbf-ft
13.56 - 135.6 N-m
1.4 - 13.8 kgf-m
1/2" F/Sq
LTT-250F25 - 250 lbf-ft
33.9 - 339 N-m
3.5 - 34.5 kgf-m
1/2" F/Sq

Related Products

Click image for more info
Bar Code Reader
Click image for more info
Brushless Rotary Torque Transducer Mountz
- The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.
Mountz RTSX Rotary Torque Tester
Click image for more info
Rotary Torque Transducer - Mountz
- Accuracy +/-.25% of full scale.
- Use with most hand tools, power tools or rotational measurement applications.
Rotary Torque and Angle Transducer - Mountz RTSX-A
Click image for more info
Rotary Torque and Angle Transducer
- Accuracy ± .25% of full scale.
- Angle Output: 2 channel quadrature, 360 pulses per rotation.
Mountz Torque Calibration Wheel
Click image for more info
Torque Wheel and Torque Segment Arm
- Supplied with NIST traceable calibration certificate
Run Down Adapters Mountz
Click image for more info
RDA
Run Down Adapters for Torque Testers

Tool Tests & Graphing

The LTT allows you to set up and create tool tests and save the readings so you can export the data to a PC for documentation. It’s the ideal solution for organizing and storing test data for ISO and SPC documentation.

The ability to graph a dynamic rundown allows joint analysis. Great resource to evaluate create or confirm a torque specification or toll being used in production.

The "Statics Calculator" allows operators to perform basic SPC, CP and CPK calculations.

Cable Chart

Transducer Cable Item #
RTSX-AA072000
BLRTSX072001
BMX072002
SDX072004
RTSX072005
ETX072006
*Contact Customer Service for connecting a SMX to the LTT

Standard Accessories

Universal Charger (100 - 240 VAC)
USB Cable
Software - Torque Meter Interface Program
Software - Torque Meter Bootloader
Software - Statics Calculator
Protective Cover

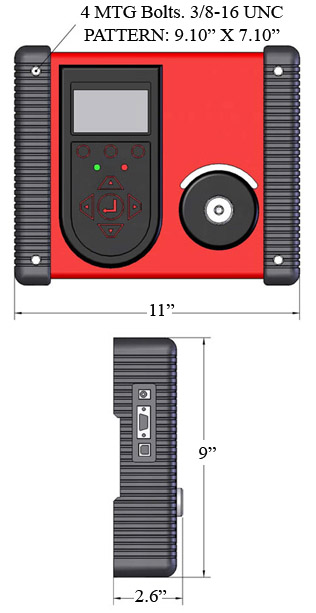

Dimensions

Downloads

Buy Now

Item Description Price
Torque Analyzer (1-10 lbf-in) - Mountz 068400
$3,700.00
Torque Analyzer (2.5-25 lbf-in) - Mountz 068401
$3,700.00
Torque Analyzer (5-50 lbf-in) - Mountz 068402
$3,700.00
Torque Analyzer (10-100 lbf-in) - Mountz 068403
$3,700.00
Torque Analyzer (25-250 lbf-in) - Mountz 068404
$3,700.00
Torque Analyzer (5-50 lbf-ft) - Mountz 068405
$3,950.00
Torque Analyzer (10-100 lbf-ft) - Mountz 068406
$3,950.00
Torque Analyzer (25-250 lbf-ft) - Mountz 068407
$3,950.00
Accessories
770319
USB Cable
$28.50
770303
Charger for PTT, LTT & EZ-TORQ II (100-240 VAC & 10 VDC)
$95.00
072506
Battery Pack
$170.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
