ETP DISCONTINUED, Replaced by TT-QCM

Click images to enlarge.
DISCONTINUED, Replaced by TT-QCM

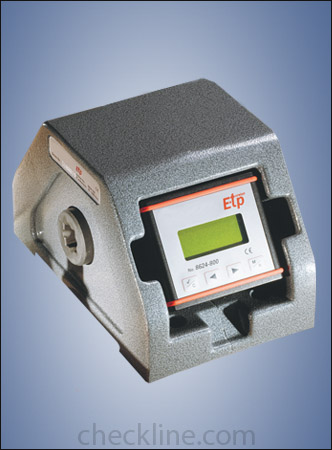

The ETP Electronic torque analyzer features a built in transducer for bi-directional test and calibration of torque wrenches.

Can be mounted for horizontal or vertical operation.

Robust aluminum housing with a detachable large LC graphic operating display.

Detachable operating display slips into stand (included) and can be positioned or mounted so the operator easily reads the display.

Detachable operating display slips into stand (included) and can be positioned or mounted so the operator easily reads the display.

Features

  • Selection of four Operation modes: (Track, Peak, 1st Peak & Final Peak)
  • Three units of torque measurement available: (lbf.in, lbf.ft, N.m)
  • RS-232 interface enables data, date and time to be downloaded to a PC or printer
  • Download readings to a printer or PC and includes date and time

Force Ranges

ModelRangeDrive
Size F/Sq
Adapters
Included
ETP-1003 - 73.7 lb-ft
4 - 100 N-m
1/2"1/4" & 3/8"
ETP-100036.9 -737.5 lbf-ft
50 - 1000 N-m
3/4"1/2" & 3/8"
