DWT-200 DTW-200 - Digital Torque Tester for Manual Torque Wrenches

Made in Japan

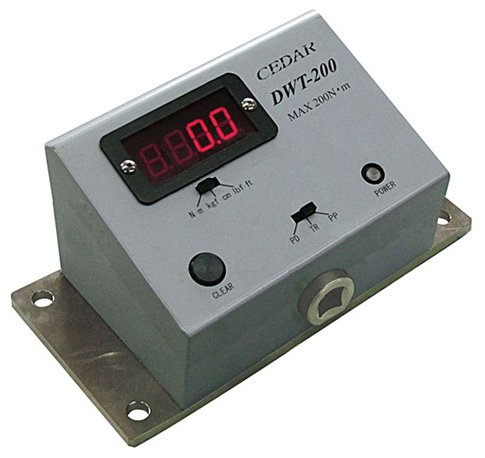

DWT-200 Digital Torque Tester For Manual Torque Wrenches
Click images to enlarge.
The DWT-200 Digital Torque Tester for Manual Wrenches is ideal for checking torque on manual torque wrenches up to 200 Nm / 1,500 lbf-in with an accuracy of ± .5% F.S., ± 1 LSD. The tester features 3 measurement modes: Peak Down, Peak, or Real Time measurement modes and selectable units lbf-in, kgf-cm, N-m.

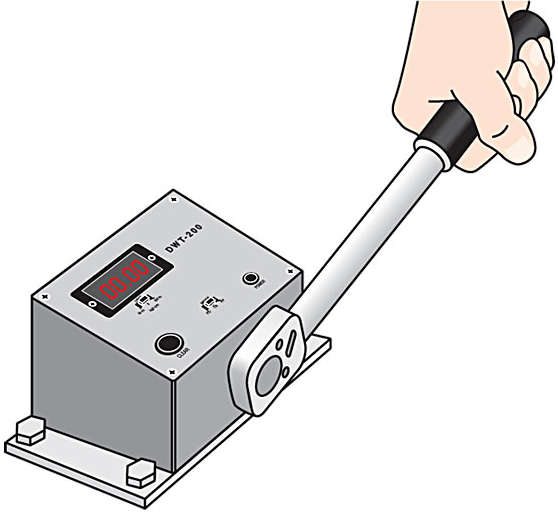

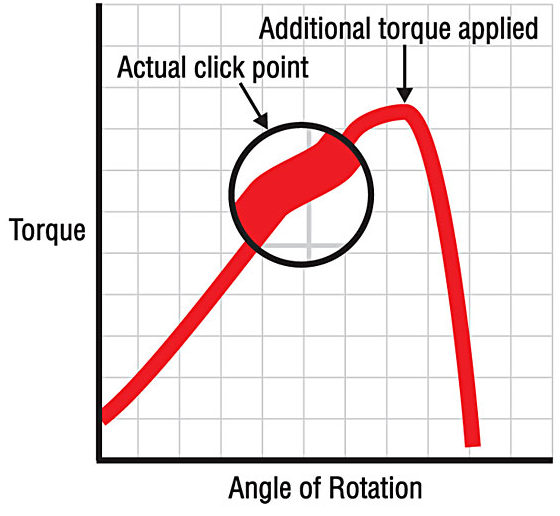

DWT-200 torque tester automatically captures the peak down torque, when the torque wrench clicks (breakaway torque), even though the operator may apply additional torque. This allows an unskilled operator to achieve the same accurate results as a skilled operator. With a rugged heavy-duty metal construction, the DWT-200 is durable enough for a production environment. The DWT-200 has a 1/2″ square drive, includes a 3/8″ square drive adapter, and runs about 20 hours continuously on four AA batteries. The optional vise mounting plate allows you to test anywhere there is a vise. The tester is intended to measure torque in the clockwise direction only.

The DWT-200 torque tester is sold as a kit. All kits include the torque tester, drive adapter, and carrying case. All new testers include a 3-point calibration certificate traceable to NIST. ISO-17025 certificates are available at an additional charge.

Do not use with power drivers or impact tools (Ask for DI-1M impact wrench torque tester).

Features

  • Proprietary peak down capture mode
  • Heavy duty metal construction
  • lbf-in, kgf-cm, N-m selectable
  • Peak Down, Peak, and Real Time measuring modes (selectable)
  • Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
  • Clockwise operation
  • 1/2″ square drive and 3/8″ square drive adapter
  • Auto power off (after 10 minutes of non use)
  • Runs on four AA batteries (about 20 hours continuous use)

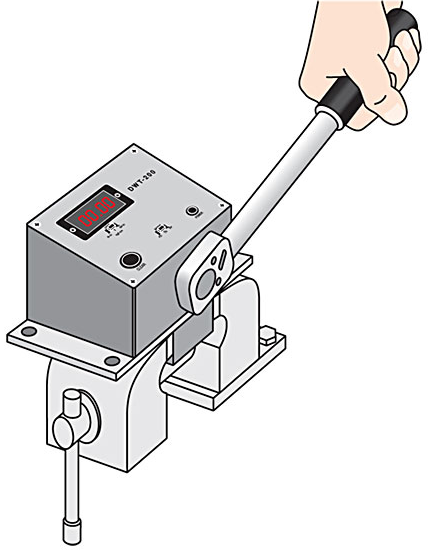

  • Optional vise mounting plate (AP-200V)

Torque Ranges

ModelRangeDrive
DWT-2007.0 - 200.0 Nm
70 - 1740 lbf-in
70 - 2000 Kgf-cm
1/2" Square with 3/8" Drive Adpater

Related Products

Torque Tool Tester
Click image for more info
Torque Tool Tester - AWS-QC
- Bidirectional accuracy of ± 1% of indicated reading
TT-3000 Torque Analyzer
Click image for more info
Torque Analyzer - AWS-3000
- ±0.5% Accuracy of indicated reading from 10-100% of the capacity (Bidirectional), ±0.25% Optional
MTMDP Torque Tester
Click image for more info
MTM
Multi-Range Torque Tester AWS
- Available with 2, 3 or 4 torque transducers
- LED Indicator Shows Active Transducer
AWS-1025 Mechanical Torque Loader
Click image for more info
Torque Wrench Loader AWS-1000 Series
- Rugged Machined Aluminum Construction
- Heavy-duty precision gear box for easy load application

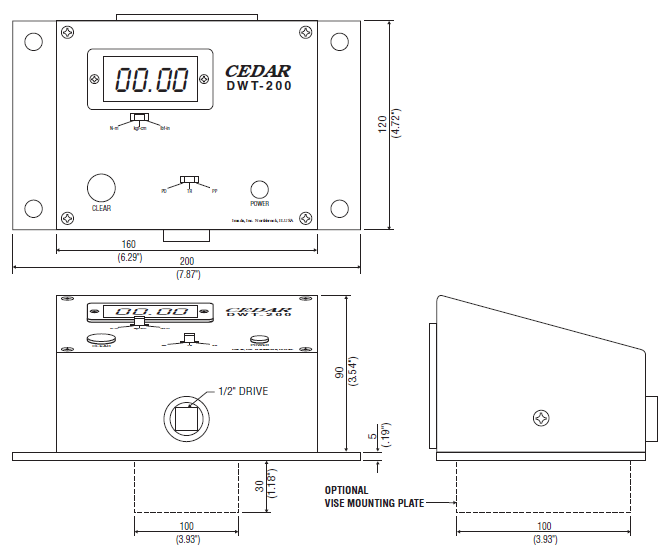

Dimensions

Specifications

Measuring DirectionClockwise ONLY
Accuracy+/-0.5% F.S. ±1 LSD
Power4x AA Batteries provide 20 hours of use

Buy Now

Item Description Price
Digital Torque Tester for Manual Tools, 200 Nm Capacity
$1,530.00
Accessories
ISO-17025
Upgrade from 3 point NIST traceable cert to ISO-17025 Certificate
$160.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
