DIS-IP Digital Torque Tester with Remote Sensor

Made in Japan

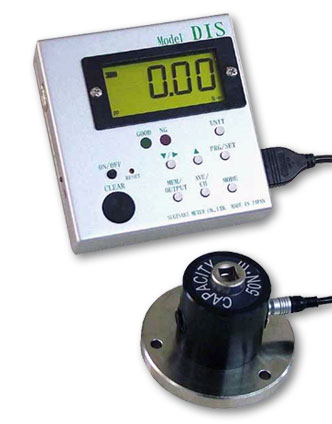

DIS-IP Torque Tester
Click images to enlarge.
The DIS-IP Digital Torque Tester with remote sensor is designed for verification and calibration of manual torque tools up to 362 lbf-ft / 500 Nm. The DIS-IP has an accuracy of ± 0.5% of rated capacity. Select Peak, Real Time or Peak Down measurement modes. Programmable high/low setpoints enable GO/NO GO testing; green lights between high and low setpoints, and red for under low and over high setpoint.

Use the 800 internal memory for peak data recall or USB download for analysis by Imada data acquisition software SW-1SV-USB.

DIS-IP Torque Tester can transfer data to PC
Calibrate your own torque wrenches and electric drivers and and save down time.

Not for use with powered or impact tools (Ask for DI-1M impact wrench torque tester).

Features

  • Heavy duty metal construction
  • lbf-in, kgf-cm, N-cm, or lbf-ft, kgf-m, N-m (see table below)
  • 800 data memory for recall or for SPC download
  • USB output for SPC capability
  • Peak, Real Time and Peak Down measuring modes (selectable)
  • Accuracy: ±0.5% F.S. ±1 LSD (32° to 100°F)
  • Both clockwise and counterclockwise operation
  • AC adapter/charger included
  • Runs on internal NiCad batteries (8 hour use)
  • Programmable High/Low setpoints with GO/NO GO LED indicators and audible beep

Torque Ranges

ModelCapacityDrive
DIS-IP50.20 - 44.00 lbf-in
0.20 - 50.00 kgf-cm
2.0 - 500.0 N-cm
0.020 - 5 N-m
1/4"
DIS-IP502.0 - 440.0 lbf-in
2.0 - 500.0 kgf-cm
20 - 5000 N-cm
0.20 - 50.00 N-m
3/8"
DIS-IP20020 - 1740 lbf-in
2.0 - 145 lbf-ft
0.20 - 20.00 kgf-cm
2.0 - 200.0 N-m
1/2"
DIS-IP50020 - 4400 lbf-in
2.0 - 362 lbf-ft
0.20 - 50.00 kgf-cm
2.0 - 500.0 N-m
3/4"

Related Products

Click image for more info
Data Acquisition Software for Torque
- Full SPC and graphing capabilities
- Automates your data collection
DI-1M Impact Tool Torque Tester
Click image for more info
Digital Torque Tester for Air Tools & Impact Wrenches
- Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
- USB data output (peak data only)

Downloads

Buy Now

Item Description Price
Digital Torque Tester with Remote Sensor, 44.00 lbf-in / 500 Ncm -1/4" Drive
$1,793.00
Digital Torque Tester with Remote Sensor, 440 lbf-in / 50 Nm - 3/8" Drive
$1,325.50
Digital Torque Tester with Remote Sensor 145 lbf-ft, 200 Nm - 1/2" Drive
$1,325.50
Digital Torque Tester with Remote Sensor, 362 lbf-ft / 500 Nm - 3/4" Drive
$1,269.00
Accessories
ISO-17025
ISO-17025 Accredited Calibration with Certificate
$220.00
Data Acquisition Software for Torque Testers with RS-232 or USB ports
$242.00
SS-208
USB output cable (formerly CB-208)
$33.00

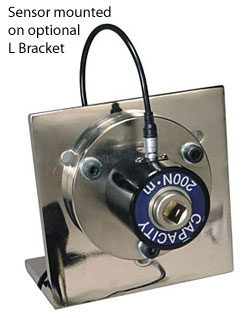

AP-100L-2
L-Plate Mounting Bracket for DI-1M-50
$253.00
AP-100L-3
L-Plate Mounting Bracket for DI-1M-200
$253.00
AP-100L-4
L-Plate Mounting Bracket for DI-1M-500
$225.50
6A-061WP12
Power Adapter for Cedar Torque Testers with USB Output (formerly 3A-066WP12-120)
$60.50
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
