DIS-RL Digital Torque Screwdriver

Made in Japan
DIS-RL Digital Torque Screwdriver
Click images to enlarge.

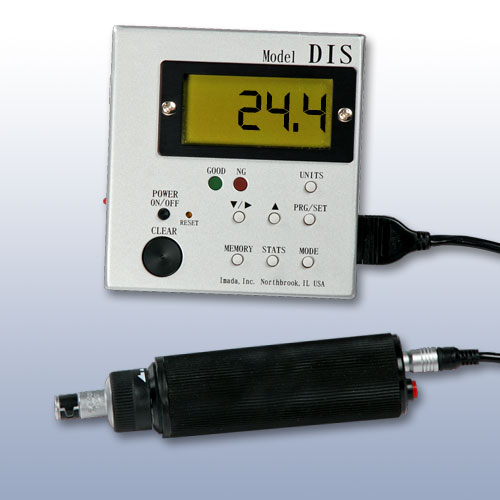

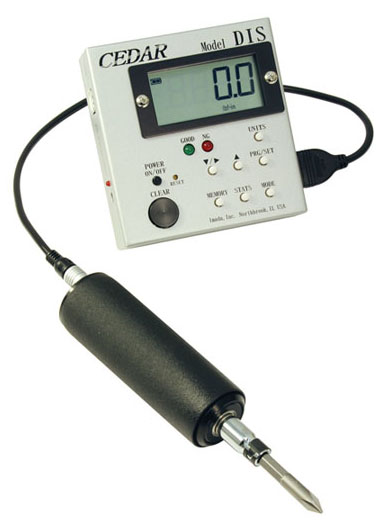

The DIS-RL Digital Torque Tester / Screwdriver is an ergonomically designed easy-to-use inspection device or production tool. It measures application or removal torque up to 90 lb-in. Torque controlled screwdrivers can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed.

This tester has an accuracy of ±0.5%, ± 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak and continuous data for SPC (statistical process control) via the USB port.

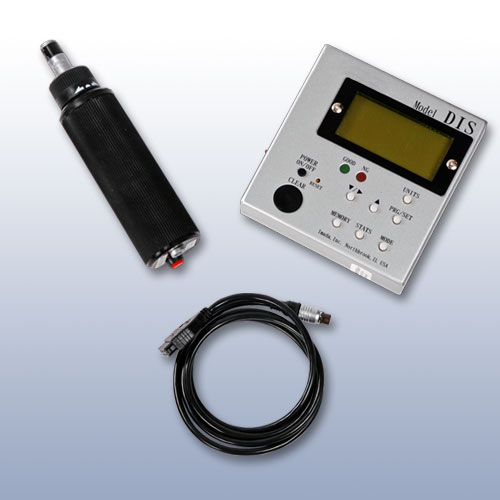

DIS-RL substantially reduces scrap and rework costs by eliminating over and under-tightening. It is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies. Sold in kit form including display unit, screwdriver with cable, AC adapter/charger and carrying case.

*The DIS-RL is Manually Operated, Not Motorized

Features

  • Includes NIST-Traceable Calibration Certificate
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • 2 Year Warranty
  • Peak, Real Time and Peak Down measuring mode (selectable)
  • 800 peak data memory for recall or for SPC download
  • Programmable High and Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing
  • Both clockwise and counterclockwise operation

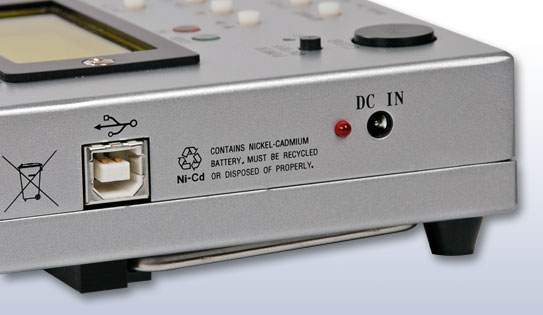

  • USB output for SPC capability
  • Runs on internal NiCad batteries (8 hour use)
  • Statistics: number of data, Max, Min, Avg
  • CW, CCW ratchet and fixed operation

Force Ranges

ModelCapacity
DIS-RL050.020 - 4.500 lbf-in
0.020 - 5.000 kg-cm
0.20 - 50.00 N-cm
DIS-RL20.10 - 18.00 lbf-in
0.10 - 20.00 kg-cm
1.0 - 200.0 N-cm
DIS-RL101.0 - 90.00 lbf-in
1.0 - 100.0 kg-cm
10 - 1000 N-cm
Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)

Related Products

TSD Digital Torque Screwdriver
Click image for more info
TSD
Digital Torque Screwdriver
- Clockwise & Counter Clockwise Torque Measurement
- 9 Programmable Target Torque Set-points
Click image for more info
Data Acquisition Software for Torque
- Full SPC and graphing capabilities
- Automates your data collection
DID-4 Digital Torque Screwdriver
Click image for more info
DID
Digital Torque Screwdriver
- Peak, Real Time and Peak Down measuring mode (selectable)
htgs torque tester
Click image for more info
Hand-held Digital Torque Gauge

Complete Kit

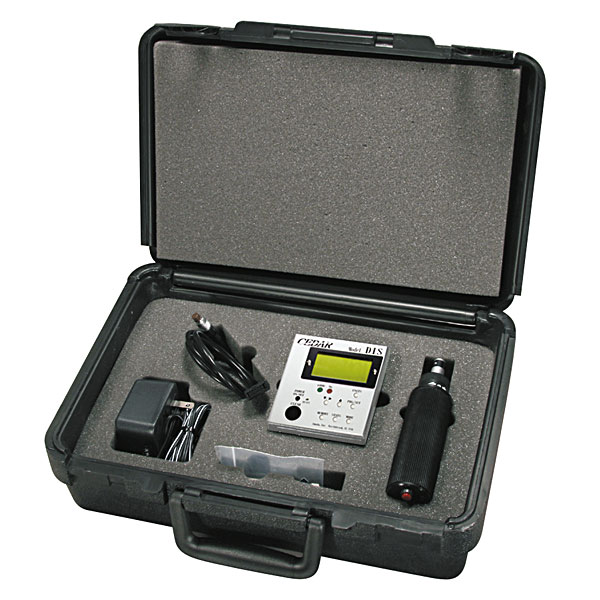

Torque Screwdriver sold as kits including carrying case, 2 Phillips tips and AC adapter/charger

Downloads

Buy Now

Item Description Price
Torque Screwdriver, 4.5 lb-in / 5 kg-cm / 50 N-cm
$1,575.00
Torque Screwdriver, 18 in-lb / 20 kg-cm / 200 N-cm
$1,120.00
Torque Screwdriver, 90 in-lb / 100 kg-cm / 1000 N-cm
$1,120.00
Accessories
ISO-17025
ISO-17025 Accredited Calibration with Certificate
$160.00
Data Acquisition Software for Torque Testers with RS-232 or USB ports
$199.00
SS-208
USB output cable (formerly CB-208)
$25.00
TBK33
33 Piece 1/4" Hex Bit Set with drive extension, 6 Torx, 5 Hex bits, 8 Phillips, 8 Pozidrive, 5 slotted bits
$15.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
