CTS Adjustable Slipping Torque Screwdriver

CTS Adjustable Torque Screwdriver
Click images to enlarge.
3 Models Ranges Available
CTS-12
: 2-12 lb-in (22 - 135 Ncm)
CTS-25: 5-25 lb-in (56 - 280 Ncm)
CTS-50: 10-50 lb-in (113 - 565 Ncm)

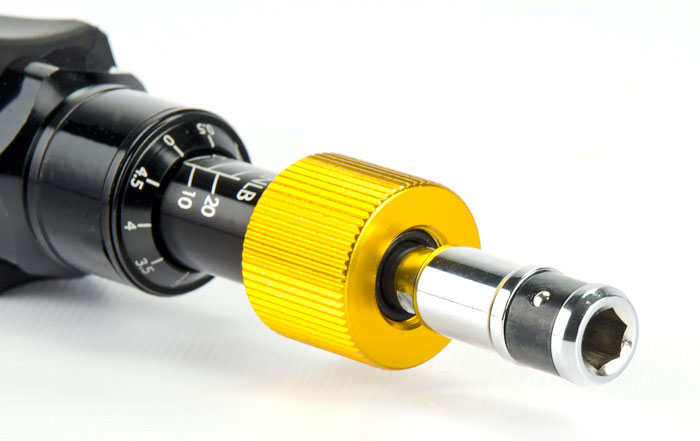

The Checkline CTS is an adjustable torque screwdriver designed for precision assembly applications. A bi-directional cam slips once the set torque is reached making over-tightening impossible.

Features

  • Includes Calibration Certificate According to DIN ISO 6789
  • DS Models are Marked in both lb-in and Ncm
  • Uses standard 1/4" (6.3mm) hex bits
  • Clockwise & Counter Clockwise
  • Ergonomic rubber grip
  • Precision radial ball clutch and cam
  • Dial Marked in Lb-in. Nm models available, inquire

Torque Ranges

ModelRangesGraduation
CTS-122-12 lb-in
22 - 135 Ncm
0.1 lb-in
CTS-255-25 lb-in
56 - 280 Ncm
0.5 lb-in
CTS-5010-50 lb-in
113 - 565 Ncm
1 lb-in

CTS Operation Guide

adjustable torque screwdriver how to use

Related Products

EMT
Adjustable Torque Screwdriver - Ergo Quickset Adjustable
TSD Digital Torque Screwdriver
Click image for more info
TSD
Digital Torque Screwdriver
- Clockwise & Counter Clockwise Torque Measurement
- 9 Programmable Target Torque Set-points
Torque Tool Tester
Click image for more info
Torque Tool Tester - AWS-QC
- Bidirectional accuracy of ± 1% of indicated reading
Mountz TLS Screwdrivers
Click image for more info
TLS
Preset Torque Screwdriver - Gedore, Mountz
- Precision radial ball clutch "slips-free" when the preset torque is reached preventing over-torquing.

Specifications

Accuracy+/-6% in accordance with ISO 6789:2003
Warranty1 Year
WeightCTS-12: 8.2 oz / 233 g
CTS-25 & CTS-50: 11.9 oz / 338 g
LengthCTS-12: 7.16 in / 182 mm
CTS-25 & CTS-50: 7.87 in / 200 mm
Handle Diameter1.41 in / 36 mm

Complete Kit

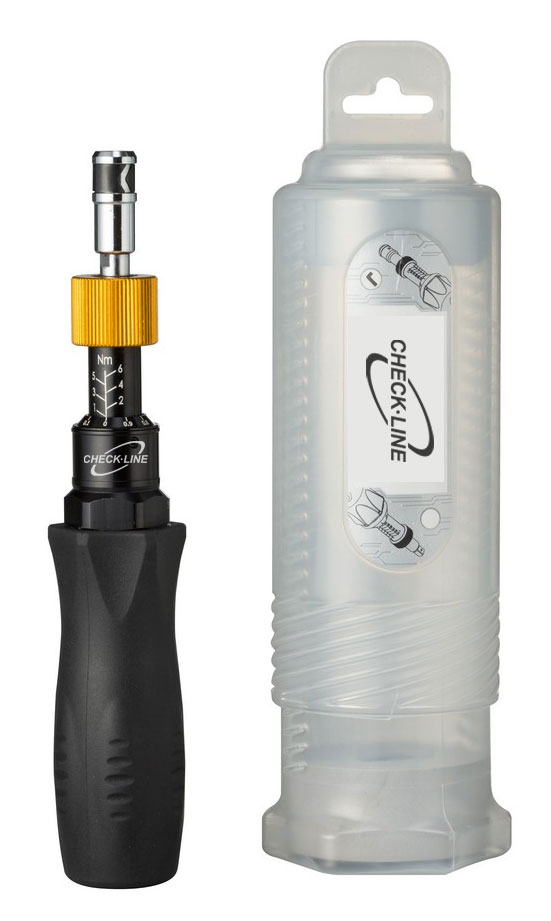

The CTS Adjustable Torque Screwdriver is supplied in a plastic tube with instruction manual and calibration certificate

Buy Now

Item Description Price
Adjustable Torque Screwdriver, 5-25 lb-in
$89.00
Adjustable Torque Screwdriver, 10-50 lb-in
$89.00
Adjustable Torque Screwdriver, 2-12 lb-in / 22 - 135 Ncm (dual marking)
$99.00
Adjustable Torque Screwdriver, 5-25 lb-in / 56 - 280 Ncm (dual marking)
$99.00
Adjustable Torque Screwdriver, 10-50 lb-in / 113 - 565 Ncm (dual marking)
$99.00
Accessories
14HEX-14SQ
1/4 In Male Hex to 1/4 Male Square Drive Adapter, 1 In Length
$5.00
TBK33
33 Piece 1/4" Hex Bit Set with drive extension, 6 Torx, 5 Hex bits, 8 Phillips, 8 Pozidrive, 5 slotted bits
$15.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
