SK-TS Torque Screwdriver with Dial Indicator

Made in USA

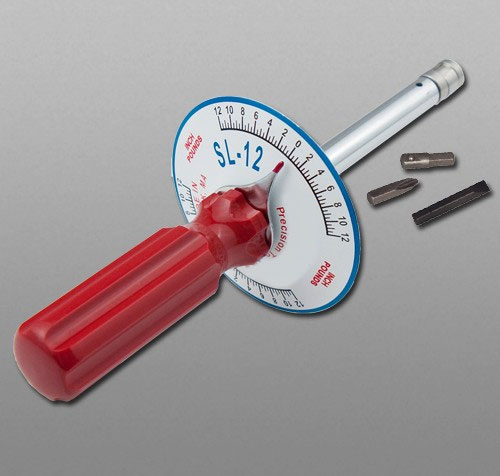

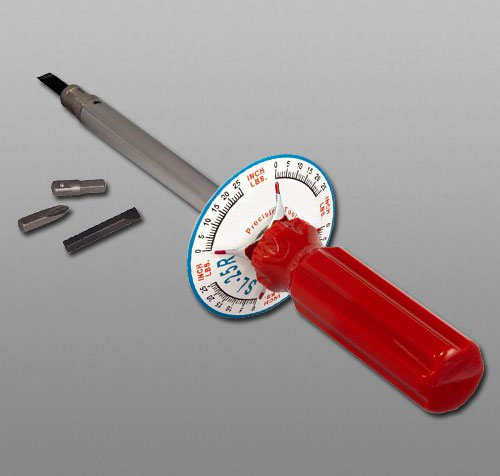

Dial Torque Screwdriver
Click images to enlarge.
Our dial torque screwdrivers are designed for precise tightening applications. The analog dial measures in inch grams, inch ounces, or inch pounds. These versatile and dependable tools feature precision thrust and lateral bearings which insure accuracy to within +/- 3%. Ideal for use in electronics, medical, communications, aircraft and automotive industries. Dials designed to minimize parallax error.

Three interchangeable bits are provided with every tool (slotted, phillips, and 1/4" square drive); which are accommodated in a standard 1/4" integral hexagonal socket. Conforms to Federal Specification MIL-W-26497B, March 6, 1969.

Halo bit, 1/8" ball hex bit also available.

All tools are manufactured in the USA and are shipped with complementary NIST certs.

Force Ranges

Model #Torque RangeDial GraduationWeightLengthDirections
GS-1700-170 in. gr.10 in. gr.8 ozs.8"Both left and right
GS-3500-350 in. gr.25 in. gr.8 ozs.8"Both left and right
S0-30-3 in. ozs..25 in. ozs8 ozs.8"Both left and right
S0-60-6 in. ozs..50 in. ozs8 ozs.8"Both left and right
S0-120-12 in. ozs..50 in. ozs.8 ozs.8"Both left and right
S0-240-24 in. ozs.1 in. ozs.8 ozs.8"Both left and right
S0-480-48 in. ozs.2 in. ozs.8 ozs.8"Both left and right
S0-960-96 in. ozs.4 in. ozs.10 ozs.8"Both left and right
SL-60-6 in. lbs..25 in. lbs.10 ozs.8"Both left and right
SL-120-12 in. lbs..50 in. lbs.10 ozs.8"Both left and right
SL-25 Left0-25 in. lbs.1 in. lbs.13 ozs.10"Left Only
SL-25 Right0-25 in. lbs.1 in. lbs.13 ozs.10"Right Only
SL-50 Left0-50 in. lbs.2 in. lbs.13 ozs.10"Left Only
SL-50 Right0-50 in. lbs.2 in. lbs.13 ozs.10"Right Only
SL-80 Left0-80 in. lbs.5 in. lbs.16 ozs.12"Left Only
SL-80 Right0-80 in. lbs.5 in. lbs.16 ozs.12"Right Only
SL-100 Left0-100 in. lbs.5 in. lbs.16 ozs.12"Left Only
SL-100 Right0-100 in. lbs.5 in. lbs.16 ozs.12"Right Only
